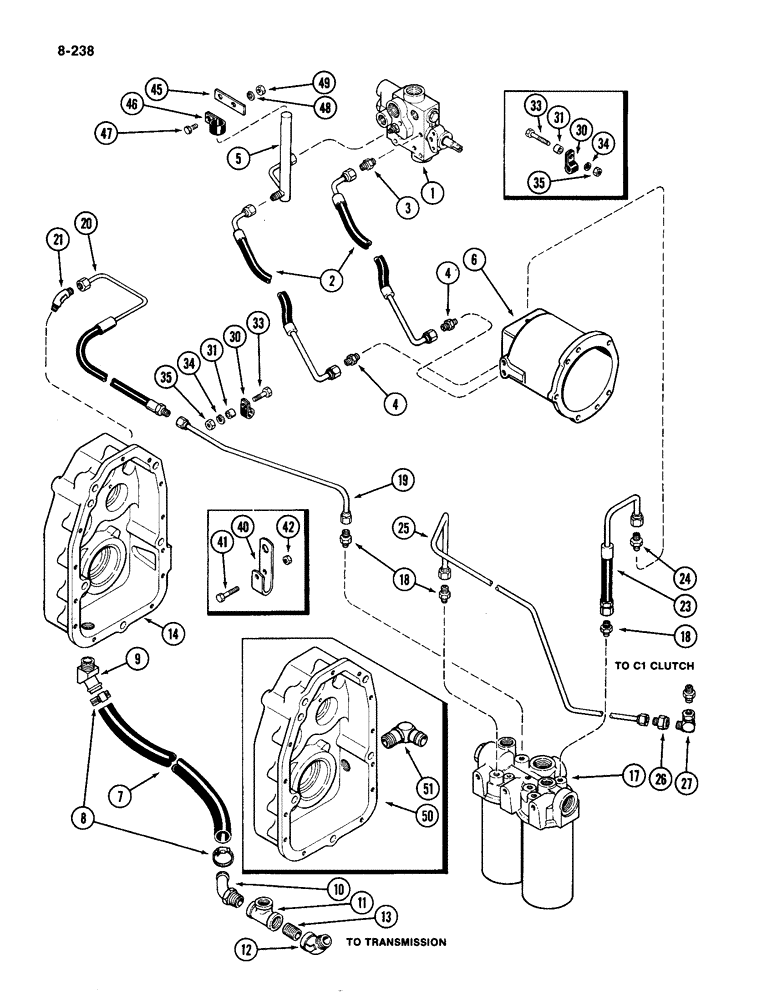

Запчасти Case IH 4490 (8-238) - PTO HYDRAULICS AND LUBE TUBES, PRIOR TO P.I.N. 8860450 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - regulator, hydraulic pressure (See Figure 8-250)

1шт.

2

A161433

FITTING

HOSE - regulator valve to PTO clutch and brake (Replaces A144863)

2шт.

3

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Straight, 3/8" tube (at valve) 9/16"-18, 37º x 1/8"-27, NPTF

2шт.

4

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - straight, 3/8" tube x 1/4" PT (at PTO clutch)

2шт.

5

A161053

TUBE

- damping, PTO clutch

1шт.

6

REF

INSTRUCTION

HOUSING - PTO clutch (See Figure 6-222)

1шт.

7

A160026

HOSE,1.00" ID x 77.00", SAE 30R2 TYPE 1 PER SAE J30

1.00" ID x 77.00", SAE30R2 - Drain, PTO drop box

1шт.

8

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

2шт.

9

217-146

ELBOW,45 Degree Elbow, 1" Hose Barb x 1" Male NPTF

- barb stem, 1" hose x 1" PT 45 degree (at drop housing)

1шт.

10

A76171

TUBE

- drain hose to transmission case

1шт.

11

221-426

FITTING,1" NPT

TEE - 1" PT

1шт.

12

221-1406

ELBOW

- street, 1" PT 45 degrees

1шт.

13

221-236

PIPE,Nipple, 1" NPT x 1 1/2"

NIPPLE - 1" PT x 1-1/2" long

1шт.

14

REF

INSTRUCTION

HOUSING ASSEMBLY - PTO drop box (P.I.N. 8854761 and after) (See Figure 6-228)

1шт.

17

REF

INSTRUCTION

FILTER ASSEMBLY - hydraulic oil (See Figure 8-252)

1шт.

18

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - straight, 3/8" tube x 1/4" PT

3шт.

19

A144866

TUBE

- lube, PTO drop box

1шт.

20

A161026

HOSE

- lube, PTO drop box

1шт.

21

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

(3/8" tube) 45º, 9/16-18" 37º x 1/4"-18, NPTF

1шт.

23

A144891

TUBE

S - lube, PTO clutch

1шт.

24

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - straight, 3/8" tube x 1/4" PT

1шт.

25

A144867

TUBE

- lube, C1 clutch

1шт.

26

218-786

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

- 1/2" tube x 3/8" tube

1шт.

27

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degrees swivel, 1/2" tube x 3/4"-16

1шт.

30

49845

CLAMP

- lube tube

4шт.

31

A76093

BUSHING

SPACER - clamp

4шт.

33

187-1300

SELF-TAP SCREW,Hex, 3/8" - 18 x 1"

SCREW - 3/8 x 1" hex taptite (C1 clutch lube tube)

2шт.

33

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

33

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

40

A140779

SUPPORT

- PTO drain hose

1шт.

41

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

1шт.

42

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - lock, 5/16" NC hex

1шт.

45

A161150

BRACKET

- clamp, damping tube

1шт.

46

R14668

CLAMP

- tube

1шт.

47

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

48

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

49

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

50

REF

INSTRUCTION

HOUSING ASSEMBLY - PTO drop box (Prior to P.I.N. 8854761) (Order A155400 from 6-228 and 217-146 fitting)

1шт.

51

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

- barb stem, 1" hose x 1" PT, 90 degree

1шт.
