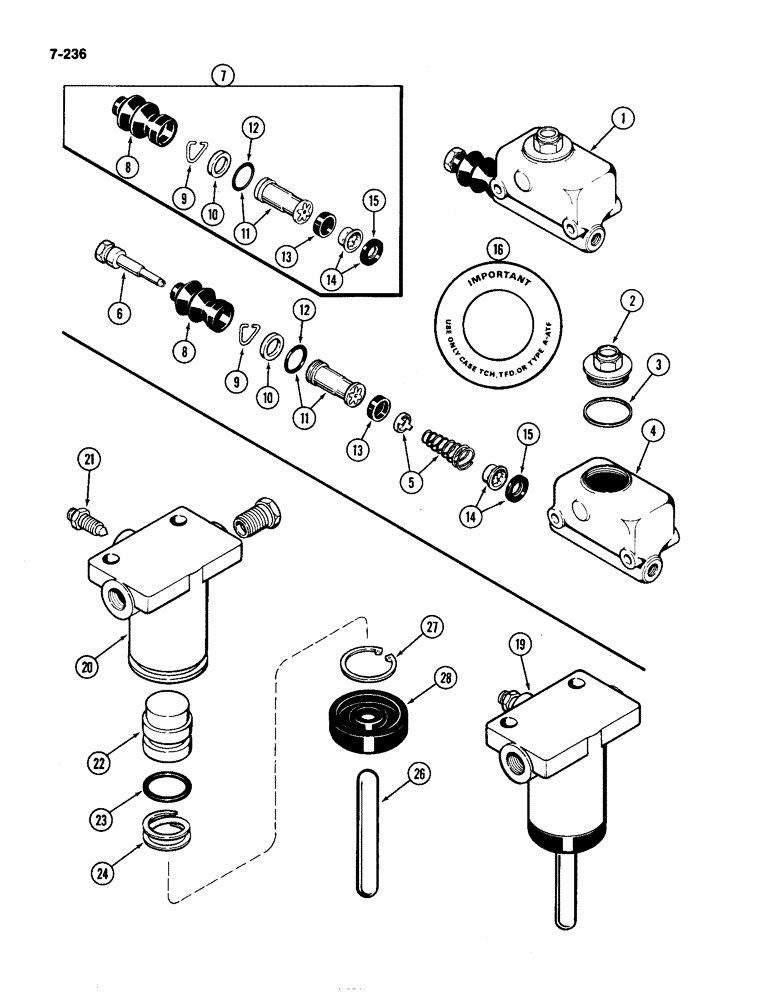

Запчасти Case IH 4490 (7-236) - BRAKE MASTER CYLINDER (07) - BRAKES

1

A59534

CYLINDER

ASSEMBLY - master, Includes: Ref. 2 - 15

1шт.

2

A19918

CAP

- filler

1шт.

3

A19755

GASKET

- cap

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order A59534)

1шт.

5

33352

SPRING

ASSEMBLY - return, piston

1шт.

6

A42371

ROD

- push

1шт.

7

U242369

TRACK SHOE

- repair, Includes: Ref. 8 - 15

1шт.

8

A42370

BOOT

COVER - dust

1шт.

9

33347

LOCKING DEVICE

WIRE - lock

1шт.

10

33348

- stop, piston

1шт.

11

NSS

NOT SOLD SEPARAT

PISTON - cylinder (Order A42370)

1шт.

12

A00-8

O-RING - piston

1шт.

13

A42368

CUP ASSY.

CUP - primary

1шт.

14

A47245

VALVE

- check

1шт.

15

A47246

VALVE

SEAT - check valve

1шт.

16

A61114

DECAL

TAG - fluid warning

1шт.

10

A62483

CYLINDER

ASSEMBLY - slave, brake, Includes: Ref. 20 - 28

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - slave cylinder (Order A62483)

1шт.

21

A41491

BLEEDER,1/4" - 28 x 23.37mm

BLEEDER - brake

1шт.

22

A569

PISTON ASSEMBLY - cylinder, Includes: Ref. 23 and 24

1шт.

23

F6211

O-RING - piston

1шт.

Part of repair kit, P/N A42258

1шт.

24

A42252

SEALING RING

RING - back-up

1шт.

Part of repair kit, P/N A42258

1шт.

26

A42254

ROD

- push

1шт.

Part of repair kit, P/N A42258

1шт.

27

A42256

SNAP RING,0.901", Int, #90

1шт.

Part of repair kit, P/N A42258

1шт.

28

A42255

BOOT

COVER - dust

1шт.

Part of repair kit, P/N A42258

1шт.

A42258

KIT

- repair, brake cylinder slave, Includes: Refs. 23 through 28

1шт.
