Запчасти Case IH 4490 (1-014) - PICTORIAL INDEX, HITCH HYDRAULICS (00) - PICTORIAL INDEX

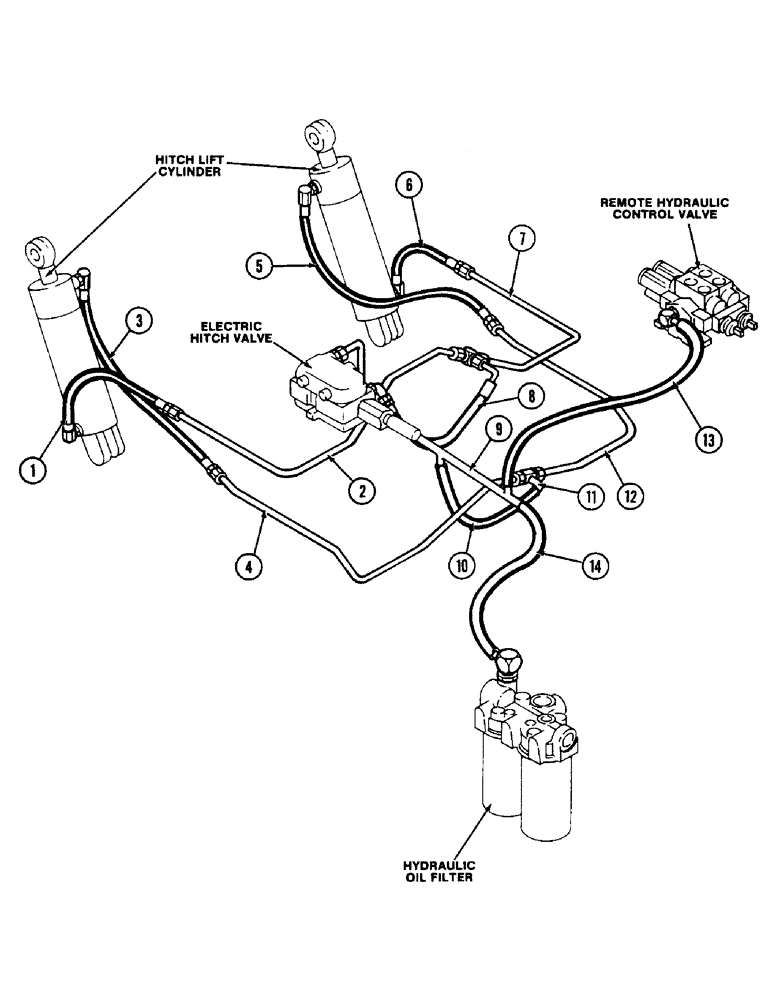

Схема запчастей Case IH 4490 - (1-014) - PICTORIAL INDEX, HITCH HYDRAULICS (00) - PICTORIAL INDEX
2
13
10
5
12
3
11
1
14
6
9
4
7
8

Артикул

Название

Примечание

Количество

1

Hitch Cylinder Hose, Pages 8-313, 315

1шт.

2

Right Hand Lift Cylinder Pressure Tube, Pages 8-313, 315

1шт.

3

Hitch Cylinder Hose, Pages 8-313, 315

1шт.

4

Right Hand Return Tube, Pages 8-313, 315

1шт.

5

Hitch Cylinder Hose, Pages 8-313, 315

1шт.

6

Hitch Cylinder Hose, Pages 8-313, 315

1шт.

7

Left Hand Lift Cylinder Pressure Tube, Pages 8-313, 315

1шт.

8

Hitch Valve Pressure Hose, Page 8-315

1шт.

9

Hitch Vale Drain Tube, Page 8-281

1шт.

10

Drain Hose, Page 8-315

1шт.

11

Return Junction Tube, Page 8-315

1шт.

12

Left Hand Return Tube, Page 8-313, 315

1шт.

13

Remote Valve to Fiter Hose, Page 8-281

1шт.

14

Drain Tube to Filter Hose, Page 8-281

1шт.

Выбрано товаров: 14
