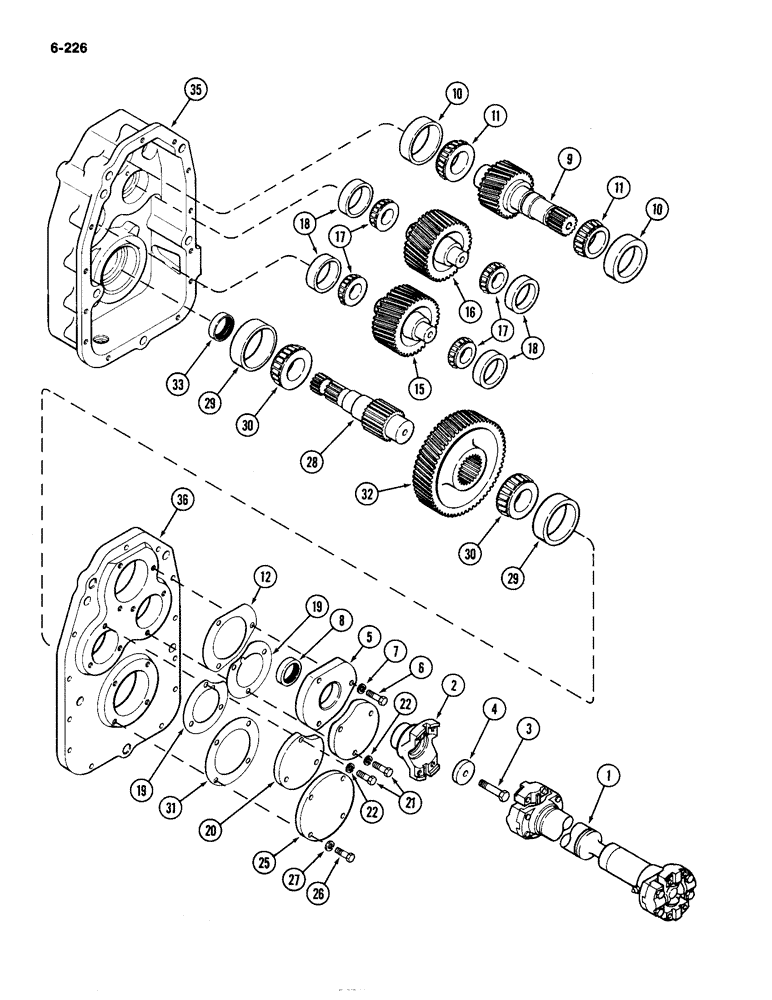

Запчасти Case IH 4490 (6-226) - PTO DROP BOX, INPUT, OUTPUT AND IDLERS (06) - POWER TRAIN

1

REF

INSTRUCTION

SHAFT ASSEMBLY - PTO drive (See Figure 6-224)

1шт.

2

A75204

YOKE

- input shaft

1шт.

3

113-2436

BOLT,Locking, 1/2" - 13 x 2-1/4", Gr 5

- lock, 1/2 x 2-1/4" NC hex (Grade 5)

1шт.

4

A75206

WASHER,13.5mm ID x 50.8mm OD x 9.53mm Thk

- yoke

1шт.

5

A138440

COVER

- bearing, input shaft

1шт.

6

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

7

92-6

LOCK WASHER,3/8"

3шт.

8

H749218

OIL SEAL,44.45mm ID x 63.65mm OD x 7.95mm Thk

- oil, input shaft (Replaces A55708)

1шт.

9

A138443

SHAFT

- pinion, PTO input

1шт.

10

A138433

BEARING CUP

CUP - bearing, input shaft, 3-3/4" (95.25 mm) OD

2шт.

11

A138432

ROLLER BEARING,1.906" ID x 1.1563"

CONE - bearing, input shaft, 1-29/32" (48.42 mm) ID

2шт.

12

A138442

SHIM,.005" Thk

Bearing cover (0.127 mm) .005" Thk

1шт.

12

A138441

SHIM,.007" Thk

Bearing cover (0.177 mm) .007" Thk

1шт.

15

A138445

GEAR

- idler LH, 5-5/16" (137.94 mm) OD

1шт.

16

A138446

GEAR

- idler RH, 5-17/64" (133.75 mm) OD

1шт.

17

A138431

ROLLER BEARING,1.4062" ID x 1"

CONE - bearing, idler gear, 1-13/32" (35.72 mm) ID

4шт.

18

H753525

CUP

- bearing, idler gear, 2-27/32" (46.83 mm) OD

4шт.

19

A138439

SHIM,.005" Thk

Bearing cover (0.127 mm) .005" Thk

1шт.

19

A138438

SHIM,.007" Thk

Bearing cover (0.177 mm) .007" Thk

1шт.

20

A138437

COVER

- bearing, idler gear

2шт.

21

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

6шт.

22

92-6

LOCK WASHER,3/8"

6шт.

25

A138434

BEARING COVER,3.56" ID x 6.12" OD x 0.5"

COVER - bearing, output shaft

1шт.

26

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

27

92-6

LOCK WASHER,3/8"

4шт.

39

A153058

SHAFT

- output

1шт.

29

A75218

BEARING CUP,4.1339" OD x 1.1417"

CUP - bearing, output shaft, 4-1/8" (104.77 mm) OD

2шт.

30

A75219

ROLLER BEARING,1.9685" ID x 1.4173"

CONE - bearing, output shaft, 1-31/32" (50.01 mm) ID

2шт.

31

A138435

SHIM,.005" Thk

Bearing cover (0.127 mm) .005" Thk

1шт.

31

A138436

SHIM,.007" Thk

Bearing cover (0.177 mm) .007" Thk

1шт.

32

A138447

GEAR

- output shaft

1шт.

33

H749218

OIL SEAL,44.45mm ID x 63.65mm OD x 7.95mm Thk

- oil, output shaft (Replaces A55708)

1шт.

35

NSS

NOT SOLD SEPARAT

HOUSING - PTO drop box (See Figure 6-228)

1шт.

36

NSS

NOT SOLD SEPARAT

COVER - housing (See Figure 6-228)

1шт.
