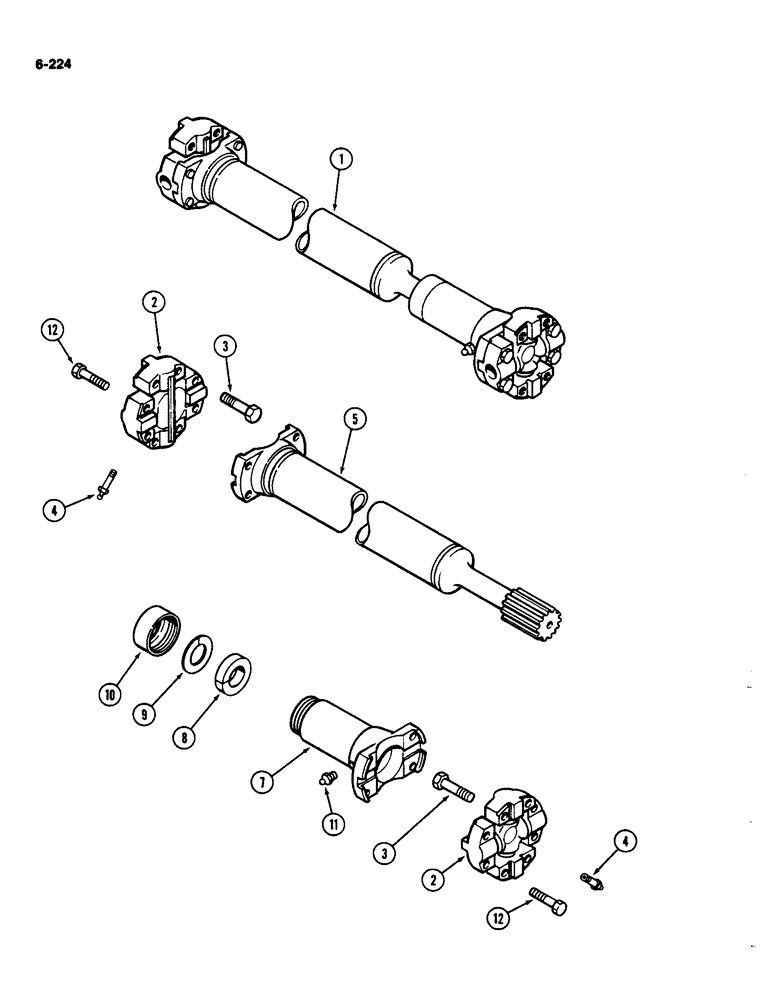

Запчасти Case IH 4490 (6-224) - PTO DRIVE SHAFT ASSEMBLY (06) - POWER TRAIN

1

A148812

SHAFT

ASSEMBLY - PTO drive, Includes: Ref. 2 - 11

1шт.

2

A45595

SPIDER ,U-JOINT

U-JOINT KIT - universal, Includes: Ref. 3 and 4

2шт.

3

A17298

BOLT,Hex, 3/8" x 1 11/16"

SCREW - cap, 3/8 x 1-11/16" NF hex head

8шт.

4

219-417

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - lube, 1/4"-28 x 1-1/2" long

1шт.

5

A47522

SHAFT

TUBE - drive shaft

1шт.

A47519

YOKE

ASSEMBLY - slip, Includes: Ref. 7 - 11

1шт.

7

NSS

NOT SOLD SEPARAT

YOKE - slip (Order A47519)

1шт.

8

A18390

WASHER

SEAL - felt

1шт.

9

A47521

WASHER

- seal retainer

1шт.

10

A18388

CAP

- retainer

1шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

12

A17298

BOLT,Hex, 3/8" x 1 11/16"

SCREW - cap, 3/8 x 1-11/16" NF hex head

8шт.
