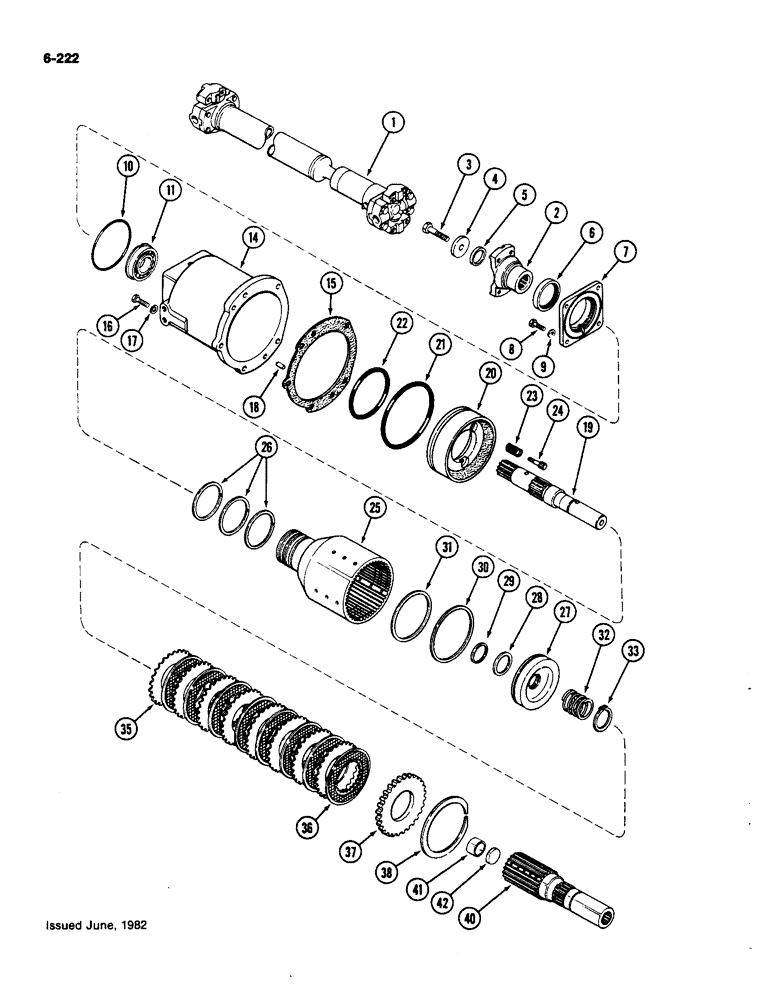

Запчасти Case IH 4490 (6-222) - PTO CLUTCH AND SHAFTS (06) - POWER TRAIN

1

REF

INSTRUCTION

SHAFT ASSEMBLY - PTO drive (See Figure 6-224)

1шт.

2

A75204

YOKE

- drive shaft

1шт.

3

113-2436

BOLT,Locking, 1/2" - 13 x 2-1/4", Gr 5

- lock, 1/2 x 2-1/4" NC hex (Grade 5)

1шт.

4

A75206

WASHER,13.5mm ID x 50.8mm OD x 9.53mm Thk

- yoke

1шт.

5

A75205

SEALING WASHER

- yoke

1шт.

6

A76014

OIL SEAL

- oil, output shaft

1шт.

7

A152916

BEARING CAP

CAP - bearing

1шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

9

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- bearing cap

4шт.

10

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- bearing cap

1шт.

11

G13606

BALL BEARING

BEARING - output shaft

1шт.

14

A144126

HOUSING

- PTO clutch

1шт.

15

A153699

GASKET

- clutch housing to drive housing

1шт.

16

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

5шт.

17

92-6

LOCK WASHER,3/8"

5шт.

18

A8134

PIN

DOWEL - clutch housing

2шт.

19

A138523

SHAFT

- output, PTO

1шт.

20

A148391

PISTON

ASSEMBLY - PTO brake (Includes lining)

1шт.

21

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

- outer, piston

1шт.

22

238-5248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

- inner, piston

1шт.

23

A155605

SPRING

- return, brake piston (Replaces A77280)

3шт.

24

166-1005

12 PT SCREW,Lock, Flg, 3/8" - 16 x 2", Gr 8

SCREW - lock, 3/8 x 2" 12 point

3шт.

25

A144127

CARRIER

- PTO clutch

1шт.

26

A58384

RING

- seal, carrier

3шт.

27

A155962

PISTON

- PTO, clutch (Replaces A67155)

1шт.

28

A63258

SEAL

- internal, brake piston

1шт.

29

A155964

O-RING,1.812" ID x 0.073" Thk

SEAL - internal, clutch piston (Replaces A63259 spring seal)

1шт.

30

A50625

SEALING RING,130.02mm ID x 137.64mm OD x 2.49mm Thk

SEAL - external brake piston

1шт.

31

A155963

SEAL

- external, clutch piston (Replaces G102094)

1шт.

32

A63260

SPRING

- piston return, 1-3/4" (44.45 mm) free length

1шт.

33

T37909

SNAP RING,#150, Ext

Ring, Snap, , return spring #150, Ext

1шт.

35

A67156

PLATE

- steel, PTO clutch

8шт.

36

A67130

PLATE

- friction, PTO clutch

8шт.

37

A50643

PLATE

- back, PTO clutch

1шт.

38

A50639

RING

- snap, back plate

1шт.

40

A156124

SHAFT

- PTO and hydraulic pump drive

1шт.

41

A138866

BUSHING

- input shaft

1шт.

42

41-1024

PLUG,Cup, 1 1/2"

- cup, 1-1/2" diameter (38.1 mm)

1шт.
