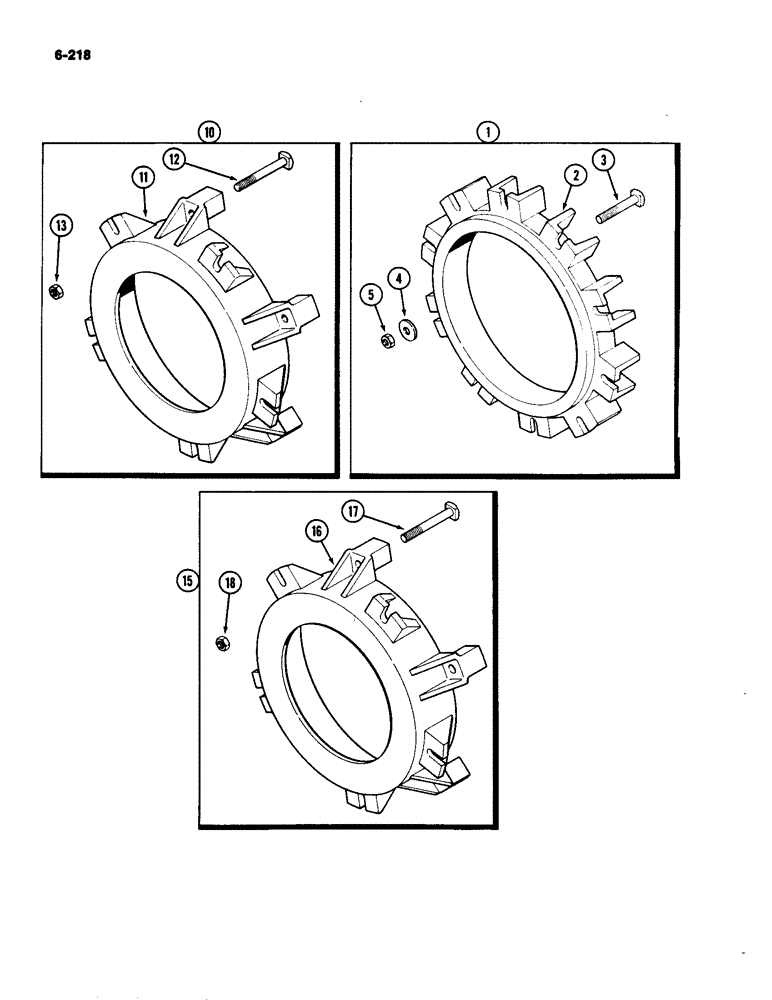

Запчасти Case IH 4490 (6-218) - WHEEL WEIGHTS (06) - POWER TRAIN

1

A75939

ATTACHMENT - wheel weight (Machine Item), Includes: Ref. 2 - 5

2шт.

2

A75550

WEIGHT - 100 pounds (45.389 kg)(Machine Item)

2шт.

3

117-606

BOLT,Sq Hd, 3/4" - 10 x 4-1/2", Gr 5

- 3/4 x 4-1/2" NC square head

10шт.

4

195-109

WASHER,3/4"

- 13/16 x 2 x 3/16" (20.6 x 50.8 x 4.8 mm)

10шт.

5

129-108

NUT,3/4"-10, G5

10шт.

10

A75938

ATTACHMENT - weight adapter for 30 or 34" wheels (Machine Item), Includes: Ref. 11 - 13

2шт.

11

A75549

ADAPTER - 100 pounds (45.389 kg)

2шт.

12

117-607

BOLT,Sq Hd, 3/4" - 10 x 6", Gr 5

- 3/4 x 6" NC square head

10шт.

13

129-108

NUT,3/4"-10, G5

10шт.

15

A77117

ATTACHMENT - weight adapter for 32" wheels (Machine Item), Includes: Ref. 16 - 18

2шт.

16

A75549

ADAPTER - 100 pounds (45.389 kg)

2шт.

17

117-610

BOLT - 3/4 x 8" NC square head Sq Hd, 3/4"-10 x 8", G5

10шт.

18

129-108

NUT,3/4"-10, G5

10шт.
