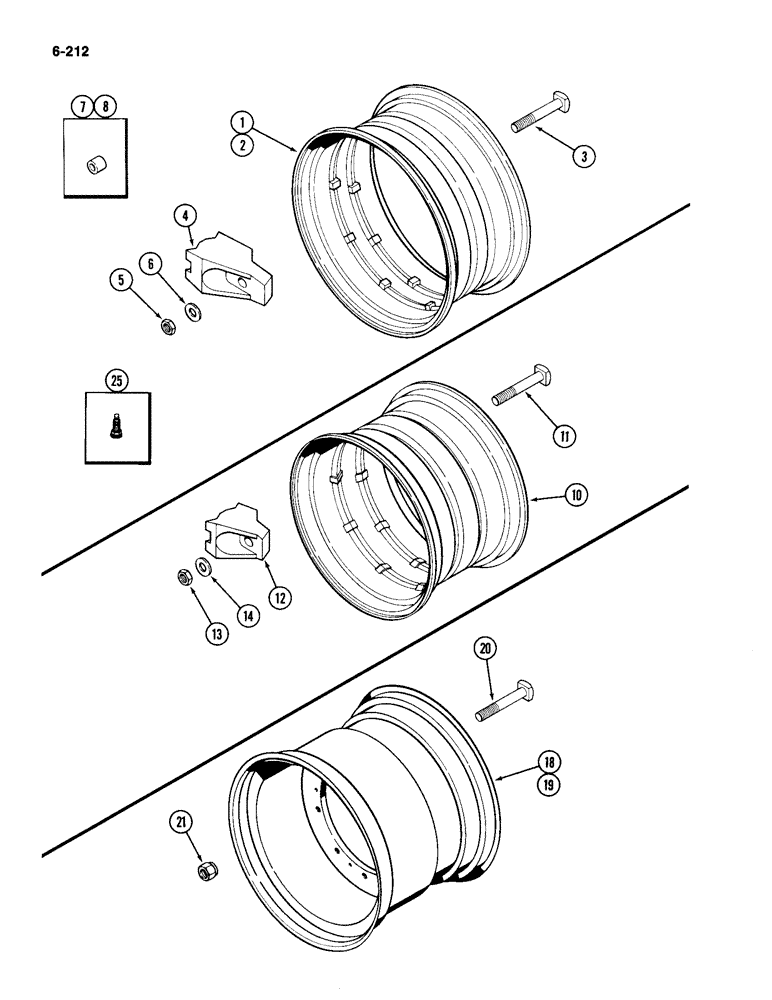

Запчасти Case IH 4490 (6-212) - WHEEL RIMS AND CLAMPS (06) - POWER TRAIN

1

A160132

RIM

WHEEL Wheel, 18.4 x 38" tire (467.36 x 965.2 mm)

4шт.

1

A75887

WHEEL

RIM, 18.4 x 34" tire (467.36 x 863.6 mm)

4шт.

2

A75891

RIM

WHEEL Wheel, 20.8 x 34" tire (528.32 x 863.6 mm)

4шт.

2

A147805

WHEEL

SPARE PART RIM, 23.1 x 34" tire (586.74 x 863.6 mm)

4шт.

2

A160133

RIM

WHEEL Wheel, 20.8 x 38" tire (528.3 x 965.2 mm)

4шт.

3

A160853

SQUARE BOLT

Clamp (3/4 x 5-1/4" NC square head)

40шт.

4

A139724

CLAMP

Rim, double position

40шт.

5

129-137

NUT,3/4"-10, G5

40шт.

6

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

Clamp bolt (Replaces A141125 and A161150)

40шт.

7

A161212

SPACER

Rear stop bolt (when using 23.1 x 34" tire) 57/34" (22.6 mm)

2шт.

8

A140011

BUSHING

SPACER - front stop bolt (when using 23.1 x 34" tire) 21/64" (8.3 mm)

2шт.

10

A75890

RIM

WHEEL Wheel, 23.1 x 30" tire (586.74 x 767.0 mm)

4шт.

11

A160853

SQUARE BOLT

Clamp (3/4 x 5-1/4" NC square head)

40шт.

12

A75894

CLAMP

Rim, double position

40шт.

13

129-137

NUT,3/4"-10, G5

40шт.

14

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

Clamp bolt (Replaces A141125)

40шт.

18

A77115

NO LONGER SERVICED

WHEEL - 24.5 x 32" tire (622.30 x 812.8 mm), single

4шт.

19

A148139

WHEEL

30.5 x 32" tire (779.70 x 812.8 mm), single

4шт.

20

117-614

SQUARE BOLT,3/4" - 10 x 4", Gr 5

3/4 x 3-3/4" NC square head, single wheels

40шт.

21

A160864

WHEEL NUT

Wheel (3/4" NC hex), single

40шт.

25

A20058

VALVE STEM

Air, tubeless tire, single wheels

1шт.
