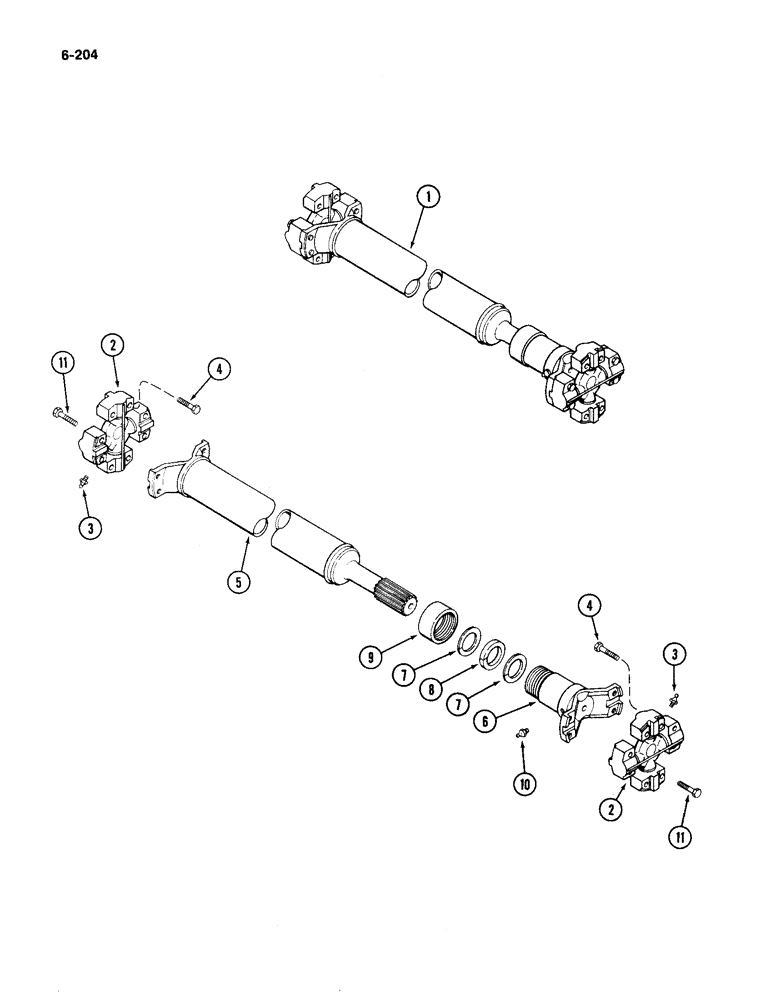

Запчасти Case IH 4490 (6-204) - REAR AXLE DRIVE SHAFT (06) - POWER TRAIN

1

A151587

SHAFT

ASSEMBLY - drive, rear axle, Includes: Ref. 2 - 11

1шт.

2

D80329

JOINT

U-JOINT KIT - drive shaft, Includes: Ref. 3 and 4

2шт.

3

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - lube, 1/4"-28 straight

1шт.

4

A17298

BOLT,Hex, 3/8" x 1 11/16"

SCREW - cap, 3/8 x 1-11/16" NF hex

8шт.

5

A47528

TUBE

- drive shaft, yoke

1шт.

D73676

YOKE

ASSEMBLY - slip, Includes: Ref. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

YOKE - slip (Order D73676)

1шт.

7

D73712

WASHER

- retainer, felt seal

2шт.

8

D73711

FELT SEAL

- felt

1шт.

9

A19923

CAP

- seal

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" PT straight

1шт.

11

A17298

BOLT,Hex, 3/8" x 1 11/16"

SCREW - cap, 3/8 x 1-11/16" NF hex

8шт.
