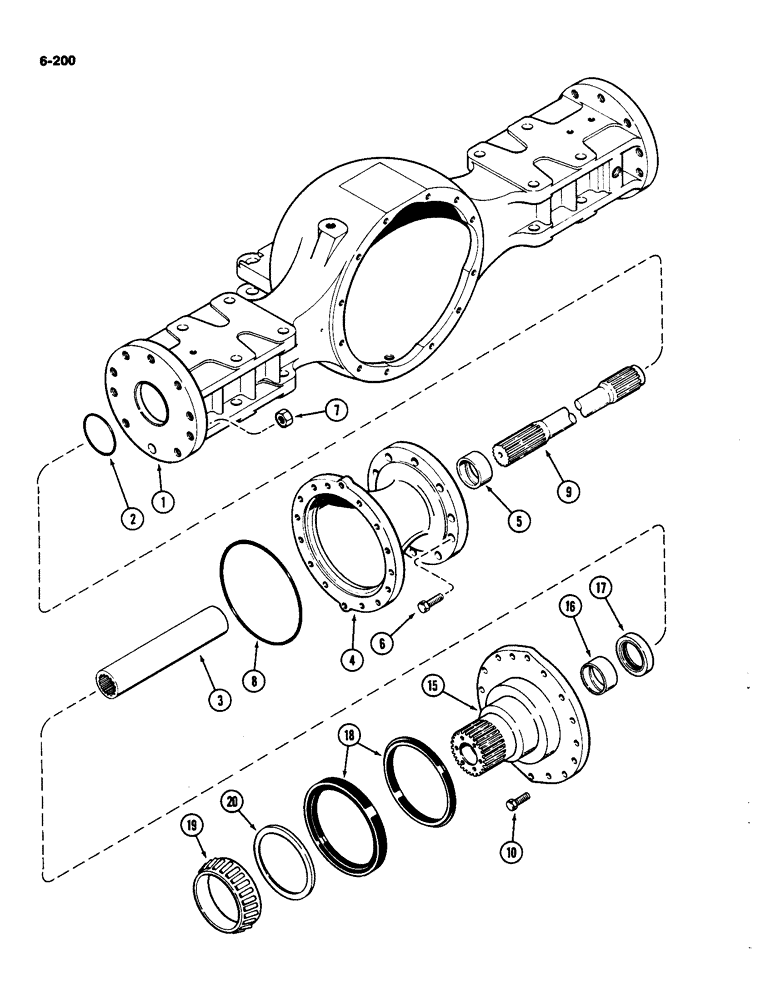

Запчасти Case IH 4490 (6-200) - REAR AXLE AND DIFFERENTIAL ASSEMBLY, RIGID AXLE AND EXTENSION (06) - POWER TRAIN

1

REF

INSTRUCTION

HOUSING - axle (See Figure 6-194)

1шт.

2

A21301

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

- extension

2шт.

3

A75241

COUPLING

- axle shaft

2шт.

4

A75237

HOUSING

ASSEMBLY - extension, Includes: Ref. 5

2шт.

5

A75234

BUSHING

- coupling

1шт.

6

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

18шт.

6

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- 3/4 x 2-3/4" NC hex (Grade 8)(bottom hole)

2шт.

7

25-1612

NUT,3/4"-10, G5, Hvy

- 3/4" NC hex (bottom bolt)

2шт.

8

A75474

O-RING,0.139" Thk x 9.484" ID, -272, Cl 5, 75 Duro

- spindle

2шт.

9

A75243

SHAFT

- axle, 28-5/8" (727.07 mm) long

2шт.

9

A75242

SHAFT

- axle, 32-1/2" (825.5 mm) long

2шт.

10

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

32шт.

15

A152503

SPINDLE

ASSEMBLY - wheel, Includes: Ref. 16 - 20

2шт.

16

A75234

BUSHING

- universal joint, 2-11/16" OD x 1-1/2" wide (62.26 x 38.1 mm)

1шт.

17

A153036

OIL SEAL

- oil, axle

1шт.

18

A76272

OIL SEAL,174.22mm ID x 219.53mm OD x 20.95mm Thk

ASSEMBLY - oil, spindle

1шт.

19

L31699

TAPERED BEARING

CONE - bearing, 5" (127.0 mm) ID

1шт.

20

A75256

RING

- back-up, bearing

1шт.
