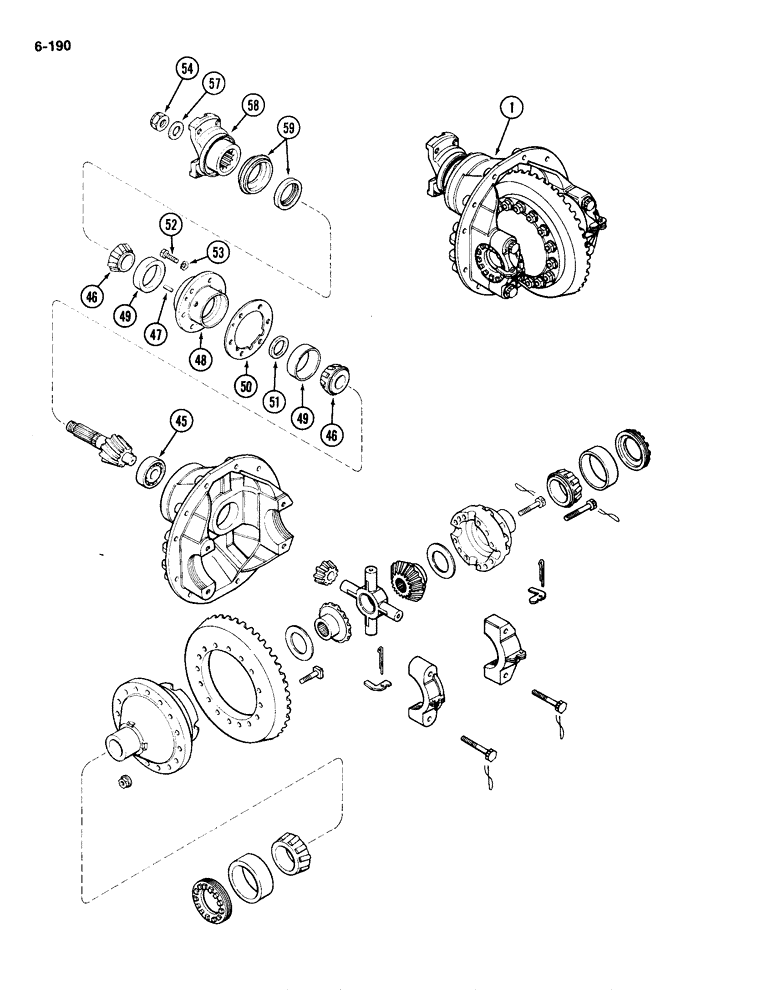

Запчасти Case IH 4490 (6-190) - FRONT AXLE DIFFERENTIAL AND CARRIER (06) - POWER TRAIN

1

A153676

CARRIER

ASSEMBLY - differential, front axle (Continued from Figure 6-188), Includes: Ref. 45 - 59 ad 3 - 41 on Figure 6-188

1шт.

45

L33062

ROLLER BEARING

BEARING - roller, drive pinion

1шт.

46

A44210

ROLLER BEARING,1.75" ID x 1.25"

CONE - bearing, pinion shaft, 1-3/4" (44.45 mm) ID

2шт.

A44230

CAGE ASSY.,4.250" OD

CASE ASSEMBLY - pinion bearing, Includes: Ref. 47 - 49

1шт.

47

A45631

PIN

- guide

1шт.

48

NSS

NOT SOLD SEPARAT

CAGE - bearing (Order A44230)

1шт.

49

F61284

BEARING CUP

CUP - bearing, pinion shaft, 3-3/4" (95.25 mm) OD

2шт.

50

A44232

SHIM,.003" Thk

Bearing cage (0.0762 mm) .003" Thk

1шт.

50

A44233

SHIM,.005" Thk

Bearing cage (0.127 mm) .005" Thk

1шт.

50

A44235

SHIM,.020" Thk

Bearing cage (0.508 mm) .020" Thk

1шт.

51

A45587

BUSHING

SPACER - pinion bearing, 0.514" (13.0556 mm)

1шт.

51

A45588

BUSHING

SPACER - pinion bearing, 0.522" (13.2588 mm)

1шт.

51

A45589

BUSHING

SPACER - pinion bearing, 0.530" (13.4620 mm)

1шт.

51

A45590

BUSHING

SPACER - pinion bearing, 0.538" (13.6652 mm)

1шт.

51

A45591

BUSHING

SPACER - pinion bearing, 0.542" (13.7668 mm)

1шт.

52

A44212

BOLT

- bearing cage

6шт.

53

173-33

WASHER - lock, 9/16" external shakeproof

6шт.

54

A45567

NUT

- yoke to pinion shaft

1шт.

57

A44209

WASHER

- yoke to pinion shaft

1шт.

58

A47568

YOKE

- drive shaft

1шт.

REF: 58 ECN C971234 IS RELEASING A 6C YOKE ASSY TO REPLACE A47568 YOKE. CUSTOMER WILL ALSO NEED NEW METRIC HWD. PARTS AS FOLLOWS: 317788A1 6 C YOKE WITH MUD SLING 253863A1 PINION GEAR SET 253988A1 PINION SHAFT WASHER AND 258056A1 DIFF PIN BEARING.

1шт.

59

A47594

OIL SEAL

ASSEMBLY - oil, pinion shaft

1шт.
