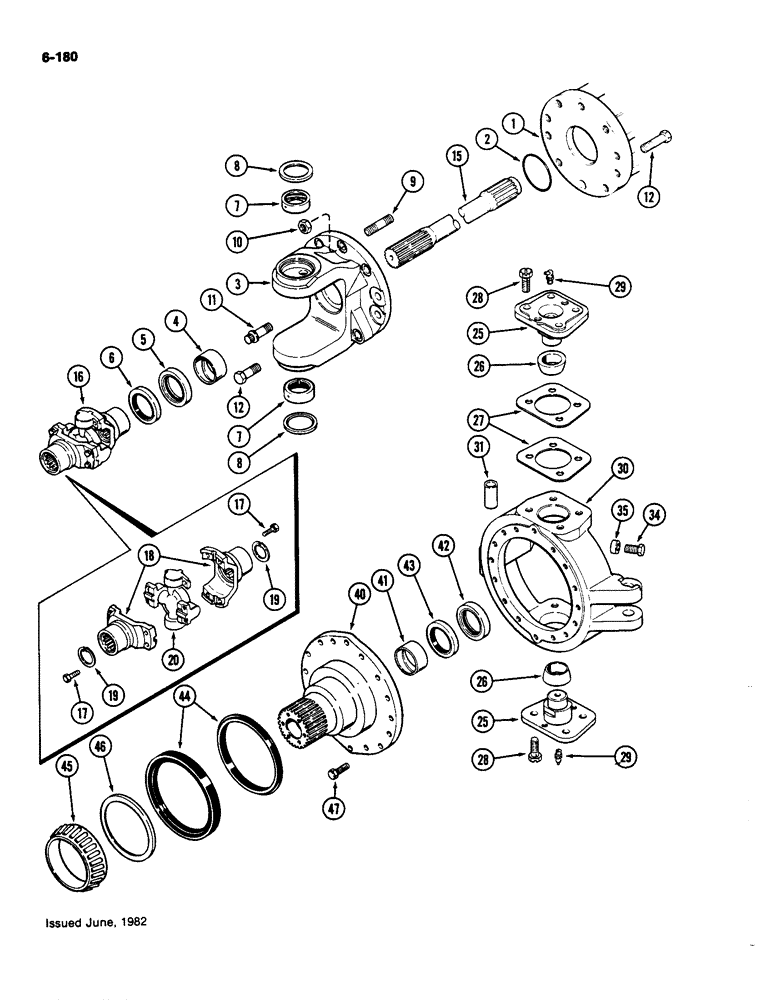

Запчасти Case IH 4490 (6-180) - FRONT AXLE AND DIFFERENTIAL ASSEMBLY, RIGHT HAND TRUNNION AND SPINDLE (06) - POWER TRAIN

1

REF

INSTRUCTION

HOUSING - axle (See Figure 6-178)

1шт.

2

A21301

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

- 3-5/8 ID x 1/8" width (92.07 ID x 3.17 mm width)

1шт.

3

A151030

AXLE

TRUNNION ASSEMBLY - axle, Includes: Ref. 4 - 8

1шт.

4

A75234

BUSHING

- universal joint, 2-11/16" OD x 1-1/2" wide (68.26 x 28.1 mm)

1шт.

5

A168810

OIL SEAL,61.4mm ID x 89.31mm OD x 16mm Thk

- oil, 2-1/2 x 3-1/2 x 3/8" (63.5 x 88.9 x 9.52 mm) (replaces A157317)

1шт.

6

A168810

OIL SEAL,61.4mm ID x 89.31mm OD x 16mm Thk

- oil 2-1/2 x 3-1/2 x 1/4" (63.5 x 88.9 x 6.35 mm) (replaces)

1шт.

7

A76570

BEARING WASHER,1.75" ID x 2.8122" OD x 1.07"

RING - bearing, king pin

2шт.

8

A142970

SEAL,63.88mm ID x 73.18mm OD x mm Thk

- grease, king pin

2шт.

9

A77281

STUD

- trunnion to axle housing (3/4" NC x 2-7/8")

1шт.

10

10-1612

NUT - 3/4" NC hex

1шт.

11

166-134

12 PT SCREW,Flg, 3/4" - 10 x 2", Gr 8

BOLT - 3/4 x 2" NC 12 point head (Grade 8)

2шт.

11

166-139

12 PT SCREW,Flg, 3/4" - 10 x 3 1/4", Gr 8

BOLT - 3/4 x 3-1/4" NC 12 point head (Grade 8)

2шт.

12

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

4шт.

12

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- 3/4 x 2-1/2" NC hex head (Grade 8)

1шт.

15

A75242

SHAFT

- axle, 32-1/2" (825.5 mm) long

1шт.

16

A75275

JOINT

ASSEMBLY - universal, Includes: Ref. 17 - 20

1шт.

17

A12870

BOLT,Hex, 7/16" - 20 x 1 1/16"

- U joint to slip yoke

8шт.

18

A44175

YOKE

- slip

2шт.

19

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, 1.812", Int, #181

2шт.

20

D50866

SPIDER,49.28mm Cap Dia, 117.35mm L, Grease-able

U-JOINT - universal (Includes bearings)

1шт.

25

A152640

PIN

ASSEMBLY - king, upper and lower

2шт.

26

A76576

BEARING WASHER,44.44mm ID x 63.88mm OD x 24.89mm Thk

RING - bearing

1шт.

27

A136186

SHIM,82.96mm ID x 126.75mm OD x 0.13mm Thk

King pin (0.1270 mm) .005" Thk

1шт.

27

A136187

SHIM,82.96mm ID x 126.75mm OD x 0.38mm Thk

King pin (0.381 mm) .015" Thk

1шт.

28

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- 5/8 x 1-3/4" NC hex (Grade 8)

8шт.

28

219-3

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" PT straight

2шт.

30

A152652

HOUSING

ASSEMBLY - spindle, RH front, Includes: Ref. 31

1шт.

31

A75239

BUSHING,22.28mm ID x 28.66mm OD x 56.34mm L

- tie rod pivot bolt

1шт.

34

26-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- stop, 5/8 x 1-1/2" NC lock (Grade 8)

1шт.

35

A140006

BUSHING

SPACER - 21/32 x 1 x 11/16" (16.67 x 25.4 x 17.46 mm)

1шт.

40

A152503

SPINDLE

ASSEMBLY - wheel, Includes: Ref. 41 - 46

1шт.

41

A75234

BUSHING

- universal joint, 2-11/16 OD x 1-1/2" wide (68.26 x 28.1 mm)

1шт.

42

A168810

OIL SEAL,61.4mm ID x 89.31mm OD x 16mm Thk

- oil, universal joint, 2-1/2 x 3-1/2 x 3/8" (63.5 x 88.9 x 9.52 mm) (replaces A157317)

1шт.

43

A168810

OIL SEAL,61.4mm ID x 89.31mm OD x 16mm Thk

- oil, 2-1/2 x 3-1/2 x 1/4" (63.5 x 88.9 x 6.35 mm) (replaces A156927)

1шт.

44

A76272

OIL SEAL,174.22mm ID x 219.53mm OD x 20.95mm Thk

- oil

1шт.

45

L31699

TAPERED BEARING

CONE - bearing, wheel

1шт.

46

A75256

RING

- back-up

1шт.

47

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

14шт.

47

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.
