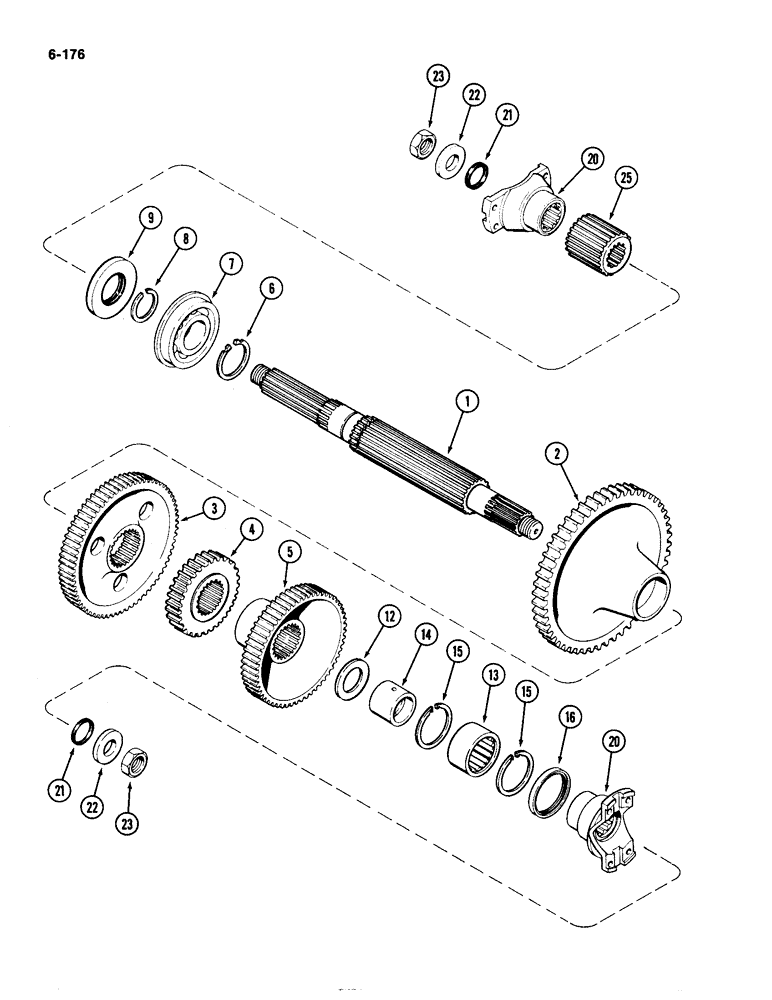

Запчасти Case IH 4490 (6-176) - TRANSMISSION OUTPUT SHAFT (06) - POWER TRAIN

1

A152337

SHAFT

- output

1шт.

2

A75143

GEAR

- 1st driven, 76 teeth

1шт.

3

A75142

GEAR

- 2nd driven, 65 teeth

1шт.

4

A155291

GEAR

- 4th driven, 39 teeth (Used transmission) Serial No. 10228563 and after)

1шт.

4

A152211

GEAR

- fourth driven (Used prior to transmission Serial No. 10228563)(Order A155291)

1шт.

5

A75140

GEAR

- 3rd driven, 55 teeth

1шт.

6

A152350

RING

- snap, 1st gear

1шт.

7

A58098

BALL BEARING,1.9685" ID x 4.58" OD x 1.063"

BEARING - rear, 1-1/32 x 4-11/32 x 1-1/16" wide (50.0 x 110.33 x 26.9 mm)

1шт.

8

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap, rear bearing

1шт.

9

A152352

OIL SEAL

- oil, brake housing

1шт.

12

A152341

WASHER

- thrust, front bearing

1шт.

13

H748087

NEEDLE BEARING,Needle, 63.78mm ID x 76.2mm OD x 38.1mm W

BEARING - front, 2-1/4 x 3 x 1-1/2" wide (57.15 x 76.2 x 38.1 mm)

1шт.

14

A152339

ROLLER BEARING,1.75" ID x 2.2489" OD x 2.01"

RACE - bearing, front

1шт.

15

A76298

SNAP RING,#300, 3.222", Int

RING - snap, front bearing

2шт.

16

A38231

OIL SEAL,66.67mm ID x 85.22mm OD x 9.53mm Thk

- oil, front, 2-5/8 x 3-23/64 x 3/8" wide (41.27 x 85.33 x 9.52 mm)

1шт.

20

A153631

CLEVIS

YOKE - drive shaft, front and rear

2шт.

21

A76373

SEALING WASHER

- yoke

2шт.

22

A75138

WASHER

- retainer

2шт.

23

131-584

LOCK NUT,1 1/8"-12

NUT - lock, 1-1/8" NF hex

2шт.

25

A152348

HUB

- brake adapter

1шт.
