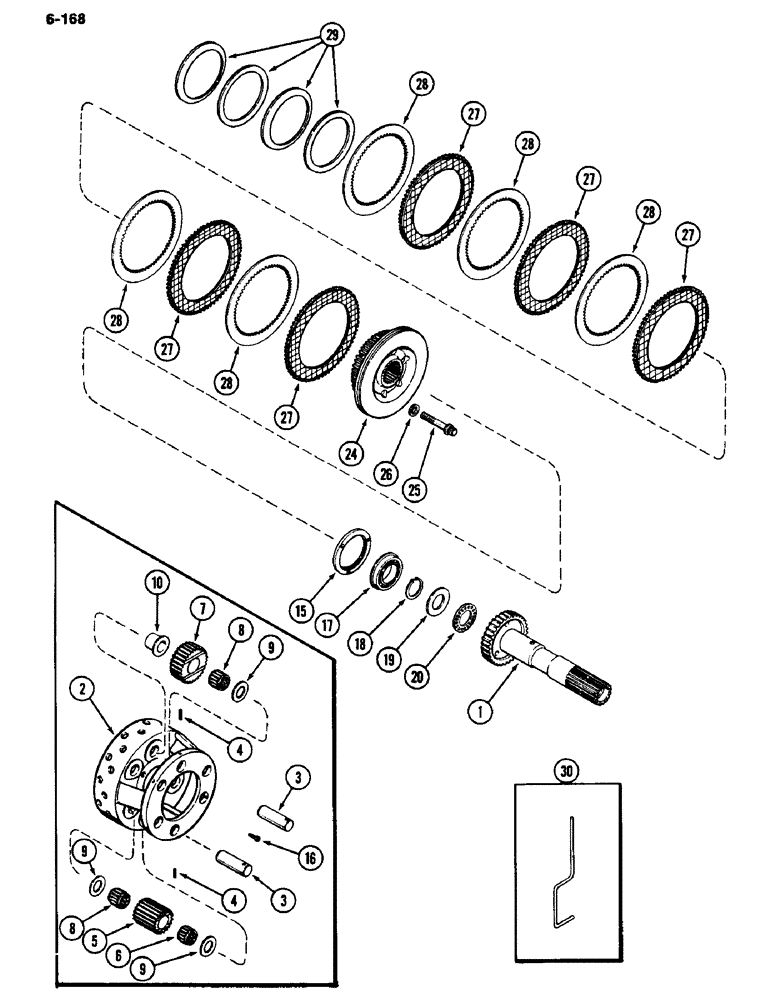

Запчасти Case IH 4490 (6-168) - TRANSMISSION CLUTCH ASSEMBLY, (C2) CLUTCH AND PLANETARY (06) - POWER TRAIN

1

A148695

SHAFT

- drive gear, input

1шт.

2

A152471

CARRIER

- planetary

1шт.

3

A63107

PIN

- planetary gear

6шт.

4

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

6шт.

5

A63108

GEAR

- planet, long

3шт.

6

A58077

ROLLER BEARING,25.395 mm ID x 33.3578 mm OD x 25.21 mm

BEARING - needle, long planet gear

3шт.

7

A63105

GEAR

- planet, short

3шт.

8

A62543

NEEDLE BEARING,25.39mm ID x 33.36mm OD x 31.56mm W

BEARING - roller, planet gears

6шт.

9

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

RACE - thrust, needle bearing

9шт.

10

A140877

SPACER,25.65mm ID x 31.88mm OD x 27.9mm L

- rear, short planet gear

3шт.

15

A146603

RETAINER

- planetary carrier

1шт.

16

62-410

HEX SOC SCREW,1/4"-28 x 5/8"

SCREW - cap, 1/4 x 5/8" NF socket head

3шт.

17

A63109

BEARING, BALL

BEARING - carrier (Includes snap ring)

1шт.

18

D25280

SNAP RING,#175, Ext

Ring, Snap, , output shaft #175, Ext

1шт.

19

A54021

WASHER

RACE - thrust, drive gear

1шт.

20

A154648

THRUST BEARING,44.5mm ID x 66.04mm OD x 2.69mm W

BEARING ASSEMBLY - thrust, drive gear (Replaces A54022 and H147785)

1шт.

24

A153081

HUB

- (C2) clutch

1шт.

25

166-96

12 PT SCREW,Flg, 1/2" - 13 x 4", Gr 8

SCREW - 1/2 x 4" NC 12 point head

6шт.

26

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- hardened, 9/16 x 1 x 1/16" (14.29 x 25.4 x 1.59 mm)

6шт.

27

A61981

PLATE

- sintered, (C2) clutch

5шт.

28

A155461

PLATE

- steel, (C2) clutch

5шт.

29

A58094

SPRING

- return

4шт.

30

A44341

HOLDER

- clutch plate

3шт.

A153169

CLUTCH

ASSEMBLY - powershift and planetary (Complete Unit) (Includes parts listed on Figure 6-164 thru 6-172)

1шт.
