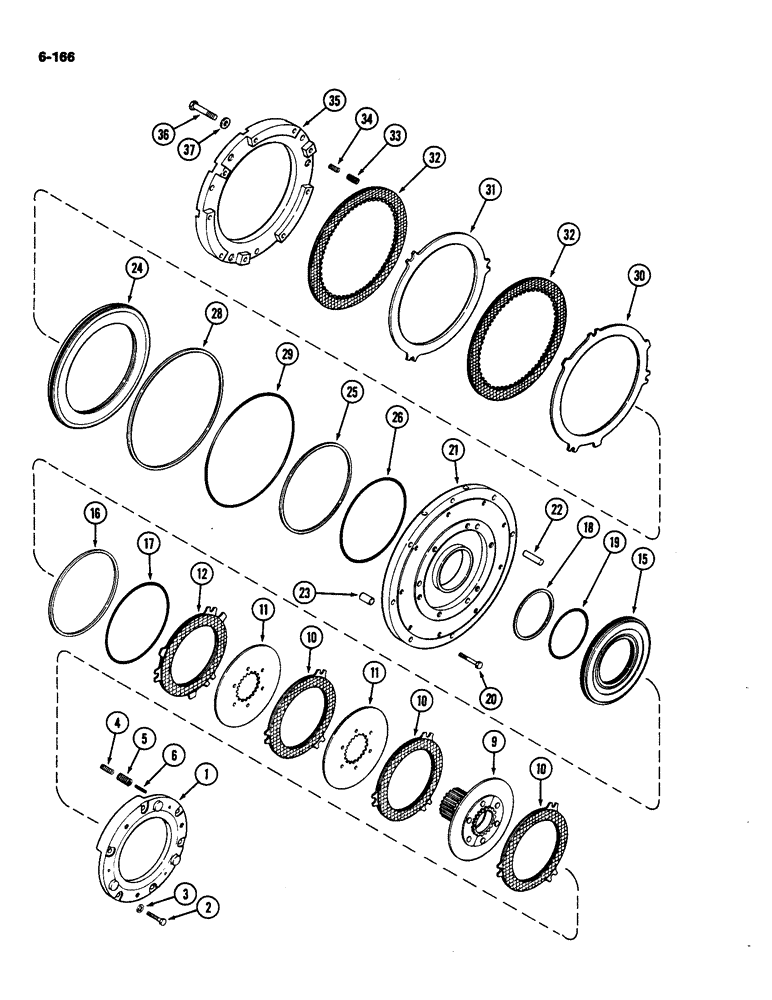

Запчасти Case IH 4490 (6-166) - TRANSMISSION CLUTCH ASSEMBLY, (C1) AND (C4) CLUTCHES (06) - POWER TRAIN

1

A156921

PLATE

- reaction, (C1) clutch (Replaces A142576)

1шт.

2

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

- 3/8 x 2-1/4" NC hex (Grade 8)

6шт.

3

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened, 7/16 x 49/64 x 1/32" (11.11 x 14.45 x 0.79 mm)

6шт.

4

A142613

SPRING

- return, 23/64" (9.12 mm) diameter x 1-1/4" (31.65 mm) free length

3шт.

5

A142612

SPRING

- return, 9/16" (14.29 mm) x 1-1/4" (31.75 mm) free length

3шт.

6

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

3шт.

9

A152113

PINION

GEAR ASSEMBLY - sun, (C1) clutch (Includes clutch plate)

1шт.

10

A142360

PLATE

- friction, (C1) clutch

3шт.

11

A152112

PLATE

- steel, (C1) clutch

2шт.

12

A142361

PLATE

- friction with tab, (C1) clutch

1шт.

15

A146670

PISTON

- (C1) clutch

1шт.

16

A146682

RING

- external seal 8-1/4" (209.55 mm) ID

1шт.

Included in A46286 Seal Kit. See Figure 6-170.

1шт.

17

A150753

O-RING,7.84" ID x 0.107"

- external seal, 1-1/4" (196.85 mm) ID

1шт.

Included in A46286 Seal Kit. See Figure 6-170.

1шт.

18

A146683

RING

- internal seal, 4-1/2" (107.95 mm) OD

1шт.

Included in A46286 Seal Kit. See Figure 6-170.

1шт.

19

A150754

O-RING,4.718" ID x 0.107"

- internal seal, 5" (127 mm) OD

1шт.

Included in A46286 Seal Kit. See Figure 6-170.

1шт.

20

26-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- 3/8 x 1-1/2" NC hex (Grade 8)

8шт.

21

A75283

CARRIER

ASSEMBLY - piston, (C1) and (C4) clutch, Includes: Ref. 22 and 23

1шт.

22

A75102

PIN,12.45mm OD x 50.8mm L

- (C1) clutch plate, 1/2 x1" (12.7 x 50.8mm)

3шт.

23

A62609

PIN,12.45mm OD x 27.43mm L

- (C4) clutch plate, 1/2 x 1-5/64" (12.7 x 27.28 mm)

3шт.

24

A146671

PISTON

- (C4) clutch

1шт.

25

A146681

SEAL

- internal seal, 9" (228.6 mm) OD

1шт.

Included in A46286 Seal Kit. See Figure 6-170.

1шт.

26

A150752

O-RING,9.206" ID x 0.107" OD

- internal seal, 9-1/4" (234.9 mm) OD

1шт.

Included in A46286 Seal Kit. See Figure 6-170.

1шт.

28

A146680

RING

- external seal, 12-1/2" (317.5 mm)

1шт.

Included in A46286 Seal Kit. See Figure 6-170.

1шт.

29

A150751

O-RING,12.09" ID x 0.107"

- external seal, 11-3/4" (298.45 mm) ID

1шт.

Included in A46286 Seal Kit. See Figure 6-170.

1шт.

30

A58056

PLATE

- steel with tabs, (C4) clutch

1шт.

31

A75105

PLATE

- steel, (C4) clutch

1шт.

32

A67128

PLATE

- friction, (C4) clutch

2шт.

33

A62606

SPRING

- return, 9/16" (14.24 mm) diameter x 1-3/32" (27.78 mm) free length

3шт.

34

A62607

SPRING

- return, 23/64" (9.12 mm) diameter x 13/32" (27.78 mm) free length

3шт.

35

A77120

PLATE

- reaction, (C4) clutch

1шт.

36

26-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

9шт.

37

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened, 7/16 x 49/64 x 1/32" (11.11 x 0.79 mm)

9шт.

A153169

CLUTCH

ASSEMBLY - powershift and planetary (Complete Unit) (Includes parts listed on Figure 6-164 thru 6-172

1шт.
