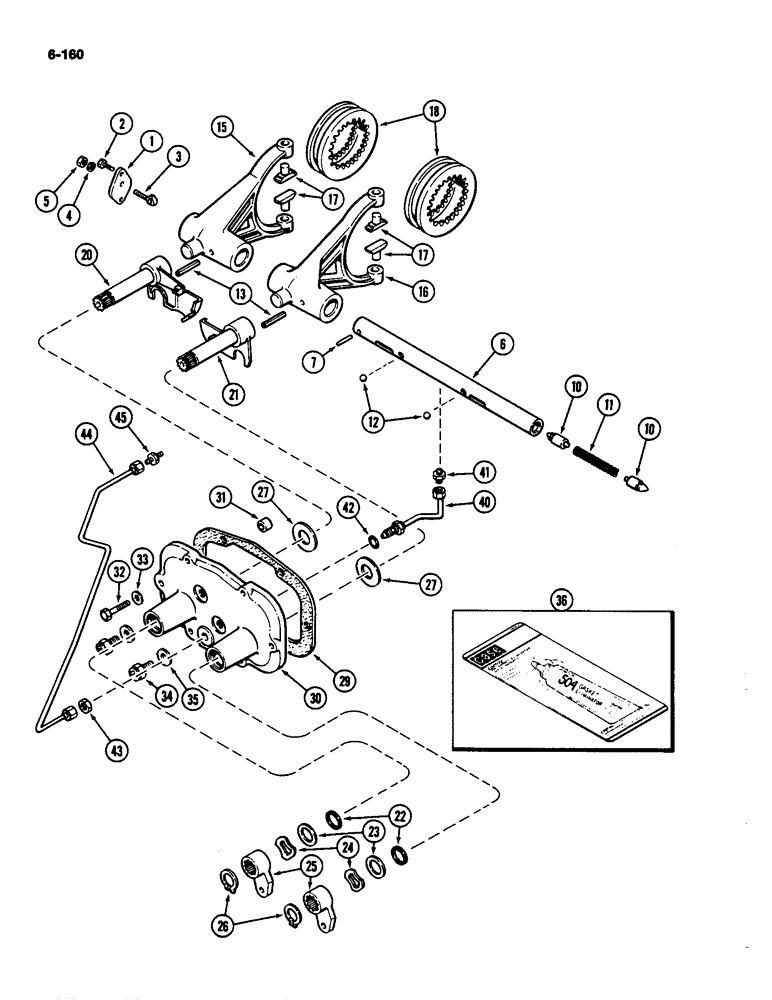

Запчасти Case IH 4490 (6-160) - RANGE SHIFT MECHANISM (06) - POWER TRAIN

1

A152975

COVER

- end, shift rail (See Ref 36)

1шт.

2

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

3

A150354

ROD

- eye, shift rail

1шт.

4

D32074

WASHER

- 11/32 x 9/16 x 1/16" (8.73 x 14.29 x 1.59 mm)

1шт.

5

129-122

NUT,5/16"-24, G5

1шт.

6

A154133

RAIL

- shift

1шт.

42

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, housing, (10.52 ID x 1.83 mm width)

1шт.

7

138-2005

PIN,1/4" x 1", Coiled

- spirol, 5/16 x 1"

1шт.

10

A150361

PISTON

- detent lock

2шт.

11

A153142

SPRING

- piston, 3-5/8" (92.07 mm) free length

1шт.

12

211-26

BALL,15/32" Dia

- detent, 15/32" (92.07 mm) diameter

4шт.

13

138-218

LOCK PIN,5/16" x 1 7/8", Slotted

PIN, , Fork to rail 5/16" x 1 7/8", Slotted

2шт.

15

A154125

FORK

- shift collar, 1st and 2nd

1шт.

16

A154126

FORK

- shift collar, 3rd and 4th

1шт.

17

A151622

AXLE PIN

FINGER - shift fork

4шт.

18

A138190

COLLAR

- shift, intermediate shaft

2шт.

20

A153005

LEVER

- shift fork, 1st and 2nd

1шт.

21

A153006

LEVER

- shift fork, 3rd and 4th

1шт.

22

A76307

OIL SEAL,25.4mm ID x 31.9mm OD x 4.75mm Thk

- oil, lever shaft

2шт.

23

G46081

BEARING WASHER

WASHER - spacer, 1 x 1-9/16 x 1/32" (25.4 x 39.69 x 0.793 mm)

2шт.

24

A63169

SPRING

- wave

4шт.

25

A153022

LEVER

- outer, shift linkage

2шт.

26

B18208

SNAP RING,#100, Ext

2шт.

27

A65121

SHIM,.005" Thk

Shift lever, 1" x 2" (25.4 x 50.8 x 0.127 mm) .005" Thk

1шт.

29

A64067

GASKET

- shift housing

1шт.

30

A150062

HOUSING

- shift cover

1шт.

31

A63167

SLEEVE

- dowel, housing to transmission case

2шт.

32

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

5шт.

32

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

33

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16" (10.3 x 20.6 x 1.6 mm)

6шт.

34

A139078

SWITCH

- neutral start

2шт.

35

G49402

SHIM,.010" Thk

Switch (0.254 mm) .010" Thk

1шт.

30

B17428

LOCTITE

- gasket eliminator, 2 ounce (50 cc) tube (for shift rail end cover)

1шт.

40

A152973

TUBE

- internal, hydraulic lock

1шт.

41

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - 1/4" tube x 1/8" PT (at shift rail)

1шт.

43

218-1253

BHD LOCK NUT,Blkhd, 1/2"-20

NUT - lock, 5/16" tube (at housing)

1шт.

44

A151939

TUBE

- external, hydraulic lock (See Page 8-263)

1шт.

45

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - 5/16 tube x 1/8" PT (at valve)

1шт.
