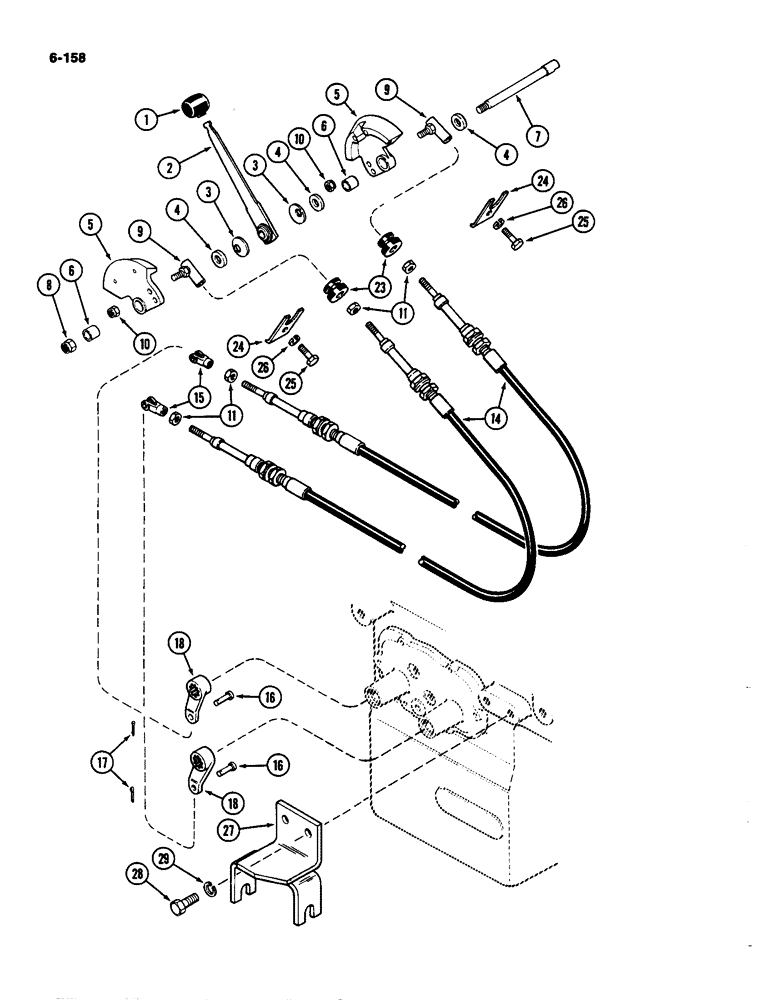

Запчасти Case IH 4490 (6-158) - RANGE SHIFT LINKAGE (06) - POWER TRAIN

1

A137806

KNOB

- hand lever

1шт.

2

A137857

LEVER

- control

1шт.

3

A59662

WASHER

- beveled

2шт.

4

A60367

SPACER

- quadrant

3шт.

5

A143835

QUADRANT

ASSEMBLY - range shift (Replaces A61862), Includes: Ref. 6

2шт.

6

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- pivot

1шт.

7

A75377

SHAFT

- control lever and quadrant

1шт.

8

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

1шт.

9

A60307

JOINT

- ball, Serial Range: cable-quadrant

2шт.

10

131-5

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8" NC

2шт.

11

86585245

SPECIAL NUT,JAM, 5/8" - 18

- 3/8" NF hex jam

4шт.

14

A145335

CABLE

- range control (72" Long)

2шт.

15

T40057

YOKE

- control, Serial Range: cable-lever

2шт.

16

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

17

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

18

A153022

LEVER

- outer, shift linkage (See Figure 6-160)

2шт.

23

A152513

GROMMET

- firewall, control cable

2шт.

24

A152516

BRACKET

- grommet clamp

2шт.

25

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

27

A161220

BRACKET

BULKHEAD - control cable

1шт.

28

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

2шт.

29

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
