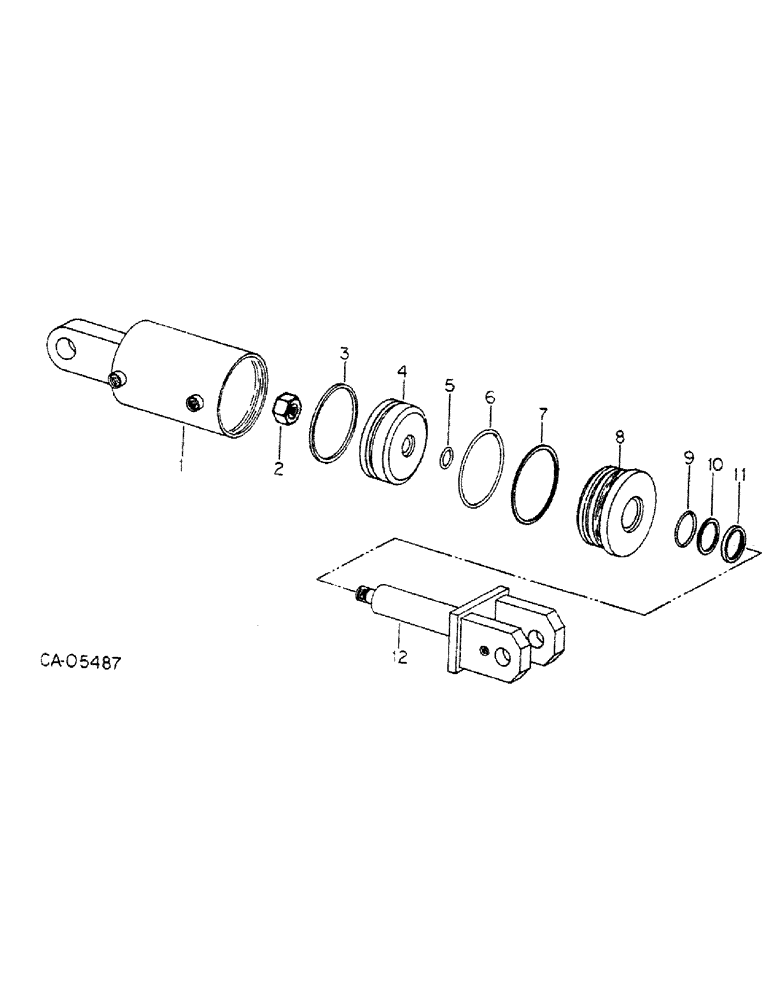

Запчасти Case IH 4386 (10-30) - HYDRAULICS, HITCH LIFT CYLINDER (07) - HYDRAULICS

71800C92

CYLINDER

ASSY, hitch lift

1шт.

1

71801C1

TUBE

ASSY

1шт.

2

359798C1

LOCK NUT,1"-14, GC

NUT, lock

1шт.

3

SEAL PISTON, Not serviced separately order seal kit

1шт.

4

76914C1

PISTON

1шт.

5

O-RING, Not serviced separately order seal kit

1шт.

6

O-RING, Not serviced separately order seal kit

1шт.

7

WASHER, back-up, Not serviced separately order seal kit

1шт.

8

76915C1

GUIDE

HEAD, cylinder

1шт.

9

O-RING, Not serviced separately order seal kit

1шт.

10

WASHER, back-up, Not serviced separately order seal kit

1шт.

11

WIPER, piston rod, Not serviced separately order seal kit

1шт.

12

76913C1

ROD

ASSY, Replaces 71802C1

1шт.

71803C1

SEAL KIT

KIT, seal, Consists of

1шт.

NSS

NOT SOLD SEPARAT

O-RING

3шт.

NSS

NOT SOLD SEPARAT

WASHER

2шт.

NSS

NOT SOLD SEPARAT

WIPER

1шт.

NSS

NOT SOLD SEPARAT

SEAL

1шт.
