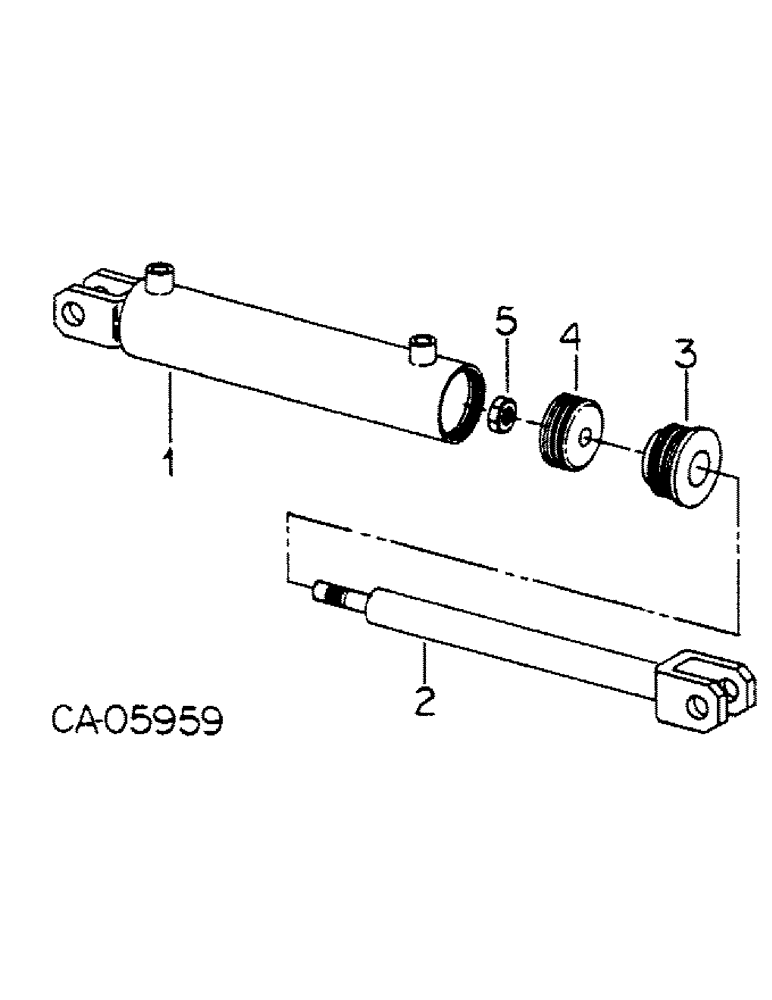

Запчасти Case IH 4386 (10-29) - HYDRAULICS, POWER STEERING CYLINDERS, CENTRAL STEEL, 4386 TRACTORS WITH SERIAL NO. 1333 AND ABOVE (07) - HYDRAULICS

CYLINDER ASSY, steering, On orders for 134400C91, furnish cylinder assy 113837C91, tractors w/central steel cylinder coded with "C" on clevis

2шт.

1

71346C1

TUBE,18.812" Length

ASSY

1шт.

2

134403C1

CYLINDER

ROD ASSY

1шт.

3

134404C1

GUIDE

rod

1шт.

4

134405C1

PISTON

1шт.

5

217216

NUT

1-14 znd hex

1шт.

134407C3

SEAL KIT

KIT, seal, Consists of

1шт.

NSS

NOT SOLD SEPARAT

WIPER

1шт.

NSS

NOT SOLD SEPARAT

O-RING

2шт.

NSS

NOT SOLD SEPARAT

WASHER

1шт.

NSS

NOT SOLD SEPARAT

PISTON, seal

1шт.

NSS

NOT SOLD SEPARAT

PISTON, seal o-ring

1шт.

NSS

NOT SOLD SEPARAT

ROD SEAL

1шт.

NSS

NOT SOLD SEPARAT

WEAR RINGS

2шт.
