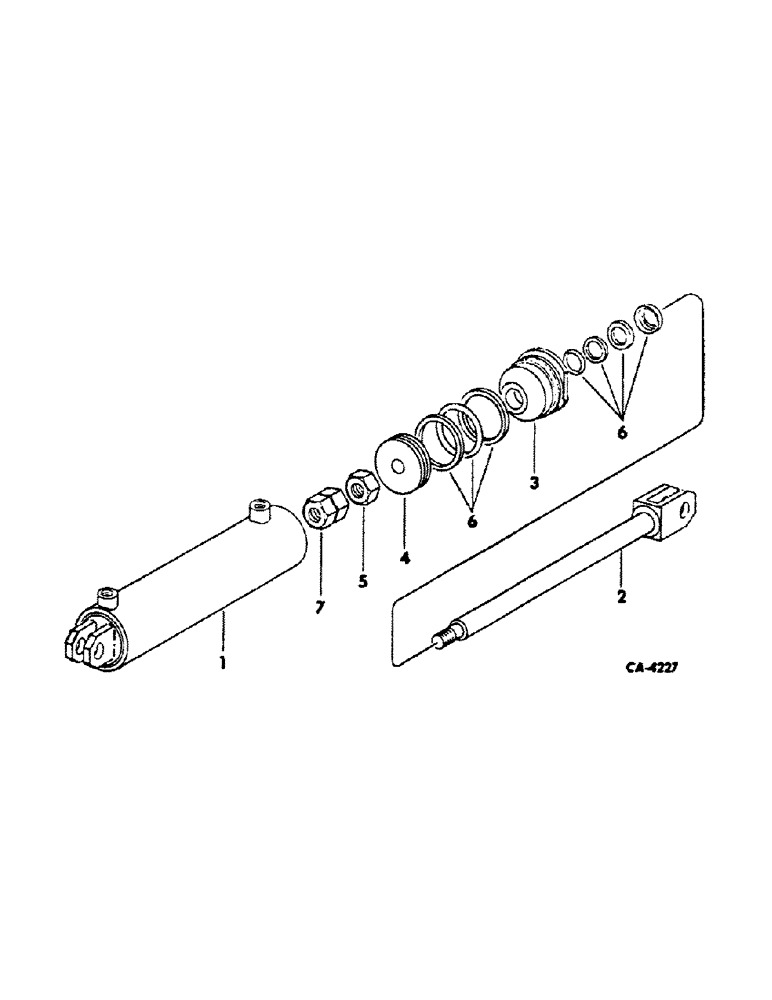

Запчасти Case IH 4386 (10-27) - HYDRAULICS, POWER STEERING CYLINDERS (07) - HYDRAULICS

71341C91

CYLINDER

ASSY, steering, Order cylinder assy 71343C91, tractors w/aurelius cylinder w/o code and .25 inch step plate, Consists of all marked parts Unit A

1шт.

CYLINDER ASSY, steering, 4386 tractor w/serial no. 1332 & below, On orders for cylinder 71343C91, furnish cylinder 113837C91, tractors w/aurelius cylinder stamped "O" on end cap and w/o .25 inch step plate, Consists of all marked parts Unit B

2шт.

71342C91

FLYWHEEL WITH GEAR

CYLINDER ASSY, steering, Order cylinder assy 71344C91, tractors w/central steel cylinder coded with & w/o code "C" & w/.25 inch step plate, Consists of all marked parts Unit C

1шт.

CYLINDER ASSY, steering, 4386 tractor, On orders for cylinder 71344C91, furnish cylinder 134400C91, tractors w/central steel cylinder coded w/"O" and .25 inch step plate and with or w/o code "C", Consists of all marked parts Unit D, Serial Range: -1332

2шт.

1

71347C1

TUBE ASSY, cylinder, Units A and B 3" ID

1шт.

1

71346C1

TUBE,18.812" Length

ASSY, cylinder, Units C and D

1шт.

2

71154C1

SHAFT

ASSY, cylinder, Units A and B 19-3/8"

1шт.

10-27 - ref #2 (P/N 71154C1) - best way to tell difference in cylinders is by the length of the shaft.

1шт.

Measured from center of hole(yoke) to end of shaft.

1шт.

2

71158C1

ROD

SHAFT ASSY, cylinder, Units C and D 17-1/4"

1шт.

3

71155C1

GLAND, end, Units A and B

1шт.

3

71159C1

GUIDE

GLAND, end, Units C and D

1шт.

4

71156C1

PISTON

Units A and B

1шт.

4

71160C1

PISTON

Units C and D

1шт.

5

217216

NUT

1-14 znd hex, Units A and C

1шт.

6

70777C1

SEAL KIT

seal and o-ring service, Units A and B

1шт.

6

134407C3

SEAL KIT

KIT, seal and o-ring service, Units C and D

1шт.

7

71161C1

STOP

Units B and D

1шт.
