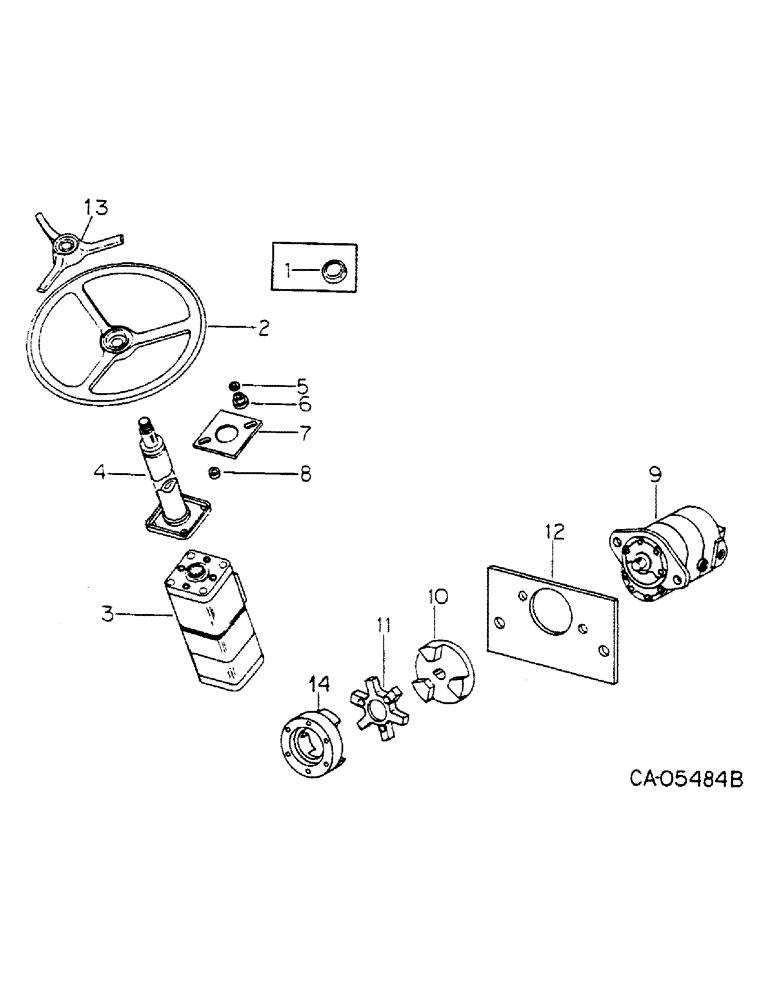

Запчасти Case IH 4386 (10-24) - HYDRAULICS, HYDRAULIC PUMPS AND MOUNTING (07) - HYDRAULICS

1

70148C1

CAP

steering wheel, 4386 tractors, Serial Range: -1500

1шт.

1

70148C1

CAP

steering wheel, All 4366 tractors

1шт.

1

68837C1

CAP

ASSY, steering wheel, 4386 tractors, Serial Range: 1501-2500

1шт.

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 class 5

1шт.

2

70091C1

RIM

WHEEL, steering, 4386 tractors, Serial Range: -1500

1шт.

2

70091C1

RIM

WHEEL, steering, All 4366 tractors

1шт.

2

385156R1

WHEEL (STEERING)

WHEEL, steering, 4386 tractors, Start Serial: 1501

1шт.

2

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

3

ORBITROL ASSY, steering pump, For components, See list of parts under details of steering pump orbitrol

1шт.

4

69432C91

COLUMN JACKET

POST ASSY, steering, 4366 tractors

1шт.

426099

NUT,3/4"-16, G5

3/4-NF type 5

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

206169H1

CAPSCREW

BOLT, 3/8-16 x 3/4 12PT flanged

2шт.

4

104922C91

COLUMN JACKET

POST ASSY, steering, 4386 tractors, Serial Range: -1500

1шт.

426099

NUT,3/4"-16, G5

3/4-NF type 5

1шт.

4

132631C1

POST ASSY, steering, 4386 tractors, Start Serial: 1501

1шт.

F19646

LOCK NUT,13/16"-20, Thin

NUT, steering wheel

1шт.

5

129189C1

WASHER

insulator, 4386 tractors

2шт.

6

70174C1

BUSHING

ISOMOUNT, orbitrol, 4386 tractors

2шт.

7

129190C1

LARGE PLATE

PLATE, orbitrol, 4386 tractors

1шт.

8

129191C1

SPACER

orbitrol, 4386 tractors

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 hex-hd cap

2шт.

206169H1

CAPSCREW

SCREW, 3/8-16 x 3/4 12 pt-hd

2шт.

324235R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

SCREW, 3/8 x .750 pln ast 12PT flg

2шт.

9

69433C91

PUMP, HYDRAULIC

PUMP ASSY, hydraulic - Cessna, For list of components, See hydraulic pump assy this group

1шт.

REF #9 PUMP ASSEMBLY 69433C91-FOR SUPPLY AND RETURN LINES SEE PAGE 10-13 ITEM 1 AND 1

1шт.

0-7 ITEM 3. JBEDFORD 4/2/97 (PER MARV HOOD). REF #4 132631C1 SHOULD BE 132631C91 TS 5-7

1шт.

9

1949280C1

REMAN-HYD PUMP

4366 (1/73-12/76), 4386 (1/76-12/81), Both INTERNATIONAL 4WD DIESEL TRACTOR, PUMP ASSY, double hyd gear

1шт.

9

1949281C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

3/4 x 2 type 5

2шт.

280954

NUT,3/4"-10, G5

2шт.

131017

WASHER

.812 x 1.469 x .108

2шт.

10

1250231C1

COUPLING

COUPLER, engine hyd pump drive, Replaces 69382C2

1шт.

102597

SET SCREW

SCREW, set

1шт.

11

70297C2

SPIDER ASSY.

SPIDER, hyd pump

1шт.

12

127636C1

BAR

engine pump mounting - plate, 4386 tractors

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 x 2-1/4 type 5

2шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .074

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

13

148839C91

CAP

ASSY, steering, 4386 tractors, Start Serial: 2501

1шт.

14

69416C1

COUPLING

engine

1шт.

347756R1

12 PT SCREW,Flg, 3/8"-16 x 1 3/4"

SCREW, 3/8 x 1.750 pln ast 12PT flg

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

6шт.
