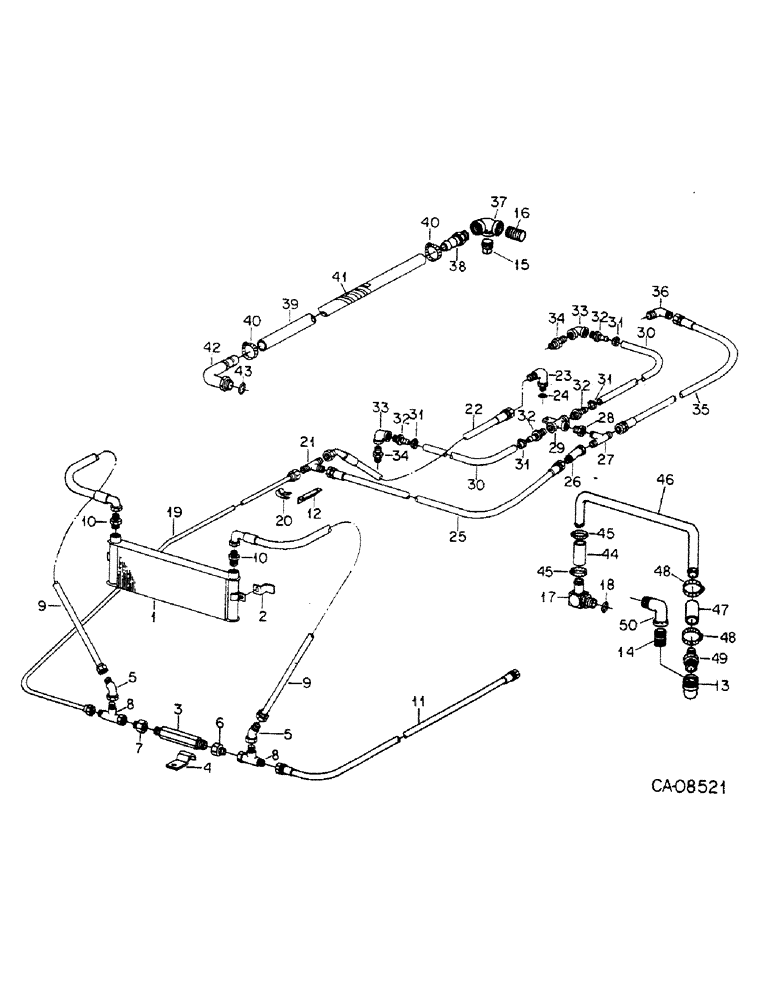

Запчасти Case IH 4386 (10-20) - HYDRAULICS, OIL COOLER AND TRANSMISSION CONNECTIONS, 4386 TRACTORS WITH SERIAL NO. 1500 AND BELOW (07) - HYDRAULICS

1

71903C1

COOLER

COOLER ASSY, hydraulic oil

1шт.

2

69780C1

ANCHOR

MOUNT, oil cooler

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, 3/8 x 1 type 5

4шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

8шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

4шт.

3

110578C91

VALVE

SPARE PART VALVE ASSY, oil cooler relief

1шт.

4

116687C1

BRACKET

CLAMP, oil cooler relief valve

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

NUT, 5/8 type 5

1шт.

5

9410256

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

ELBOW, 5/8 C-Z hyd fld 45D swivel

2шт.

6

483594R2

UNION

UNION, reducer 1.0 to 5/8 oil cooler by-pass valve

1шт.

7

1304639C1

REDUCER

UNION, reducer 3/4 to 5/8 oil cooler by-pass valve, Replaces 118913C1

1шт.

8

9410334

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

TEE, 5/8 C-Z hyd fld tube swivel

2шт.

9

116663C1

HOSE ASSY.

HOSE ASSY, oil cooler

2шт.

308576R1

CLAMP

CLAMP, oil cooler

1шт.

10

343804R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1/2"-14, NPTF

CONNECTOR, 1-1/16-12 37 deg hyd flared tube reducer

2шт.

11

116650C1

HOSE ASSY.

HOSE ASSY, steering relief valve to oil cooler by-pass

1шт.

12

118964C1

ANGLE

ANGLE, tube clamp support

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

SCREW, Cross Pan Hd, #10-24 x 1/2"

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

NUT, #10-24

1шт.

13

187558

ELBOW,90 Degree, 1 1/2" NPT

ELBOW, 1-1/2 pln 90D pipe

1шт.

14

216341

LUBE NIPPLE

NIPPLE, 1-1/2 x 1-3/4 pln close pipe

1шт.

15

20971R1

PLUG

PLUG, 1-1/2 11-1/2 pln sq/hd auto pipe

1шт.

16

216341

LUBE NIPPLE

NIPPLE, 1-1/2 x 1-3/4 pln close pipe

1шт.

17

114267C1

ELBOW,90 Degree, 1 1/2" Hose x 1 7/8"-12 ORB Beaded

ELBOW ASSY, 1-1/2 in hose adapter

1шт.

18

301016R1

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

O-RING, 1-1/2 OD tube class 6

1шт.

19

124947C1

TUBE

TUBE ASSY, oil cooler by-pass to trans secondary tee

1шт.

20

299410C1

CLAMP,5/8", Insul, 1/4" Bolt

CLAMP, 5/8 closed tube

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

SCREW, Cross Pan Hd, #10-24 x 1/2"

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

NUT, #10-24

1шт.

21

9402983

TEE,7/8"-14, 37 Degree

TEE, 5/8 C-Z hyd flared three way, transmission secondary

1шт.

22

129198C1

HOSE ASSY.

HOSE ASSY, transmission secondary tee to frt axle top cover rear port

1шт.

23

119054C1

ELBOW

ELBOW ASSY, lub & metering front axle top cover

1шт.

24

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING, 5/8 OD tube

1шт.

25

116667C1

HOSE

HOSE ASSY, transmission primary to secondary tee

1шт.

26

9410256

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

ELBOW, 5/8 C-Z hyd fld 45D swivel

1шт.

27

9403022

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br

TEE, 5/8 C-Z hyd flared tube two way, transmission primary

1шт.

28

444323

BUSHING

ADAPTER, 1/2-14 to 3/8 pipe auto reducer

1шт.

29

69783C1

TEE

TEE ASSY, transmission oil return

1шт.

30

69784C1

HOSE

HOSE, transmission oil return

2шт.

31

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

HOSE CLAMP, #06, .44/.78 Type F Worm

4шт.

32

70090C1

FITTING

ADAPTER, 1/4, Serial Range: npt-hose

4шт.

33

NLS

NO LONGER SERVICED

Union Elbow ELBOW, 1/4 90 deg pipe

2шт.

34

127461C2

NIPPLE, LUBE

NIPPLE NIPPLE ASSY, orifice

2шт.

35

105100C1

HOSE ASSY.

SPARE PART HOSE ASSY, transmission primary tee to transfer case

1шт.

36

132712C1

ELBOW

ELBOW ASSY, lub & metering

1шт.

37

134934C1

ELBOW

ELBOW, 1-1/2 npt side outlet, transfer case RH side, Replaces 218202

1шт.

38

127651C1

PIPE

FITTING, 1-1/2 to 1.50 dia hose

1шт.

39

132877C2

HOSE,1.50" ID x 36.50"

HOSE, Transfer Case to Front Axle Side Cover Center Port

1шт.

40

224910C1

HOSE CLAMP,1.75/2.625 HD Worm, W/liner

CLAMP, 2.50 hose

2шт.

41

132878C1

GUARD

GUARD, transfer case to front axles hose

1шт.

42

124955C1

SPARE PART ELBOW, hose adapter

1шт.

43

301016R1

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

O-RING, 1.720 ID x .118

1шт.

44

116708C2

HOSE

HOSE, transmission drain

1шт.

45

224910C1

HOSE CLAMP,1.75/2.625 HD Worm, W/liner

CLAMP, 2.50 hose

2шт.

46

145889C1

TUBE, transmission drain, Replaces 141962C1 by also ordering nipple 216341 and elbow 187558

1шт.

47

138707C1

HOSE,1.50" ID x 4.00"

HOSE, manifold to pump, Replaces 536085R1

1шт.

48

224910C1

HOSE CLAMP,1.75/2.625 HD Worm, W/liner

CLAMP, 2.50 hose

2шт.

49

127651C1

PIPE

FITTING, 1-1/2 to 1.50 dia hose

1шт.

50

116690C1

ELBOW

ELBOW, 1-1/2 to 1-1/4 reducing st

1шт.
