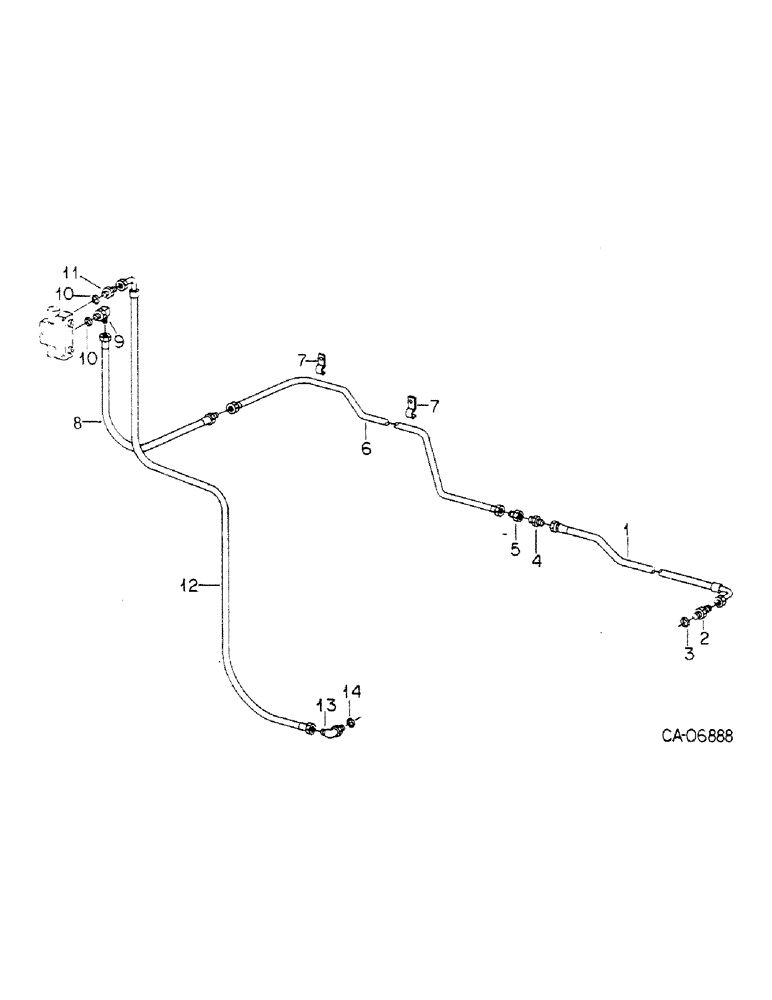

Запчасти Case IH 4386 (10-14) - HYDRAULICS, VALVE SUPPLY, 4386 TRACTORS WITH SERIAL NO. 1501 AND ABOVE (07) - HYDRAULICS

1

116669C2

HOSE

ASSY, pump to aux valve supply tube

1шт.

2

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 1-1/16-12 C-Z 37 deg hyd flared tube short swivel

1шт.

3

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

1шт.

4

9402790

HYD CONNECTOR,1 3/16"-12, 37 Degree x 1 3/16"-12, 37 Degree

UNION, 1-3/16-12 37 deg flared tube hyd

1шт.

5

406996R1

ADAPTER

1-1/16 x 1-3/16 male to fe, Serial Range: male-female

1шт.

6

134654C2

TUBE

ASSY, aux valve supply

1шт.

7

632703R1

CLAMP

CLIP, aux valve supply

2шт.

273924

SNAP RING

NUT, 1/4 cad p/t lock type 5

2шт.

8

116644C2

HOSE ASSY.

HOSE ASSY, tube to aux valve

1шт.

1257945C1

STRAP, tie

1шт.

9

673391R1

ELBOW UNION,90 Degree, 1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

ELBOW, 1-1/16-12 37 deg hyd flared tube adj str thd 90 deg reducer

1шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

2шт.

11

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 C-Z 37 deg hyd flared tube short swivel

1шт.

12

69406C1

HOSE

ASSY, aux valve to frt axle side cover bottom port

1шт.

13

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

1-1/16-12 37 deg hyd flared tube adj str thd 90 deg

1шт.

14

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

1шт.
