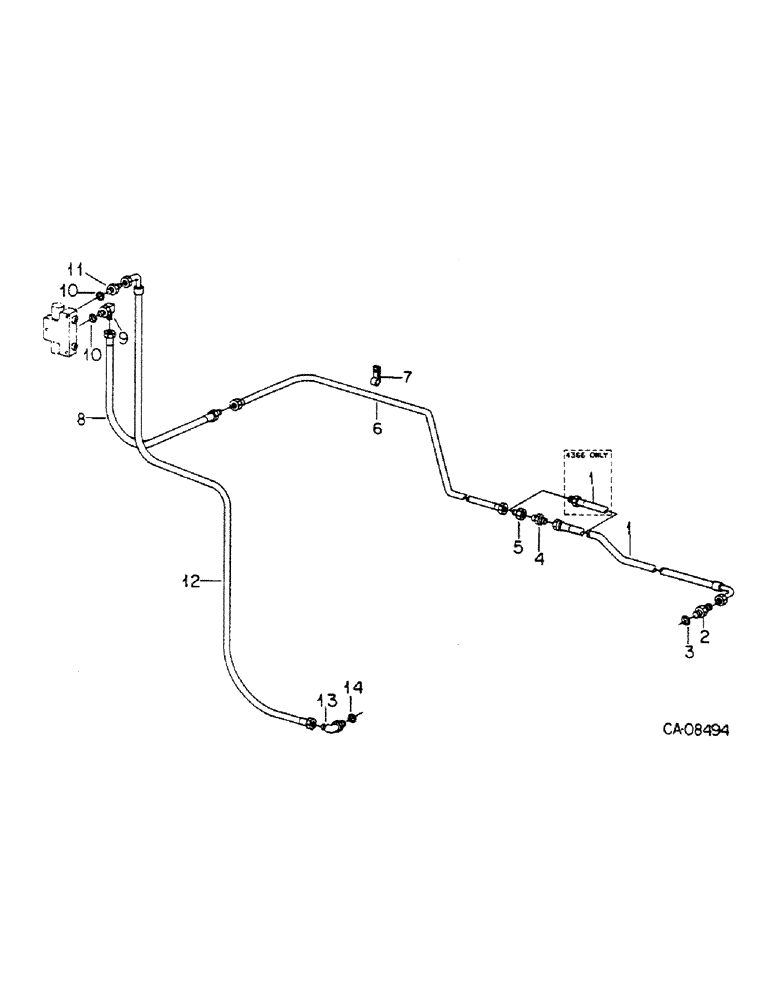

Запчасти Case IH 4386 (10-13) - HYDRAULICS, VALVE SUPPLY, 4366 TRACTORS, 4386 TRACTORS WITH SERIAL NO. 1500 AND BELOW (07) - HYDRAULICS

1

69403C1

HOSE

ASSY, pump to aux valve tube, 4366 tractors

1шт.

1

116669C2

HOSE

ASSY, pump to aux valve tube, 4386 tractors

1шт.

2

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 3/4 C-Z hyd fld short swivel

1шт.

3

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

1шт.

4

9402790

HYD CONNECTOR,1 3/16"-12, 37 Degree x 1 3/16"-12, 37 Degree

UNION, 7/8 C-Z hyd flared tube, 4386 tractors only

1шт.

5

406996R1

ADAPTER

1-1/16 x 1-3/16 male to female, 4386 tractors only

1шт.

6

69404C1

TUBE,51.375" Length

ASSY, aux valve supply, 4366 tractors

1шт.

6

116642C2

TUBE

ASSY, aux valve supply, 4386 tractors

1шт.

7

301272C1

CLAMP,3/4", Insul, 1/4" Bolt

3/4 dia closed tube, 4366 tractors

3шт.

436754

SCREW,Slotted Pan Hd, #10-32 x 1"

no. 10-NF x 1 znp p/hds mach

3шт.

107377H

LOCK NUT,#10-32, GB

NUT, LOCK, #10-32, GB

3шт.

7

299414C1

CLAMP,7/8", Insul, 1/4" Bolt

3/4 dia closed tube, 4386 tractors

2шт.

436754

SCREW,Slotted Pan Hd, #10-32 x 1"

no. 10-NF x 1 znp p/hds mach

2шт.

107377H

LOCK NUT,#10-32, GB

NUT, LOCK, #10-32, GB

2шт.

8

69405C1

HOSE

ASSY, tube to aux valve, 4366 tractors

1шт.

8

116644C2

HOSE ASSY.

HOSE ASSY, tube to aux valve, 4386 tractors

1шт.

9

673391R1

ELBOW UNION,90 Degree, 1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

ELBOW, C-Z hyd fld adj 3/4 to 5/8 90D

1шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

2шт.

11

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, C-Z hyd fld 3/4 to 5/8 sht

1шт.

12

69406C1

HOSE

ASSY, aux valve to frt axle side cover bottom port, 4366 tractors

1шт.

12

116669C2

HOSE

ASSY, aux valve to frt axle side cover bottom port, 4386 tractors

1шт.

13

673391R1

ELBOW UNION,90 Degree, 1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

ELBOW, C-Z hyd fld adj 3/4 to 5/8 90D, 4366 tractors

1шт.

13

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

3/4 C-Z hyd fld adj 90D, 4386 tractors

1шт.

14

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6, 4366 tractors

1шт.

14

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6, 4386 tractors

1шт.
