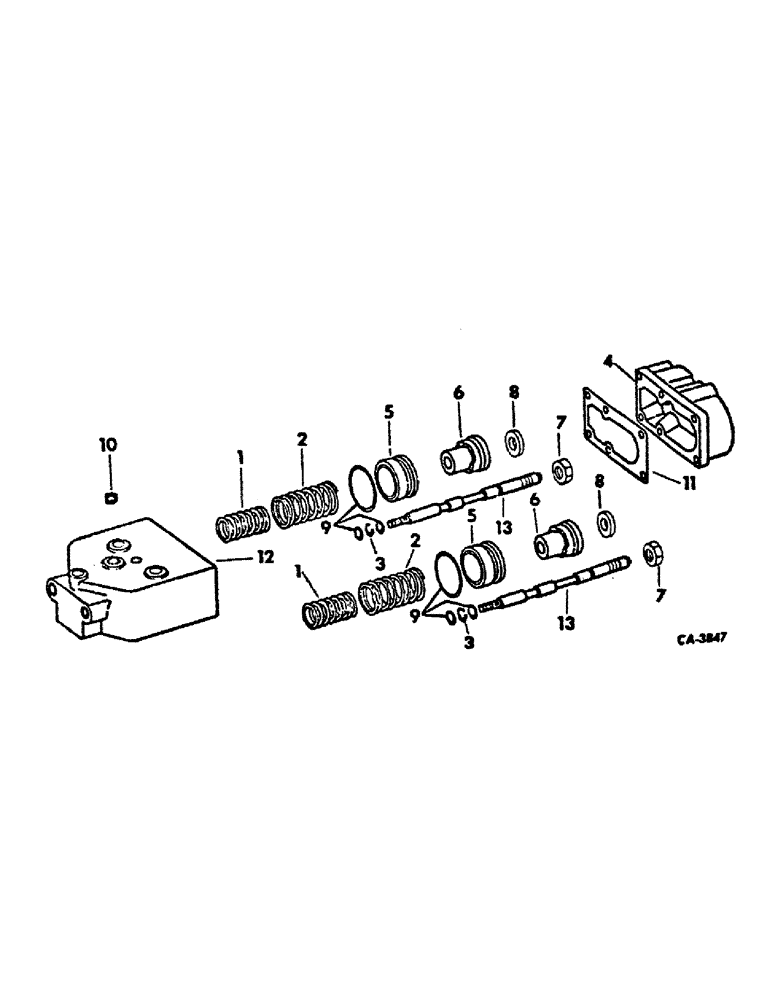

Запчасти Case IH 4386 (10-06) - HYDRAULICS, HYDRAULIC POWER BRAKE VALVE, 4386 TRACTORS WITH SERIAL NO. 1501 AND ABOVE (07) - HYDRAULICS

VALVE ASSY, hyd power brake, Order power brake valve service package, 72807C93, Also order one orifice plate 384501R1

1шт.

9410358

PLUG

3/8 CZ str thd o-ring boss

1шт.

1

71707C1

SPRING

return

2шт.

2

71708C1

SPRING

large piston

2шт.

3

85633R1

RING

1/2 sq sect snap

2шт.

4

384495R1

CAP

body

1шт.

NLS

NO LONGER SERVICED

SCREW, 1/2-20 x 7/8 hex-hd cap

6шт.

5

69156C2

PISTON

large

1шт.

6

69157C1

PISTON

small

2шт.

7

9411648

LOCK NUT,1/2"-20, GC

LOCKNUT, 1/2-20

2шт.

8

69158C1

WASHER,12.78mm ID x 25.4mm OD x 6.35mm Thk

piston

1шт.

9

71487C91

PACKAGE

brake valve o-ring and gasket service, Consists of

1шт.

384503R2

GASKET,0.38mm Thk

1шт.

O-RING, NSS

4шт.

O-RING, NSS

2шт.

O-RING, NSS

2шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

4шт.

10

384501R1

PLATE

orifice

1шт.

11

384503R2

GASKET,0.38mm Thk

body cap

1шт.

12

BODY, power brake valve, Not serviced separately order service package, 72807C93

1шт.

13

SPOOL, valve, Not serviced separately order service package, 72807C93

2шт.

72807C93

VALVE

PACKAGE, hyd brake valve service, Consists of

1шт.

VALVE ASSY, hyd brake, NSS

1шт.

INSTRUCTIONS, NSS

1шт.
