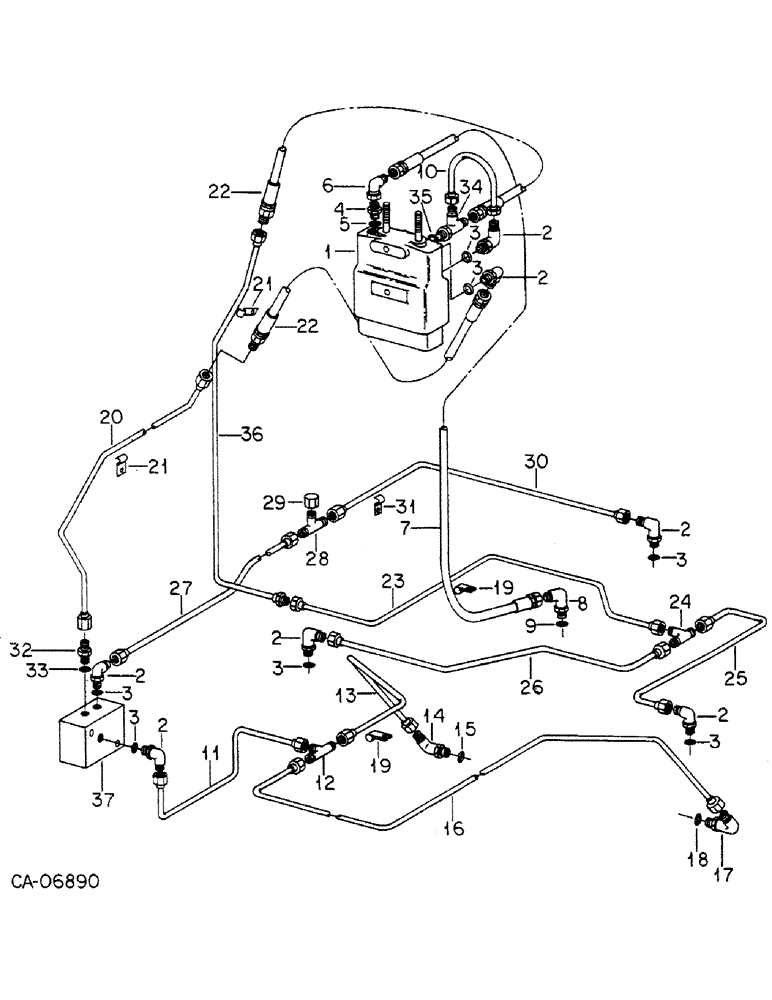

Запчасти Case IH 4386 (10-04) - HYDRAULICS, HYDRAULIC BRAKE CONNECTIONS, 4386 TRACTORS WITH SERIAL NO. 1501 AND ABOVE (07) - HYDRAULICS

1

72807C93

VALVE

PACKAGE, hyd brake valve, Also requires orifice plate 140720C1, For list of serviceable parts see power brake valve this group

1шт.

140720C1

PLATE

orifice, Req'd for use w/hyd brake valve package 72807C93

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8 x 3-1/2 pln type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90D

7шт.

3

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

7шт.

4

324273R1

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, reducer drain

1шт.

5

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

6

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1/2 C-Z hyd fld 90D swivel

1шт.

7

141817C1

HOSE

ASSY, drain to frt axle

1шт.

8

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1/2 C-Z hyd fld adj 90D

1шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.50 OD tube

1шт.

10

134575C1

TUBE ASSY.,0.375" OD

TUBE ASSY, brake valve junction

1шт.

11

134757C1

TUBE ASSY.

TUBE ASSY, brake lube

1шт.

12

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

3/8 C-Z hyd flared three way

1шт.

13

134758C1

TUBE ASSY.

TUBE ASSY, brake lube RH

1шт.

14

71864C2

90 ELBOW

90 deg reducer brake lube

1шт.

15

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

16

134760C1

TUBE ASSY.

TUBE ASSY, brake lube LH, tractors w/o diff lock

1шт.

16

134759C1

TUBE ASSY.

TUBE ASSY, brake lube, tractors w/diff lock

1шт.

17

71864C2

90 ELBOW

90 deg reducer brake lube, tractors w/o diff lock

1шт.

17

120333C2

CONNECTOR, ELEC

CONNECTOR, diff lock short, tractors w/diff lock

1шт.

18

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube, tractors w/o diff lock

1шт.

18

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, diff lock hsg, tractors w/diff lock

1шт.

19

138769C1

CLIP

hyd line

4шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

.656 x 1.312 x .074 pln

4шт.

20

134763C1

TUBE ASSY.

TUBE ASSY, brake reg valve to cyl hose

1шт.

21

134845C1

CLAMP

3/8 OD tube

3шт.

273924

SNAP RING

NUT, 1/4 cad p/t lock type 5

3шт.

22

397704R1

FLEXIBLE HOSE

HOSE ASSY, brake, Serial Range: supply-valve

2шт.

23

138798C1

TUBE

ASSY, master cyl to brake tee lower

1шт.

24

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

3/8 C-Z hyd flared three way

1шт.

25

134770C1

TUBE

ASSY, brake LH

1шт.

26

134771C1

TUBE ASSY.

TUBE ASSY, brake RH

1шт.

27

134765C1

TUBE

ASSY, regulator valve to drain tee

1шт.

28

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

90 deg brake drain

1шт.

29

9403371

CAP,37 Degree, 9/16"-18

drain tee

1шт.

30

134766C2

TUBE

ASSY, drain tee to frt axle

1шт.

31

134789C1

CLAMP

3/8 OD tube

2шт.

231-4144

NUT,1/4"-20, GB

NUT, 1/4 cad p/t lock type 5

2шт.

32

527357R1

LOCK VALVE

VALVE ASSY, brake check

1шт.

33

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

34

9411130

TEE,9/16"-18, 37 Degree x 9/16"-18, O-Ring Run

90 deg brake supply from valve

1шт.

35

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

36

134776C1

TUBE ASSY.

TUBE ASSY, master cyl to brake tee

1шт.

37

128115C91

VALVE

ASSY, regulator, For components see list of parts under details of regulator valve

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
