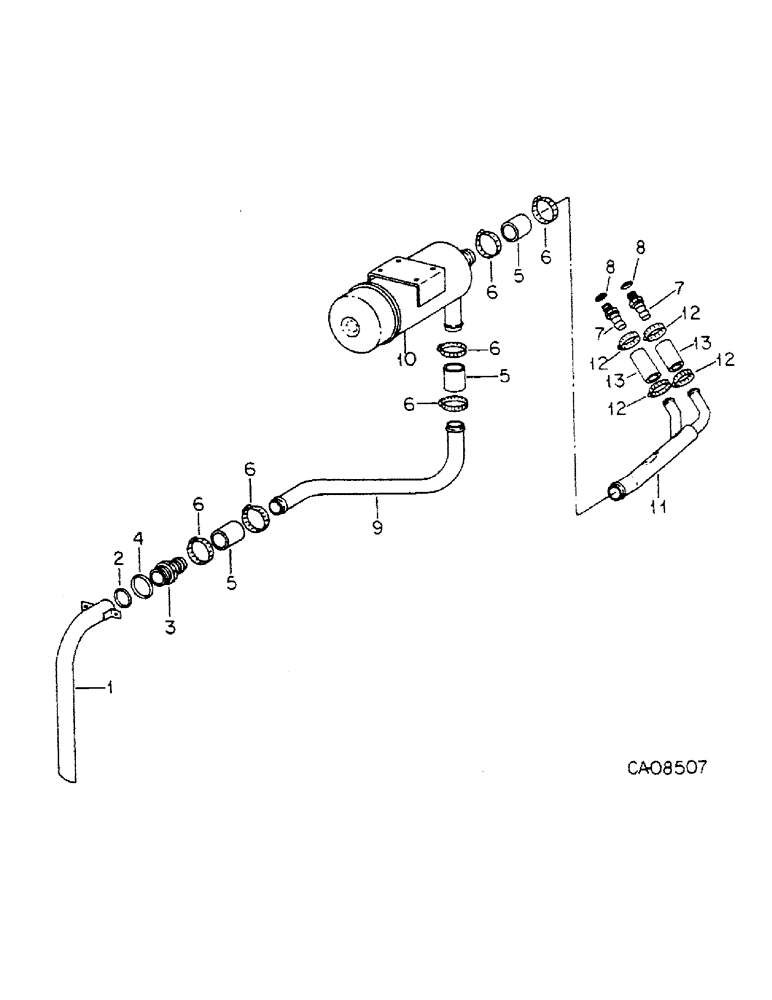

Запчасти Case IH 4386 (10-02) - HYDRAULICS, HYDRAULIC FILTER AND SUCTION, 4366 TRACTORS WITH S/N 10533 AND ABOVE, ALL 4386 TRACTORS (07) - HYDRAULICS

1

67894C1

TUBE ASSY, frt drive axle oil suction 17.75" Length

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 bevel washer

2шт.

2

382432R1

O-RING,1.984" ID x 0.139" Width

2 x 2-1/4 class 5

1шт.

3

69388C1

ADAPTER

axle to hyd filter

1шт.

4

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2-1/4 x 2-1/2 class 5

1шт.

5

134790C1

TUBE,4" Length

HOSE, suction tube, Replaces 71494C2 by also ordering 2 clamps, 224910C1

3шт.

6

224910C1

HOSE CLAMP,1.75/2.625 HD Worm, W/liner

CLAMP, 2.5 hose, Replaces 317595R1, 184368H1 or 28275R1

6шт.

7

113834C1

FITTING

1-1/4 beaded o-ring

2шт.

8

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 OD tube class 6

2шт.

9

113846C1

HYD TUBE

TUBE, suction

1шт.

10

113933C91

FILTER ASSY

hydraulic oil, For components see list of parts under detail of hydraulic oil filter

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

4шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

4шт.

11

113857C1

TUBE ASSY.

MANIFOLD ASSY, hydraulic suction

1шт.

12

224909C1

CLAMP,1.25/2.125 HD Worm, W/liner

1.5 hose, Replaces 610320C1, 338703R91 or 327080R91

4шт.

13

138709C1

HOSE,1.25" ID x 5.00"

suction, Replaces 113932C1 by also ordering 4 clamps, 224909C1

1шт.
