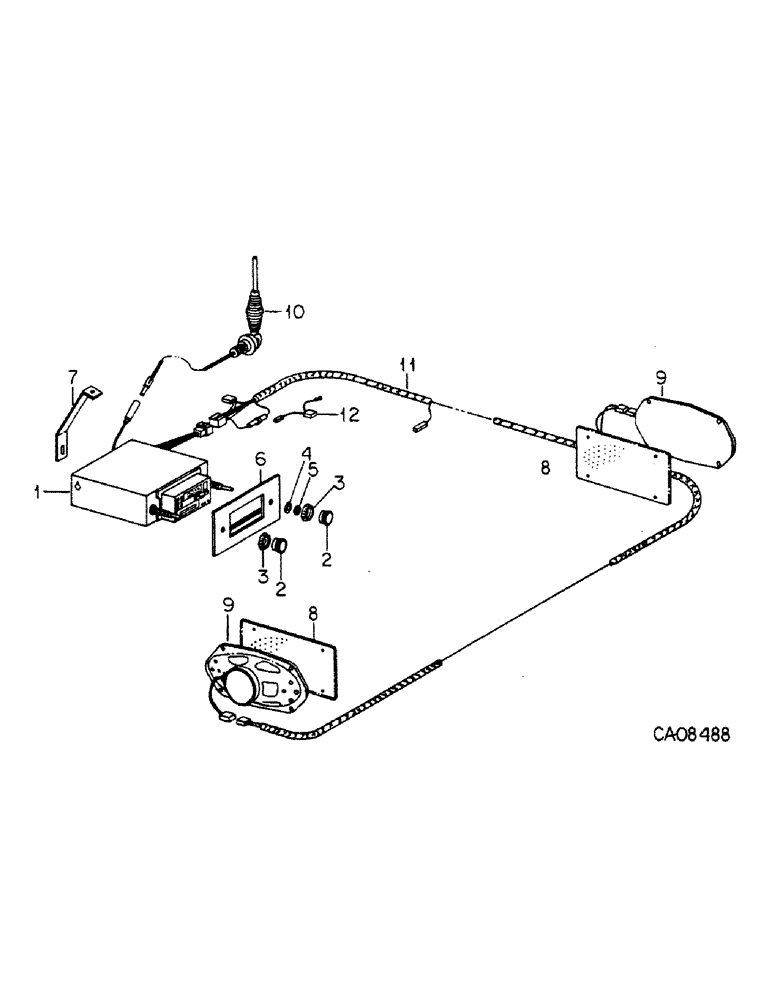

Запчасти Case IH 4386 (08-31) - ELECTRICAL, RADIO EQUIPMENT, DIGITAL CLOCK RADIO WITH CASSETTE TAPE (06) - ELECTRICAL

1

146533C4

RADIO

AM/FM cassette tape w/digital clock, audiovox, Includes ref. nos. 2 & 3

1шт.

2

146540C1

KNOB

tuning & volume

2шт.

3

146542C1

KNOB

tone & balance chrome

2шт.

4

142920C1

WASHER

shaft

2шт.

5

142921C1

NUT

small shaft

6шт.

6

118441C1

LARGE PLATE

PLATE, trim

1шт.

7

118120C1

SUPPORT

BRACKET, radio mounting

1шт.

77544C1

SCREW,1/4" - 20 x 3/4"

1/4-20 x 3/4 phc h/hd self tap

1шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 ext-int tooth lock

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

8

118258C1

PANEL

GRILLE, speaker

2шт.

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, #8-18 x 1-3/4 phc o/hdcr tap

8шт.

132718C1

FASTENER

speaker tgl type plastic

8шт.

9

70727C3

SPEAKER

4 x 8, 8 ohm, Serial Range: -2500

2шт.

9

142956C1

SPEAKER

4 x 8, 4 ohm, Start Serial: 2501

2шт.

10

111237C1

ANTENNA

ASSY, quick mount

1шт.

11

118440C2

HARNESS

ASSY, radio & speaker, Serial Range: -2500

1шт.

11

143177C1

HARNESS

ASSY, radio & speaker, Start Serial: 2501

1шт.

445635

FUSE,3 Amp, Type 1AG

1 ag 3 amperes

1шт.

12

146544C1

CABLE

ASSY, dome, Serial Range: light-radio

1шт.
