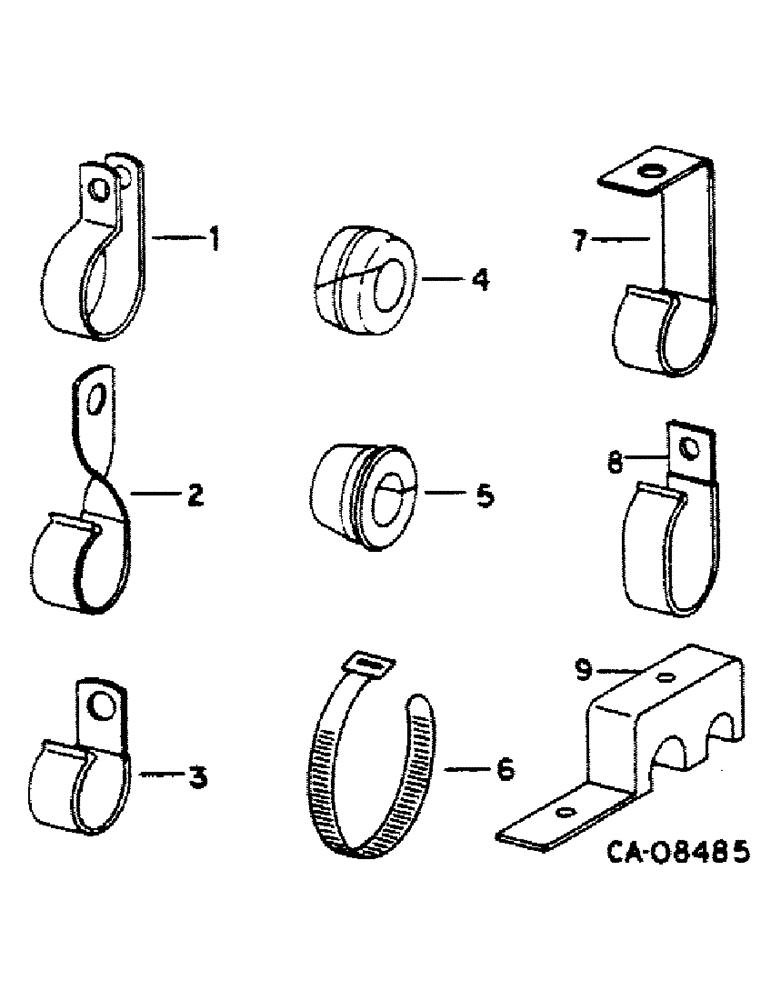

Запчасти Case IH 4386 (08-28) - ELECTRICAL, CLIPS, CLAMPS, STRAPS AND GROMMETS (06) - ELECTRICAL
№
Артикул
Название
Примечание
Количество
1
299399C1
CLIP
CLAMP, .250 closed
4шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
4шт.
1
299410C1
CLAMP,5/8", Insul, 1/4" Bolt
.625 closed
2шт.
1
301272C1
CLAMP,3/4", Insul, 1/4" Bolt
.750 closed, main harness on access panel, instrument panel
2шт.
1
299414C1
CLAMP,7/8", Insul, 1/4" Bolt
.875 closed, .25 bolt hole
2шт.
160541
SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"
1/4 x 3/4 znp p/hdcr mach
4шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
4шт.
1
299567C1
CLAMP,7/8", Insul, 3/8" Bolt
.875 closed, .38 bolt hole, main cable on access panel
4шт.
22232N
SPACER
1/8 x .500 std pipe
1шт.
2
NOT USED IN THIS APPLICATION
1шт.
3
366460R1
CABLE CLIP
CLIP, .250 dia. open, .41 bolt hole, coolant temp sender on water filter
1шт.
3
362123R1
CLIP
.250 dia. open, .47 bolt hole, intermediate & engine harness on PTO cover, engine harness rear block
2шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4 type 5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
3
362120R1
CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type
CLIP, .375 dia. open, .41 bolt hole, upper rear cab panel harness on lamp bracket, engine harness
3шт.
3
362121R1
CLIP
.375 dia. open, .28 bolt hole, front harness on radiator
2шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
2шт.
3
358986R1
CABLE CLIP
CLIP, .500 dia. open, .53 bolt hole, intermediate & engine harnesses on clutch housing
3шт.
3
363444R1
CLAMP,J, 9/16" Insul, 3/8" Bolt
CLIP, .500 dia. open, .41 bolt hole, headlight cable on radiator frame
1шт.
3
399657R1
CLIP
open, .34 bolt hole, main cable on instru panel
4шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
4шт.
3
383622R1
CLIP
.500 dia., .68 bolt hole, intermediate harness
1шт.
3
384557R1
CLIP
.500 dia. open, .28 bolt hole, RH front cab harness
3шт.
28059R1
SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"
SCREW, 1/4 x 3/4 phc h/whd tap
3шт.
3
384557R1
CLIP
.500 dia. open, .28 bolt hole, front harness
2шт.
86505867
BOLT,Hex, 1/4" - 20 x 1", Gr 5
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
2шт.
3
384557R1
CLIP
.500 dia. open, .28 bolt hole, main harness on instr. panel
3шт.
28059R1
SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"
SCREW, 1/4 x 3/4 phc h/whd tap
3шт.
3
384557R1
CLIP
.500 dia. open, .28 bolt hole, main harness on access panel
3шт.
160541
SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"
1/4 x 3/4 znp p/hdcr mach
2шт.
87716
BOLT,1/4"-20 x 1-1/4", Cl 5
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
3шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
3шт.
4
806124C1
GROMMET
.38ID x .75OD x .50, park brake cable
1шт.
4
261869C1
GROMMET, .38ID x 1.0OD x .63, front frame side plate
2шт.
4
123548H
GROMMET
.38ID x 1.31OD x .38, 4 working light fender, 2 working light cab
1шт.
4
31694H
GROMMET
.41ID x .82OD x .63, rear frame side plate
2шт.
5
NOT USED IN THIS APPLICATION
1шт.
6
289862C1
CABLE TIE,3/16" x 7"
STRAP, cable, 1.75 dia. max. bundle
1шт.
6
306132C1
CABLE TIE,14.5" L
STRAP, cable, 4.00 dia. max. bundle
1шт.
7
370821R1
CLIP,ELECTRICAL
CLIP, .375 dia. 90 deg open, front harness
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4 type 5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
120376
NUT,5/16"-18, G5
7шт.
180116
BOLT,Hex, 3/8" - 16 x 1/2", Gr 5
3/8 x 1/2 type 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
8
362666R1
CLIP
.500 dia. open, intermediate & engine harness
2шт.
9
121714C1
CLAMP
multiple cable harness, hold down on cab front
1шт.
28052R1
SCREW, 1/4 x 2 h/whd tap
1шт.
120386
WASHER
.312 x .734 x .051
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
Выбрано товаров: 59
