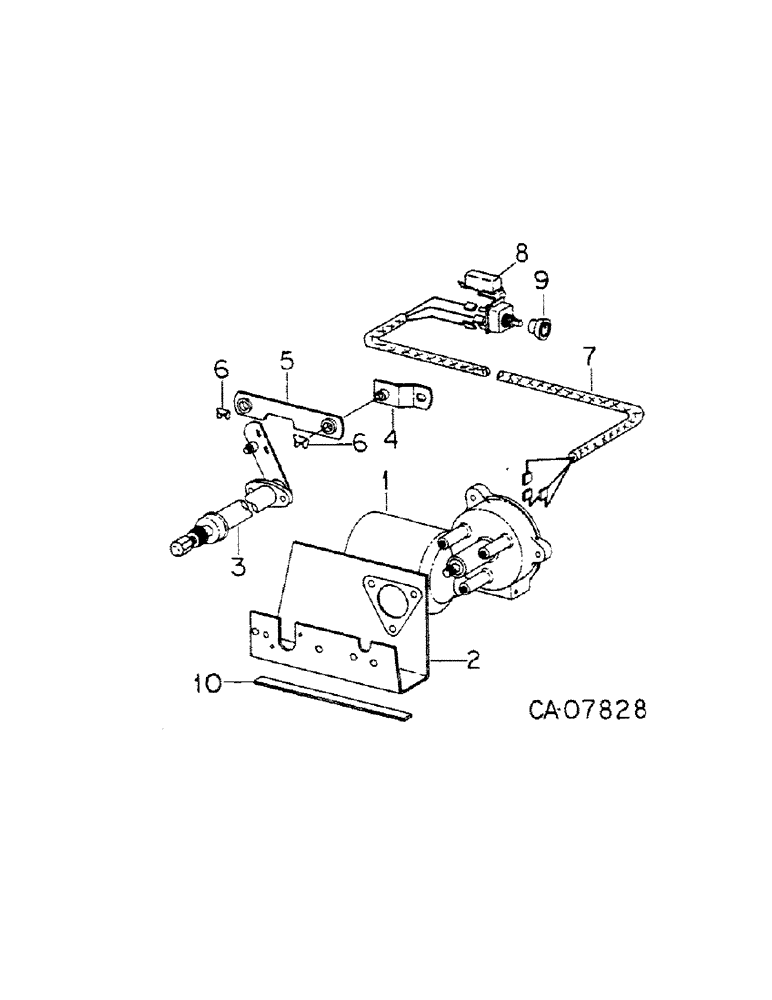

Запчасти Case IH 4386 (08-26[A]) - ELECTRICAL, WINDSHIELD WIPER MOTOR ASSY AND CONNECTIONS, 4386 TRACTORS (06) - ELECTRICAL

1

NSS

NOT SOLD SEPARAT

MOTOR, windshield wiper, Not serviced separately, Order motor assy, 1267548C91

1шт.

2

NSS

NOT SOLD SEPARAT

BRACKET, mounting, Not serviced separately, Order motor assy, 1267548C91

1шт.

923479C1

BOLT

SCREW

3шт.

118125C1

NUT

lock

1шт.

148074R1

WASHER

2шт.

118129C1

SCREW

W/LOCK WASHER

2шт.

3

NSS

NOT SOLD SEPARAT

SHAFT AND PIVOT ASSY

1шт.

Not serviced separately, order linkage kit, 1267542C91.

1шт.

1267556C1

BUTTON

NUT, knurled driver, Replaces 3016057R1

1шт.

27987R1

SCREW, 1/4NF x 1/2 znp p/hds mach

1шт.

4

NSS

NOT SOLD SEPARAT

ARM ASSY, drive

1шт.

Not serviced separately, order linkage kit, 1267542C91.

1шт.

5

NSS

NOT SOLD SEPARAT

LINK ASSY, connecting

1шт.

Not serviced separately, order linkage kit, 1267542C91.

1шт.

6

739487C1

CLIP

spring

2шт.

7

143340C1

HARNESS

ASSY, windshield wiper

1шт.

8

109222C1

SWITCH

W/CIRCUIT BREAKER, windshield wiper

1шт.

109311H

JAM NUT

7/16-28 hex. face

1шт.

9

111282C1

KNOB

wiper control

1шт.

9

111282C1GV

KNOB

wiper control

1шт.

10

NOT USED IN THIS APPLICATION

1шт.

239805R1

TERMINAL CONNECTOR

TERMINAL, locking, For motor assy, 109223C91

2шт.

239808R1

CONNECTOR, ELEC

CONNECTOR, For motor assy, 109223C91

3шт.

1267542C91

PACKAGE

KIT, wiper linkage service, Consists of ref. nos. 3 thru 6

1шт.
