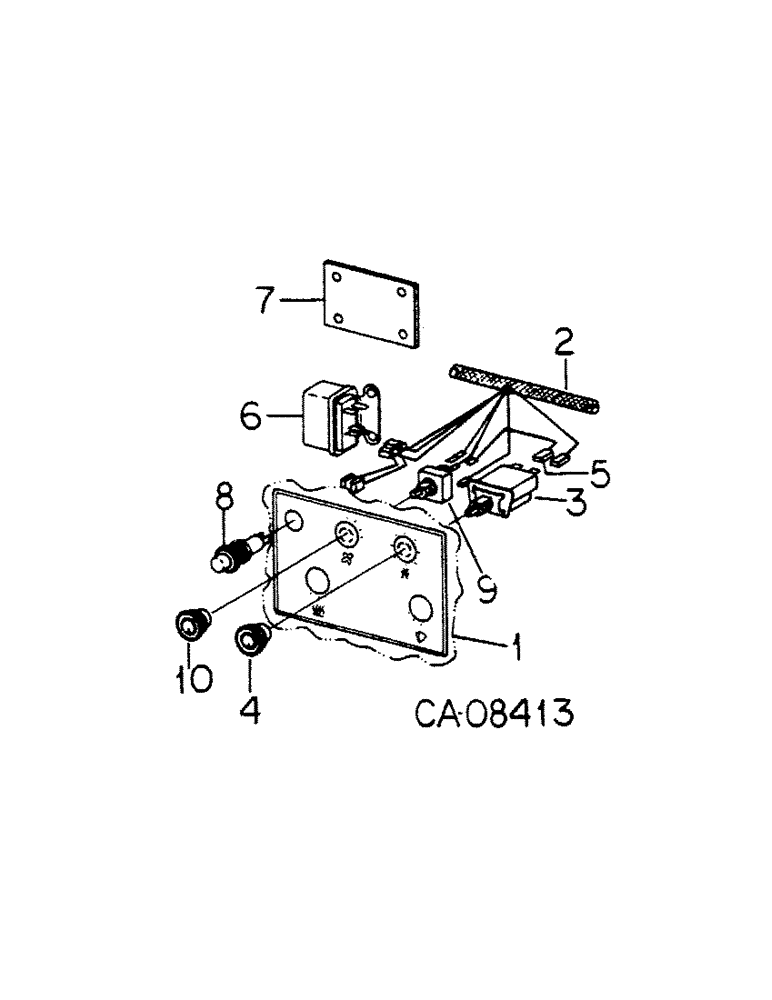

Запчасти Case IH 4386 (08-25[A]) - ELECTRICAL, CONTROL CENTER TEMPERATURE CONTROLS AND CONNECTIONS, 4386 TRACTORS (06) - ELECTRICAL

1

CAB ASSY, Refer to group 13

1шт.

2

121827C1

HARNESS

ASSY, console

1шт.

3

109268C2

SWITCH

thermostat

1шт.

109311H

JAM NUT

7/16-28 hex. face

1шт.

4

111282C1

KNOB

thermostat switch

1шт.

5

69452C1

CABLE ASSY.

CABLE ASSY, blower, Serial Range: switch-thermostat

1шт.

6

437882C1

RELAY

a/c lockout

1шт.

7

132564C1

BRACKET

a/c lockout relay mtg

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

2шт.

8

109369C91

LIGHT ASSY.

LIGHT ASSY, a/c indicator, Only serviceable items

1шт.

71652C1

LENS

1шт.

200557H1

BULB,C2V, #1815, 14V

LAMP, type C-ZV trade #1815

1шт.

9

168822C2

SWITCH

ASSY, pressurizer blower

1шт.

109311H

JAM NUT

7/16-28 hex. face

1шт.

10

111282C1

KNOB

blower switch

1шт.
