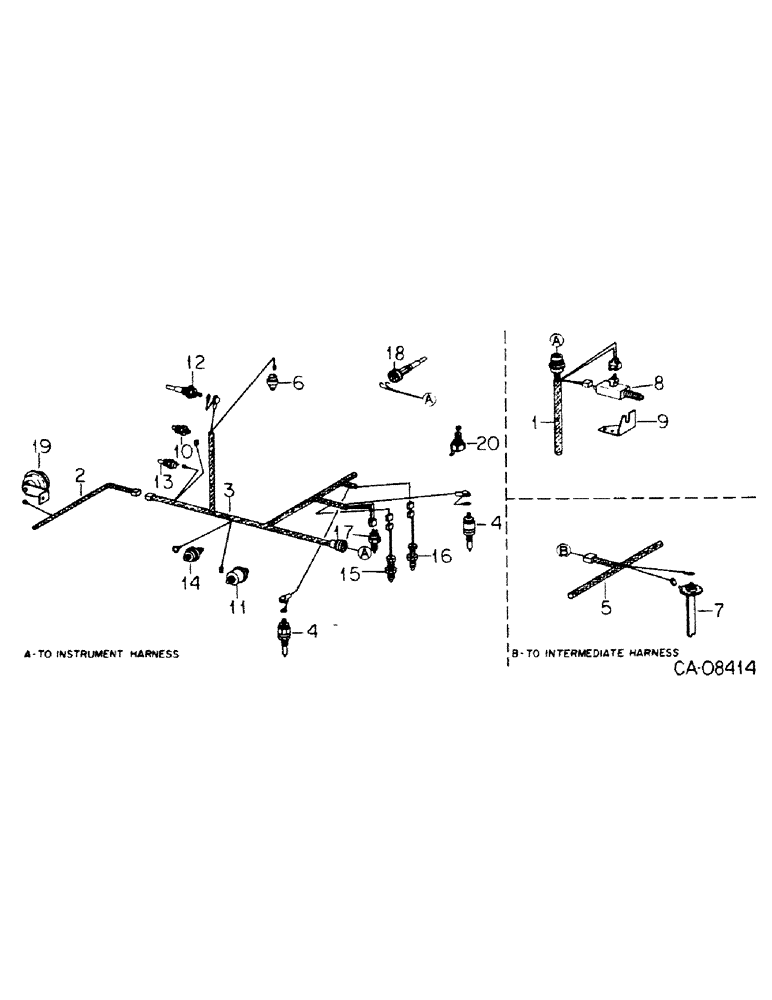

Запчасти Case IH 4386 (08-23) - ELECTRICAL, CHASSIS WIRING, SWITCHES AND RELATED PARTS, 4386 TRACTORS (06) - ELECTRICAL

1

121828C5

HARNESS

ASSY, vehicle main

1шт.

For service on this harness refer to electrical harness service kits under p/n 461835C91.

1шт.

28269R1

SCREW, no. 6 x 1/2 tap, Serial Range: -1500

1шт.

1

130971C1

HARNESS

ASSY, vehicle main, Start Serial: 1501

1шт.

For service on this harness refer to electrical harness service kits under p/n 461835C91.

1шт.

2

121999C1

HARNESS

ASSY, vehicle front

1шт.

3

130939C1

HARNESS

ASSY, vehicle engine, tractors w/transducers 704628C1 and 121624C1 also require, Serial Range: -1500

1шт.

For service on this harness refer to electrical harness service kits under p/n 461832C91.

1шт.

130950C1

CABLE

adapter

2шт.

3

131013C1

HARNESS

ASSY, vehicle engine, Start Serial: 1501

1шт.

For service on this harness refer to electrical harness service kits under p/n 461832C91.

1шт.

4

130979C1

SWITCH

ASSY, brake wear warning

2шт.

121814C1

RETAINER

GASKET, boot retainer

2шт.

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

5

122000C1

HARNESS

ASSY, vehicle rear

1шт.

6

3224405R91

RESTRICTION SWITCH

SWITCH ASSY, air cleaner vacuum, Serial Range: -1500

1шт.

389908R91

ADAPTER

ASSY, vacuum switch

1шт.

405211R1

CABLE PULLING GRIP

CABLE ASSY, vacuum, Serial Range: switch-ground

1шт.

6

3224405R91

RESTRICTION SWITCH

SWITCH ASSY, air cleaner vacuum, Start Serial: 1501

1шт.

7

SENDER, fuel gauge, Refer to grp 12

1шт.

8

121629C2

SWITCH

ASSY, neutral starting, Serial Range: -1500

1шт.

8

131107C1

SWITCH

ASSY, neutral starting, Start Serial: 1501

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2-NF jam type 5

2шт.

9

114246C1

BRACKET

neutral switch mounting, Serial Range: -1500

1шт.

9

141810C1

BRACKET

neutral switch mounting, Start Serial: 1501

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

10

121756C2

SENSOR

SENDER, coolant temperature

1шт.

384396R1

SPADE TERMINAL,Male

TERMINAL, coolant sender

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

11

130707C3

SENDER UNIT

SENDER, engine oil pressure

1шт.

365501R1

TERMINAL CONNECTOR

TERMINAL, oil pressure sender

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

12

449791C1

SWITCH

ASSY, low coolant level, probe

1шт.

121814C1

RETAINER

probe boot

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

13

130861C1

SWITCH

ASSY, coolant hi-temp light

1шт.

14

121817C1

SWITCH

ASSY, engine oil pressure, Serial Range: -1500

1шт.

9409938

TEE,1/8"-27 Fem

1/8-27 znp auto pipe

1шт.

105404

PIPE,Nipple, 1/8" NPT x 3/4"

NIPPLE, 1/8 x 3/4 pln close pipe

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

14

392249R92

SWITCH

engine oil pressure, Start Serial: 1501

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

15

704628C1

GAUGE ASSY.

TRANSMITTER, tachometer-transducer-rpm, Serial Range: -1500

1шт.

121552C1

INSULATOR

transducer boot

1шт.

15

130903C2

TRANSMITTER

tachometer-transducer-rpm, Start Serial: 1501

1шт.

16

121624C1

SENSOR

TRANSMITTER, speedometer-transducer-mph, Serial Range: -1500

1шт.

121522C1

INSULATOR, transducer boot

1шт.

16

130908C2

TRANSMITTER

speedometer-transducer-mph, Start Serial: 1501

1шт.

138506

LOCK WASHER,Ext Tooth, 3/4"

WASHER, 3/4 ext lock

1шт.

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 class 5

1шт.

17

107637C1

GAUGE ASSY.

SENDER, differential low oil level

1шт.

18

130898C2

ELECTRICAL GAUGE

GAGE, exhaust thermocouple

1шт.

19

9000239

HORN

ASSY, electric

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

20

131202C1

SWITCH

ASSY, differential lock

1шт.

13133C2

SWITCH ASSY, digital engine oil pressure, (replaces 1312021), Serial Range: -1500

1шт.

9409943

TEE,1/8"-27 NPTF Fem x 1/8"-27 NPTF Male Run

1/8-27 pln int/ext/int auto pipe

1шт.

130838C1

RECTIFIER

DIODE ASSY, digital tachometer transducer, Serial Range: -1500

2шт.

130843C1

HARNESS

ASSY, low pressure switch to compressor, Serial Range: -1500

1шт.
