(08-08) - ELECTRICAL, BATTERY AND CONNECTIONS, 4386 TRACTORS WITH SERIAL NO. 1500 AND BELOW

Запчасти Case IH 4386 (08-08) - ELECTRICAL, BATTERY AND CONNECTIONS, 4386 TRACTORS WITH SERIAL NO. 1500 AND BELOW (06) - ELECTRICAL

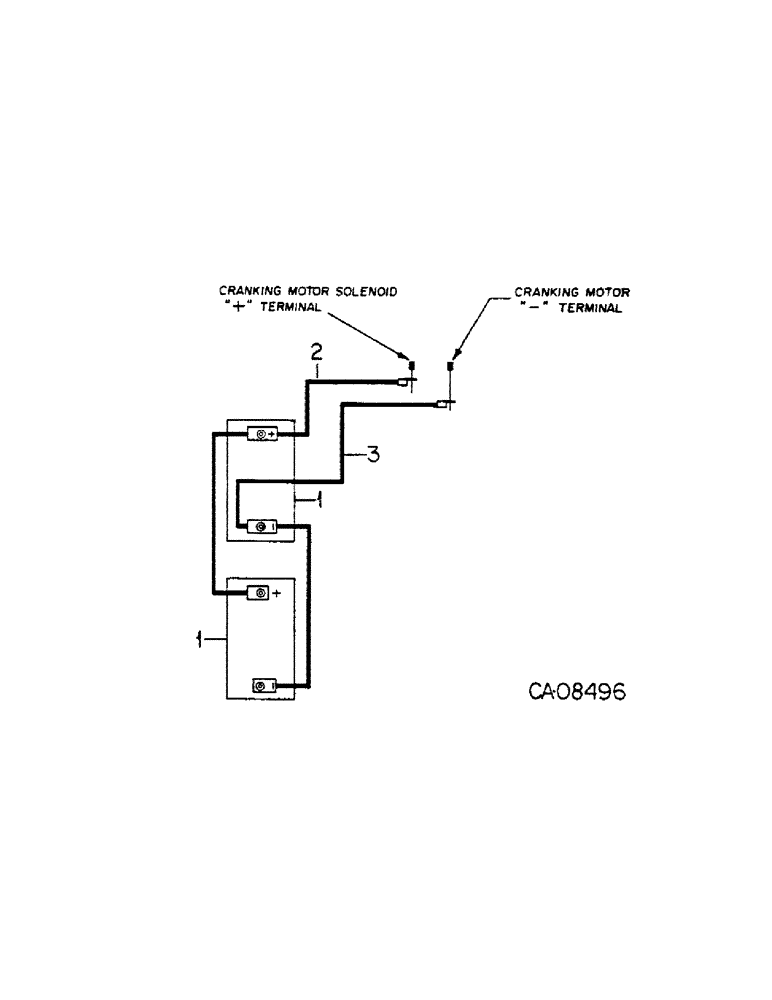

Схема запчастей Case IH 4386 - (08-08) - ELECTRICAL, BATTERY AND CONNECTIONS, 4386 TRACTORS WITH SERIAL NO. 1500 AND BELOW (06) - ELECTRICAL
1
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

IHCLM31S

BATTERY, maintenance free

2шт.

522639C1

NUT

battery terminal special

4шт.

2

121998C1

CABLE ASSY.

CABLE ASSY, Serial Range: battery-solenoid

1шт.

364910R1

BOOT

INSULATOR, terminal boot

2шт.

3

121997C1

CABLE ASSY.

CABLE ASSY, Serial Range: battery-ground

1шт.

313445C1

CLAMP

cable

2шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 ext-int tooth lock

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.
