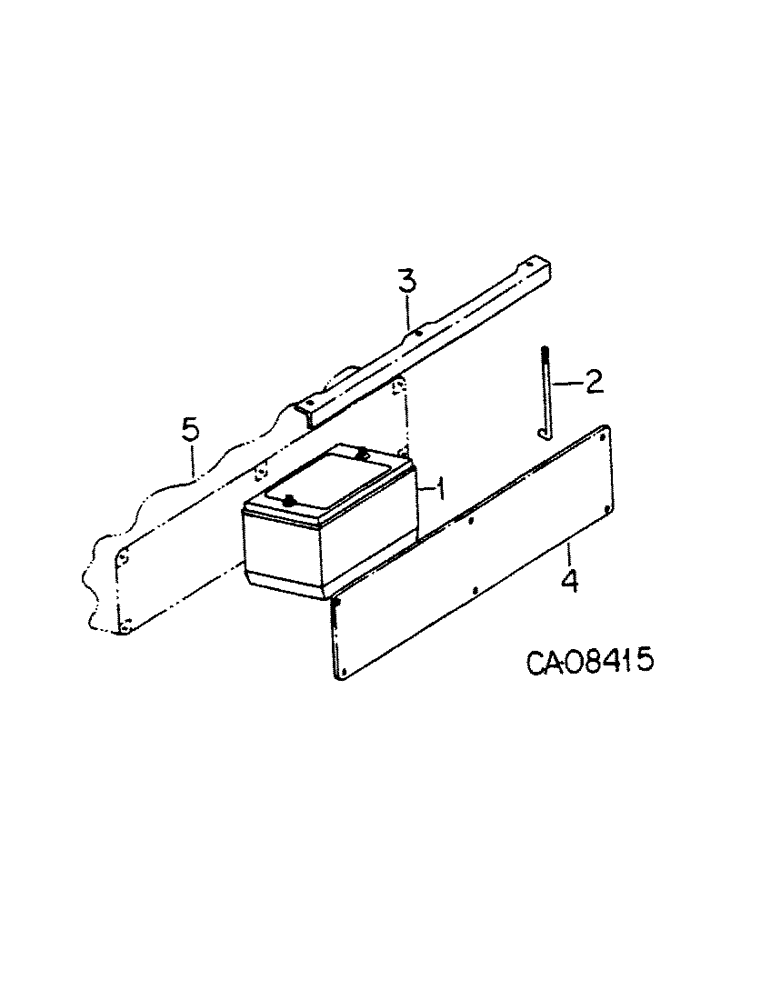

Запчасти Case IH 4386 (08-06[A]) - ELECTRICAL, BATTERY AND MOUNTING, 4386 TRACTORS WITH SERIAL NO. 1500 AND BELOW (06) - ELECTRICAL

1

IHCLM31S

BATTERY, maintenance free

2шт.

522639C1

NUT

battery terminal special

4шт.

2

134796C1

ROD

battery hold down

3шт.

7500032

BUSHING

NUT, 5/16 wing

3шт.

3

134798C1

ANGLE

battery hold down

1шт.

4

134793C1

COVER

battery box

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

6шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

6шт.

5

BOX ASSY, battery, Part of front frame assy, Refer to group 9

1шт.
