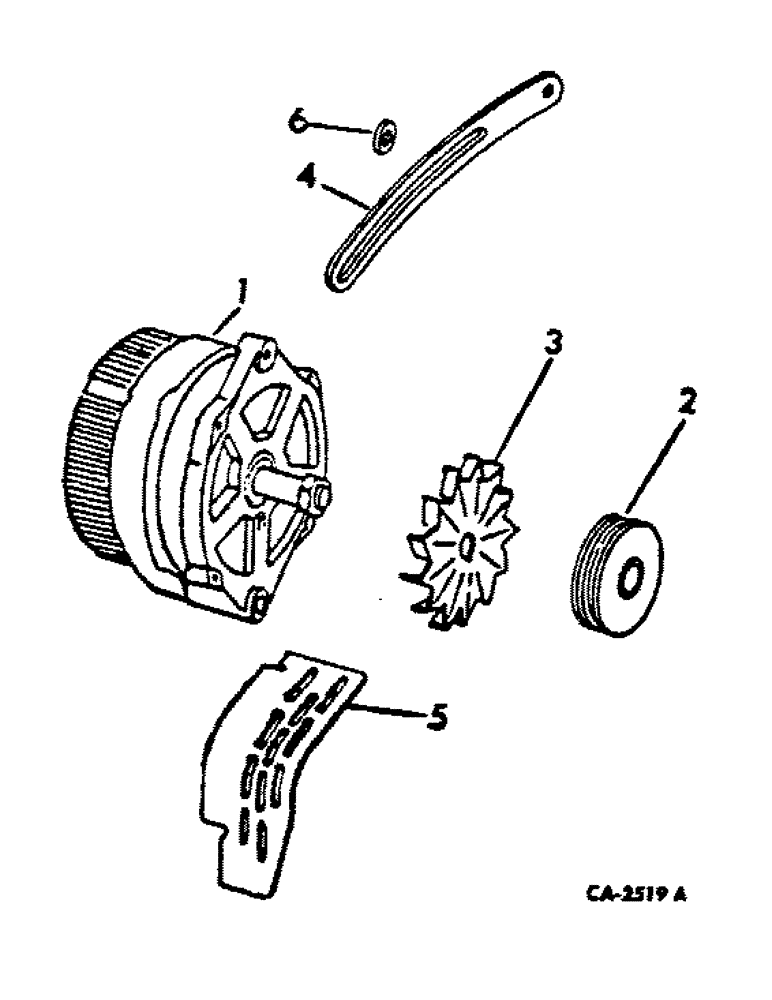

Запчасти Case IH 4386 (08-01) - ELECTRICAL, ALTERNATOR-GENERATOR PULLEY, FAN AND SHIELD (06) - ELECTRICAL

1

1102375

ALTERNATOR

GENERATOR, alternator w/reg, Delco, 548237R91, For service replacement furnish 1103184, For all 4366 tractors and 4386 tractors, For components details refer to alternator-generator listing this group

1шт.

1

1103160

ALTERNATOR

GENERATOR, alternator w/reg, Delco, Replaces 1102922, For service replacement furnish 1103184, For 4386 tractors, For component details refer to alternator-generator listing this group

1шт.

1

1103184

ALTERNATOR

GENERATOR, alternator w/reg, Delco, 72 ampere metric, For component details refer to alternator-generator listing this group

1шт.

1

87297246

REMAN-ALTERNATOR

Reman for New PN 1103184

1шт.

1

87297247

CORE-ALTERNATOR

Return Part Number

1шт.

1

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

1

103801A1C

CORE-ALTERNATOR

Return Part Number, 12 VOLT, 61 AMP Alternator

1шт.

1

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

1

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 72 ampere

1шт.

1

103804A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

ZAP804A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 100 AMP Alternator (Higher Amp version of 72 amp 103804A1R)

1шт.

1

103804A1C

CORE-ALTERNATOR

Return Part Number

1шт.

931715R1

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

BOLT, M10 x 90 pln class 8.8

1шт.

905262R1

NUT,M10 x 1.5, Cl 10

NUT, M10 phc p/t class 10

1шт.

30281R1

NUT,M6, Cl 10

NUT, M6 class 10

1шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

1шт.

2

537070R1

PULLEY

PULLEY, alternator-generator double

1шт.

3

221425R1

FAN

FAN, alternator-generator

1шт.

4

532418R1

BRACE

BRACE, alternator-generator

1шт.

NLS

NO LONGER SERVICED

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

537326R1

BOLT

SCREW, 5/16-18 x 1-1/2 znd hex-hd cap, English alt-gen

1шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 distorted thd lock, English alt-gen

1шт.

131030C1

BOLT,M8 x 40mm

BOLT, M8 x 40 special, metric alt-gen

1шт.

30382R1

NUT,M8 x 1.25, Cl 10

LOCK NUT, M8 phc p/t class 10, Metric alt-gen

1шт.

25552R1

WASHER,.344" x 1" x .098", HDN

WASHER, .344 x 1.0 x .098 hardened or

1шт.

30183R1

WASHER,M8 x 21.5 x 2.5, HT

WASHER, 8.8 x 21 x 2.5 MM phc

1шт.

5

121525C1

PROTECTOR

SHIELD ASSY, alternator

1шт.

6

557265R1

WASHER

WASHER, .344 x 1.0 x .105 flat

1шт.
