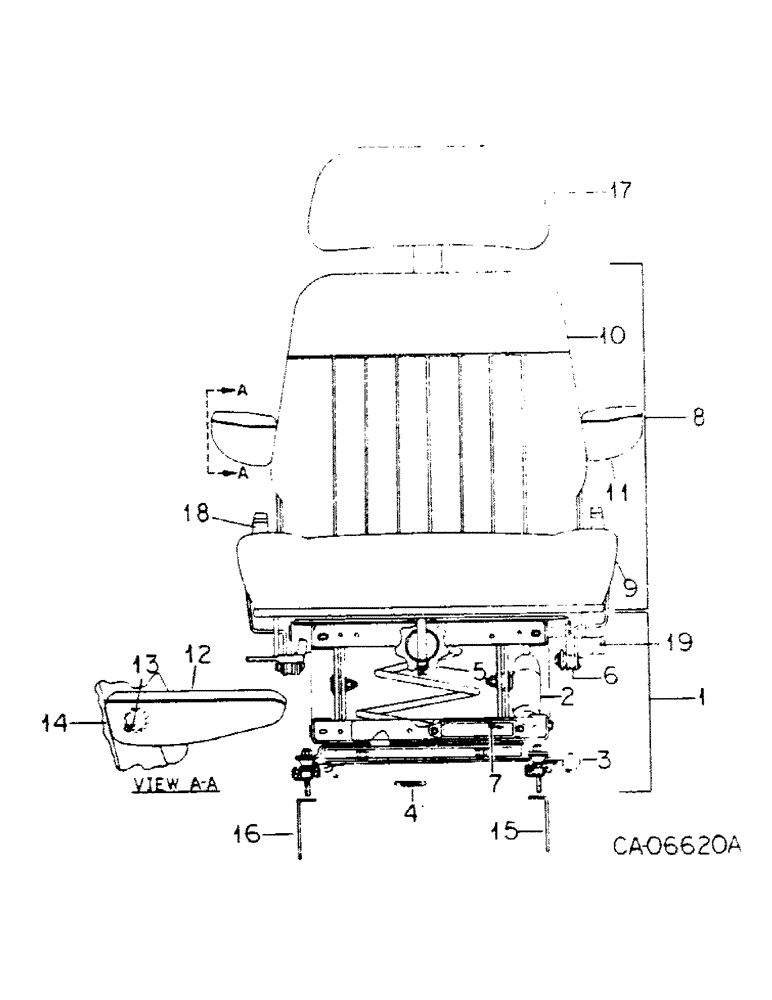

Запчасти Case IH 4386 (13-21) - CAB AND SUPERSTRUCTURE, DELUXE SWIVEL SEAT, 4386 TRACTOR (05) - SUPERSTRUCTURE

76440C91

SEAT ASSY, swivel w/arm rests, Consists of ref nos. 1 thru 14, Serial Range: -2500

1шт.

147079C91

SEAT ASSY.

SEAT ASSY, swivel w/seat belt and arm rest, Consists of ref nos. 1 thru 14, Start Serial: 2501

1шт.

1

118579C91

SUPPORT

ASSY, seat, Serial Range: -2500

1шт.

1

1250400C91

SUPPORT ASSY, seat, Start Serial: 2501

1шт.

2

64918C1

SHOCK ABSORBER

ABSORBER, shock

1шт.

3

132780C1

SLIDE

ASSY, seat adj

1шт.

4

64926C1

SPRING

slide adjuster

2шт.

5

118578C1

BUTTON

KNOB, weight adjustment

1шт.

6

64922C1

KIT

BUSHING, suspension, Serial Range: -2500

1шт.

6

1250509C1

BUSHING

suspension, Start Serial: 2501

1шт.

7

139061C1

INDICATOR

ride height

1шт.

8

118581C91

SEAT

ASSY, vertical acting, Serial Range: -2500

1шт.

8

147075C91

SEAT ASSY, vertical acting w/seat belt, Start Serial: 2501

1шт.

9

142885C1

CUSHION

seat

1шт.

For 76440C91 seat only.

1шт.

9

143430C1

SEAT

CUSHION, seat

1шт.

For 147079C91 seat only.

1шт.

10

142886C1

CUSHION

back

1шт.

For 76440C91 seat only.

1шт.

10

143431C1

SEAT

CUSHION, back

1шт.

For 147079C91 seat only.

1шт.

11

118574C1

ARMREST ASSY.

ARMREST ASSY, LH

1шт.

For 76440C91 seat only.

1шт.

11

143432C1

ARM

REST ASSY, LH

1шт.

For 147079C91 seat only.

1шт.

12

118575C1

RESTRICTOR

ARMREST ASSY, RH

1шт.

For 76440C91 seat only.

1шт.

12

143432C1

ARM

REST ASSY, RH

1шт.

For 147079C91 seat only.

1шт.

13

139067C1

SCREW,1/4" - 20 x 0.38"

armrest stop

2шт.

14

139071C1

PLATE

cover LH

1шт.

14

139072C1

PLATE

cover RH

1шт.

27049R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 5/8"

SCREW, no. 10-16 x 5/8 phc p/hdcr tap

2шт.

15

135916C1

CHANNEL

swivel seat LH

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

120376

NUT,5/16"-18, G5

2шт.

16

135906C1

CHANNEL

swivel seat RH

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

120376

NUT,5/16"-18, G5

2шт.

17

143435C1

CUSHION

upper backrest

1шт.

For 147079C91 seat only.

1шт.

143434C1

BELT

1шт.

For 147079C91 seat only.

1шт.

18

1267543C1

KNOB

ASSY, backrest adj

2шт.

For 147079C91 seat only.

1шт.

19

1267545C1

LEVER

ASSY, seat tilt

1шт.

For 147079C91 seat only.

1шт.
