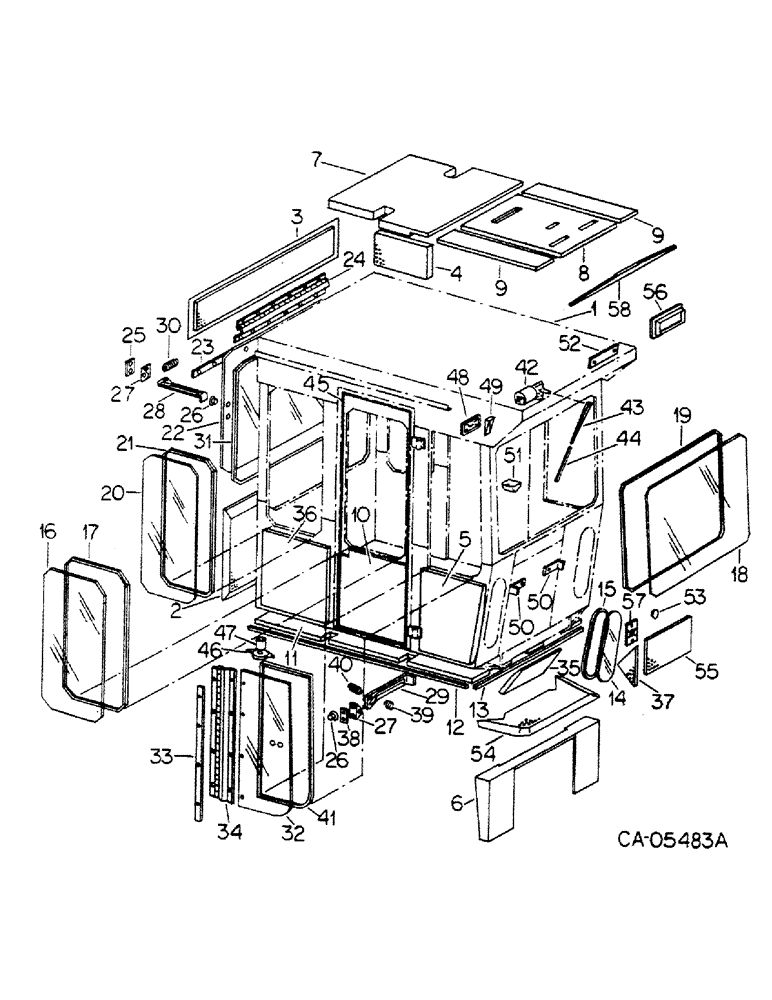

Запчасти Case IH 4386 (13-08) - CAB AND SUPERSTRUCTURE, CAB AND ACCESSORIES, 4386 TRACTORS (05) - SUPERSTRUCTURE
№
Артикул
Название
Примечание
Количество
1
127483C93
CAB
ASSY, For component details see cab assembly listing, Serial Range: -1500
1шт.
1
138871C4
CAB
ASSY, For component details see cab assembly listing, Start Serial: 1501
1шт.
432386
PLUG
button
2шт.
142167C1
PLUG
antenna opening
2шт.
71869C1
GROMMET
2шт.
1017968C1
PLUG, brake valve stem opening
1шт.
71870C1
GROMMET
5шт.
147189C2
MAT
carpeted floor
1шт.
2
132667C1
SHEET
lower rear wall upholstery, Serial Range: -2500
1шт.
2
147139C1
SHEET
lower rear wall upholstery, Start Serial: 2501
1шт.
3
132669C1
SHEET
upper RR plate cover upholstery, Serial Range: -1500
1шт.
3
138840C1
SHEET
upper RR plate cover upholstery, Serial Range: 1501-2500
1шт.
3
147145C1
SHEET
upper RR plate cover upholstery, Start Serial: 2501
1шт.
4
132670C1
STRIP
SHEET, upper rear side wall upholstery, Serial Range: -2500
2шт.
4
147134C1
STRIP
upper rear side wall upholstery, Start Serial: 2501
2шт.
5
132664C1
SHEET
front side wall left upholstery, Serial Range: -2500
1шт.
5
147141C1
SHEET
front side wall left upholstery, Start Serial: 2501
1шт.
5
132663C1
SHEET
front side wall right upholstery, Serial Range: -2500
1шт.
5
147140C1
SHEET
front side wall right upholstery, Start Serial: 2501
1шт.
6
132672C2
COVER
ASSY, frt cowl sewn, Serial Range: -2500
1шт.
6
147146C1
COVER
ASSY, frt cowl sewn, Start Serial: 2501
1шт.
7
132668C1
SHEET
roof rear upholstery, Serial Range: -2500
1шт.
7
147147C1
SHEET
roof rear upholstery, Start Serial: 2501
1шт.
8
132678C1
SHEET
roof front center upholstery, Serial Range: -1500
1шт.
8
138665C1
SHEET
roof front center upholstery, Serial Range: 1501-2500
1шт.
8
147096C1
SHEET
roof front center upholstery, Start Serial: 2501
1шт.
9
132666C1
SHEET
roof front LH upholstery, Serial Range: -1500
1шт.
9
132665C1
SHEET
roof front RH upholstery, Serial Range: -1501
1шт.
9
138666C2
SHEET
roof front upholstery, Serial Range: 1501-2500
1шт.
9
147149C1
SHEET
roof front upholstery, Start Serial: 2501
1шт.
10
129418C2
SHEET
lower door LH upholstery, Serial Range: -250
1шт.
10
147142C1
SHEET
lower door LH upholstery, Start Serial: 2501
1шт.
10
129419C1
DOOR
SHEET, lower door RH upholstery, Serial Range: -2500
1шт.
10
147143C1
SHEET, lower door RH upholstery, Start Serial: 2501
1шт.
11
129445C2
MAT
floor, Serial Range: -1500
1шт.
11
138835C1
MAT
floor, Serial Range: 1501-2500
1шт.
11
147192C2
MAT
floor, Start Serial: 2501
1шт.
12
GASKET, platform long foam, Furnish 33.8 inches from 4 ft length 43213C1
3шт.
13
GASKET, platform short foam, Furnish 25.2 inches from 4 ft length 73213C1
2шт.
14
129338C1
GLASS
cab front lower window
2шт.
15
129326C1
SEAL
cab front lower window molding
2шт.
16
68646C1
GLASS
cab door
2шт.
17
68650C1
MOLDING
STRIP, door window glass molding
2шт.
18
129339C1
GLASS
cab front window
1шт.
19
129325C1
MOLDING
SEAL, front window glass molding
1шт.
20
129337C1
GLASS
cab side rear window
2шт.
21
129327C1
SEAL, side rear window molding
2шт.
22
117967C1
GLASS
rear window
1шт.
23
117970C1
STRIP
rear window hinge
1шт.
24
117969C1
HINGE
rear window
1шт.
160544
SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"
6шт.
25519R1
NUT,1/4"-20, G8
1/4-20 hex
6шт.
27097R1
SCREW
1/4-20 x 7/8 cr-phc pan hd mach
6шт.
16560R1
WASHER
.266 x .625 x .049 phc
6шт.
111626C1
NUT
1/4-20 nylon insert phc lock
6шт.
25
117973C1
STRIP
sector arm pivot
2шт.
26
109171C1
BUSHING,6.6mm ID x 8.74mm OD x 6.46mm L
22шт.
27
109588C1
BRACKET
sector arm pivot
4шт.
16560R1
WASHER
.266 x .625 x .049 pln
24шт.
111626C1
NUT
1/4-20 nylon insert
12шт.
27097R1
SCREW
1/4-20 x 7/8 znd phc pan-hd cr-rec
12шт.
28
111412C1
ARM
quarter window sector LH
2шт.
27930R1
PIN
3/8 x .500 n/d phc type 1 hd
1шт.
111627C1
PIN
3/8 x 1-1/4 phc headed
1шт.
29
111413C1
ARM
quarter window sector RH
2шт.
27930R1
PIN
3/8 x .500 n/d phc type 1 hd
1шт.
27897R1
PIN, 3/8 x 7/8 phc headed
1шт.
118140C1
NUT
FASTENER, push-out nut
8шт.
30
109590C1
SPRING
sector arm compression
2шт.
111365C1
CONE WASHER
coned
4шт.
31
SEAL, rear window glass, Use 139 in. from a roll marked 64518C1
1шт.
32
117966C1
GLASS
side front window
2шт.
33
117974C1
STRIP, side front window hinge
2шт.
34
109169C1
HINGE
side front window
2шт.
27096R1
SCREW
1/4-20 x 5/8 cr-phc pan-hd mach
8шт.
25519R1
NUT,1/4"-20, G8
1/4-20 hex
8шт.
35
129434C2
SHEET, access plate upholstery, Serial Range: -2500
1шт.
35
147191C1
SHEET
access plate upholstery, Start Serial: 2501
1шт.
534441R1
FLUID
ADHESIVE, 1 qt upholstery
1шт.
36
132671C1
SHEET
lower rear side wall upholstery, Serial Range: -2500
2шт.
36
147190C1
SHEET
lower rear side wall upholstery, Start Serial: 2501
2шт.
37
129483C2
STRIP
orbitrol mount upholstery, Serial Range: -2500
2шт.
37
147133C1
STRIP
oribtrol mount upholstery, Start Serial: 2501
1шт.
38
117973C1
STRIP
PAD, sector arm pivot
2шт.
16560R1
WASHER
.266 x .625 x .036 phc
8шт.
27097R1
SCREW
1/4-20 x 7/8 phc pan-hd cr rec cst
4шт.
111626C1
NUT
1/4-20 phc nylon insert
4шт.
39
109585C1
SPRING
pivot compression
2шт.
40
109590C1
SPRING
sector arm compression
2шт.
111365C1
CONE WASHER
coned
4шт.
118140C1
NUT
FASTENER, push on
1шт.
41
SEAL, side window glass, Use 91.7 in from a roll marked 64518C1
2шт.
42
MOTOR ASSY, windshield wiper, For components, See list of parts under windshield wiper motor in group 8
1шт.
27987R1
SCREW, 1/4NF x 1/2 znp p/hds mach
1шт.
43
804653C91
ARM ASSY.
ARM ASSY, windshield wiper
1шт.
44
109225C1
WINDSHIELD WIPER
BLADE ASSY, windshield wiper
1шт.
26962R1
SCREW
5-40 x 3/4 phc slt-pan-hd mach
1шт.
12539R1
NUT, no. 5 phc mach screw
1шт.
45
71243C1
STRIP
PING, weather
2шт.
46
70395C2
ISOLATOR
cab
4шт.
24894R1
BOLT,Hex, 3/4" - 10 x 4", Gr 8
4шт.
70330C1
WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk
3/4 x 2-1/2 x 1/4 znd
4шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
4шт.
27330R1
NUT, 3/4-10 znd thick hex type 8
4шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
SCREW, 1/2-13 x 1-1/4 znd hex-hd cap
8шт.
495-11053
WASHER,1/2", SAE
19/32 x 1-1/16 x .074 znd
8шт.
9413967
LOCK NUT,1/2"-13, GB
NUT, 12-13 cad prevailing torque hex lock
8шт.
47
69408C1
SPACER
cab isolator
4шт.
48
533511R1
MIRROR
rear view
1шт.
49
68669C1
BRACKET
rear view mirror
1шт.
132848
SCREW,Sl Rnd Hd, #10 - 24 x 1"
no. 10 x 1 znp r/hds mach
2шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
2шт.
50
68670C1
CLIP
hose
4шт.
77544C1
SCREW,1/4" - 20 x 3/4"
1/4-20 x 3/4 phc h/whd tap
4шт.
51
68671C1
ASH TRAY
TRAY ASSY, ash
1шт.
24216R1
SCREW, no. 6 x 1/2 p/hds tap
2шт.
52
70692C1
LARGE PLATE
PLATE, radio cover, Serial Range: -1170
1шт.
52
75484C1
PLATE, radio cover, Serial Range: 1171-1500
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8-16 x 1 znd hex-hd cap
2шт.
120394
WASHER,3/8", SAE
WASHER, 13/32 x 13/16 x .051 znd
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
53
71869C1
GROMMET
PLUG, orbitrol mtg bracket
1шт.
54
132676C1
SHEET
top console upholstery, Serial Range: -2500
1шт.
54
147148C1
SHEET
top console, Start Serial: 2501
1шт.
55
132802C1
SHEET
center firewall upholstery LH, Serial Range: -2500
1шт.
55
147138C1
SHEET
center firewall upholstery LH, Start Serial: 2501
1шт.
55
132893C1
SHEET
center firewall upholstery RH, Serial Range: -1500
1шт.
55
134935C1
SHEET
center firewall upholstery RH, Serial Range: 1501-2500
1шт.
55
147144C1
SHEET
center firewall upholstery RH, Start Serial: 2501
1шт.
56
132677C1
BEZEL
climate control
1шт.
129474C1
WASHER
use to protect vinyl
1шт.
57
74289C1
BAR
harness mtg
1шт.
25519R1
NUT,1/4"-20, G8
1/4 phc type 8
2шт.
58
74290C1
ISOLATOR
STRIP, seal
1шт.
474517C2
GASKET
SEALANT, gasket eliminator, Use w/plug 142167C1
1шт.
Выбрано товаров: 140
