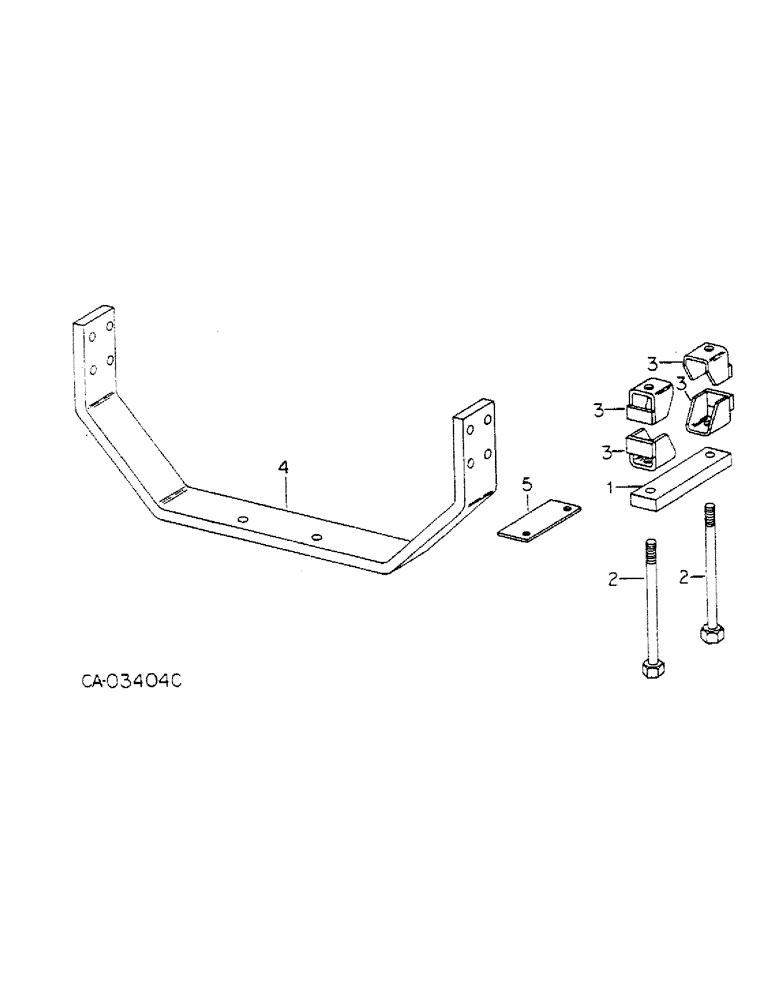

Запчасти Case IH 4386 (07-32) - DRIVE TRAIN, AXLE MOUNTS (04) - Drive Train

1

132935C1

STRAP

axle mtg, Replaces 68578C1

4шт.

Quantities shown are per axle.

1шт.

2

68579C2

BOLT

ASSY, axle, Replaces 68579C1

8шт.

Quantities shown are per axle.

1шт.

390311C1

WASHER,15/16" x 1 3/4" x .134", HDN

.938 x 1.750 x .134 hdn

8шт.

232-46114

LOCK NUT,7/8"-14, GC

NUT, 7/8-NF cad p/t lock type 8

8шт.

3

132934C1

CHANNEL

ASSY, axle clamp, Replaces 68580C1

16шт.

Quantities shown are per axle.

1шт.

4

68581C1

BRACE

SUPPORT ASSY, front axle

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

2шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

WASHER, LOCK, 5/8"

2шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 x .074 znd

2шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

8шт.

116124

LOCK WASHER,3/4"

3/4"

8шт.

427362

NUT, 3/4-10 phc hex.

8шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

.812 x 1.500 x .134 hdn

8шт.

4

145310C1

SUPPORT

ASSY, rear axle

1шт.

271725

SNAP RING,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8 x 2-1/2 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

280954

NUT,3/4"-10, G5

8шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

.812 x 1.500 x .134 hdn

8шт.

5

138978C1

SHIM

BAR, axle brace, 1 or as required, 4386 tractors, Serial Range: -1526

1шт.
