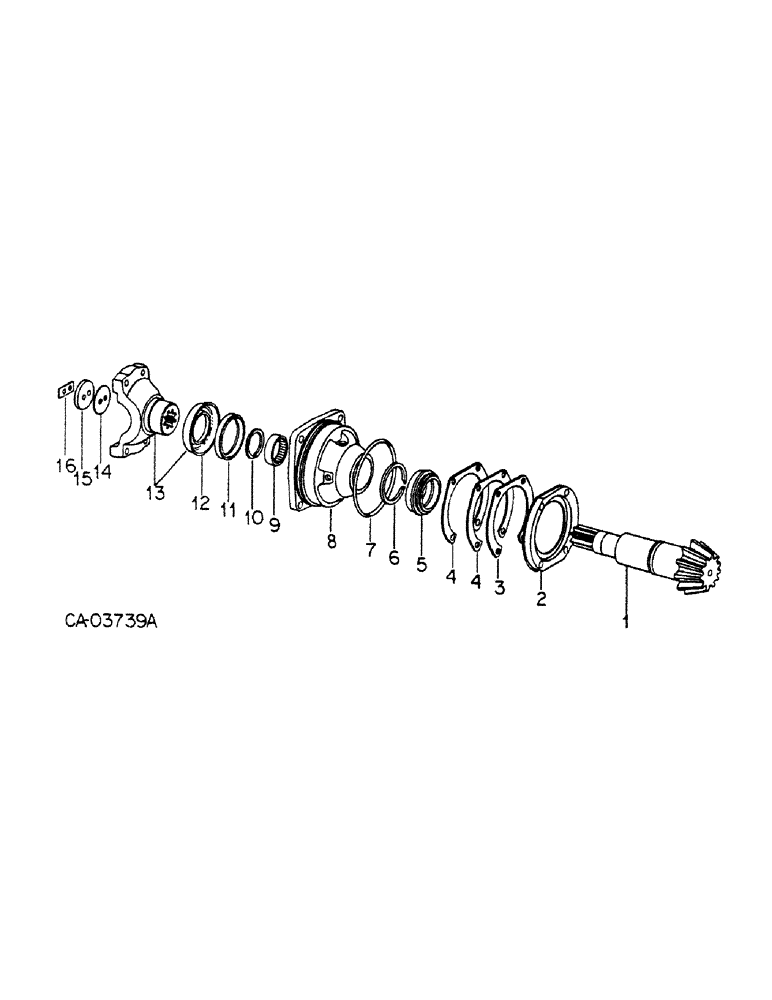

Запчасти Case IH 4386 (07-31) - DRIVE TRAIN, PINION BEARING REAR, 4386 TRACTOR (04) - Drive Train

1

SHAFT, drive bevel pinion, Not serviceable separately, Order bevel gear set 110469C92

1шт.

2

146893C1

RETAINER

ASSY, pinion shaft rear brg

2шт.

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

SCREW, 1/2 x 1.500 pln ast 12pt flg

4шт.

3

380283R2

SHIM

pinion shaft brg

1шт.

4

380284R2

SHIM

pinion shaft brg

2шт.

5

110459C91

TAPERED BEARING,63.5mm ID x 133.4mm OD x 70.26mm W

ASSY, bevel pinion

1шт.

6

110425C1

RING, SNAP

RING, pinion brg retaining, .163

1шт.

6

110426C1

RING, SNAP

RING, pinion brg retaining, .167

1шт.

6

110427C1

RING, SNAP

RING, pinion brg retaining, .171

1шт.

6

110428C1

RING, SNAP

RING, pinion brg retaining, .175

1шт.

6

110429C1

RING, SNAP

RING, pinion brg retaining, .179

1шт.

6

138777C1

RING, SNAP

RING, pinion brg retaining, .177

1шт.

6

138778C1

RING, SNAP

RING, pinion brg retaining, .181

1шт.

6

138779C1

RING, SNAP

RING, pinion brg retaining, .183

1шт.

7

3061207R1

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

6-1/4 x 6-1/2 x 1/8 pinion shaft cage

1шт.

8

67913C1

CAGE

pinion shaft front brg

1шт.

26314R1

BOLT, 7/16 x 1 phc p/t type 8

4шт.

9

112822R91

NEEDLE BEARING,Needle, 50.78mm ID x 60.31mm OD x 25.4mm W

pinion shaft front

1шт.

10

NOT USED IN THIS APPLICATION

1шт.

11

67914C1

SEAL

pinion yoke

1шт.

12

67926C1

SHIELD

1шт.

13

67924C1

YOKE

ASSY, axle input

1шт.

14

67916C1

GASKET

yoke washer

1шт.

15

67917C1

WASHER

yoke

1шт.

16

67918C1

LARGE PLATE

PLATE, yoke bolt lock

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

2шт.
