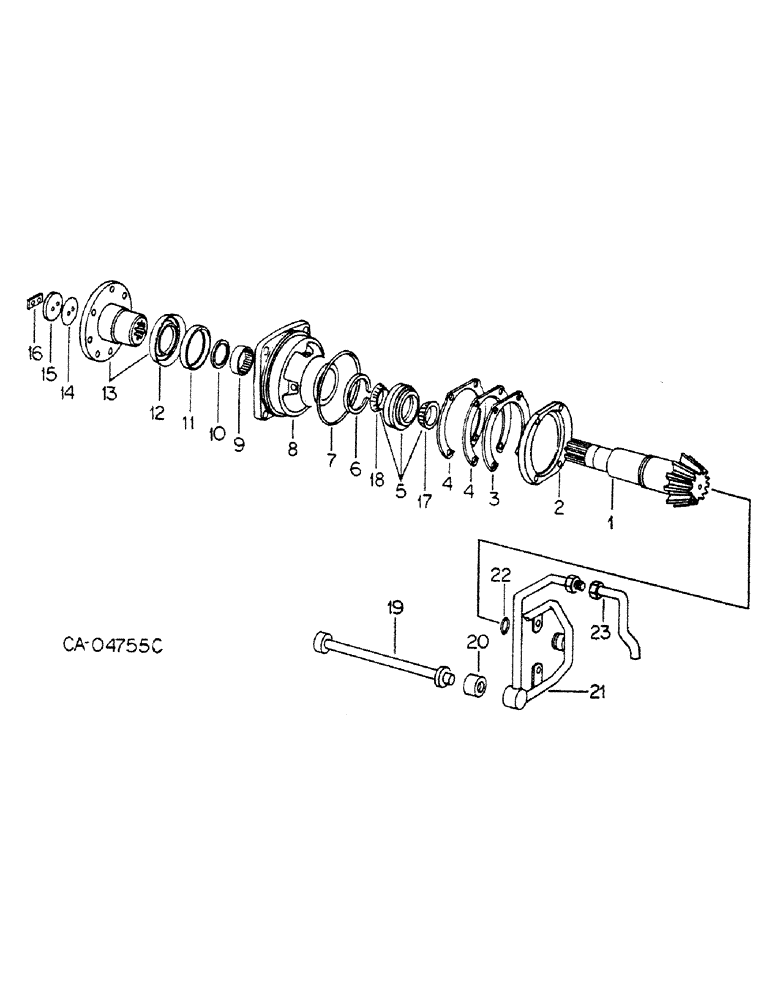

Запчасти Case IH 4386 (07-29) - DRIVE TRAIN, PINION BEARING FRONT, 4386 TRACTORS (04) - Drive Train

1

SHAFT, drive bevel pinion, Not serviceable separately, Order bevel gear set 110462C92

1шт.

2

146893C1

RETAINER

ASSY, pinion shaft rear bearing

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

Pinion shaft brg cage Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

3

380283R2

SHIM

pinion shaft bearing

1шт.

4

380284R2

SHIM

pinion shaft bearing

2шт.

5

110459C91

TAPERED BEARING,63.5mm ID x 133.4mm OD x 70.26mm W

ASSY, bevel pinion, Includes ref. nos. 17 & 18

1шт.

6

110425C1

RING, SNAP

RING, pinion brg retaining, .163

1шт.

6

110426C1

RING, SNAP

RING, pinion brg retaining, .167

1шт.

6

110427C1

RING, SNAP

RING, pinion brg retaining, .171

1шт.

6

110428C1

RING, SNAP

RING, pinion brg retaining, .175

1шт.

6

110429C1

RING, SNAP

RING, pinion brg retaining, .179

1шт.

6

138777C1

RING, SNAP

RING, pinion brg retaining, .177

1шт.

6

138778C1

RING, SNAP

RING, pinion brg retaining, .181

1шт.

6

138779C1

RING, SNAP

RING, pinion brg retaining, .183

1шт.

7

3061207R1

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

6-1/4 x 6-1/2 x 1/8, pinion shaft cage

1шт.

8

67913C1

CAGE

pinion shaft front bearing

1шт.

26314R1

BOLT, 7/16 x 1 phc p/t type 8

4шт.

9

112822R91

NEEDLE BEARING,Needle, 50.78mm ID x 60.31mm OD x 25.4mm W

pinion shaft front

1шт.

10

NOT USED IN THIS APPLICATION

1шт.

11

67914C1

SEAL

pinion yoke

1шт.

12

67926C1

SHIELD

companion flange

1шт.

13

68838C91

FLANGE

W/SHIELD ASSY, companion

1шт.

14

67916C1

GASKET

companion flange washer

1шт.

15

67917C1

WASHER

companion flange

1шт.

16

67918C1

LARGE PLATE

PLATE, companion flange lock

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 hex-hd cap

2шт.

17

BEARING ASSY, bevel pinion cone, Not serviced separately, Order 110459C91 bearing assy

1шт.

18

BEARING ASSY, bevel pinion cone, Not serviced separately, Order 110459C91 bearing assy

1шт.

19

65440C2

TUBE,7.825" Length

ASSY, trans lube dumbell

1шт.

20

114210C1

BUSHING

COUPLER, trans lube tube

1шт.

21

67742C1

TUBE

ASSY, trans lube

1шт.

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

lube tube mtg bracket

2шт.

406579R1

WASHER

lube tube mtg bracket

2шт.

22

67745C1

SEALING RING

pinion lube fitting

1шт.

23

67748C2

TUBE

ASSY, diff ret upper lube

1шт.
