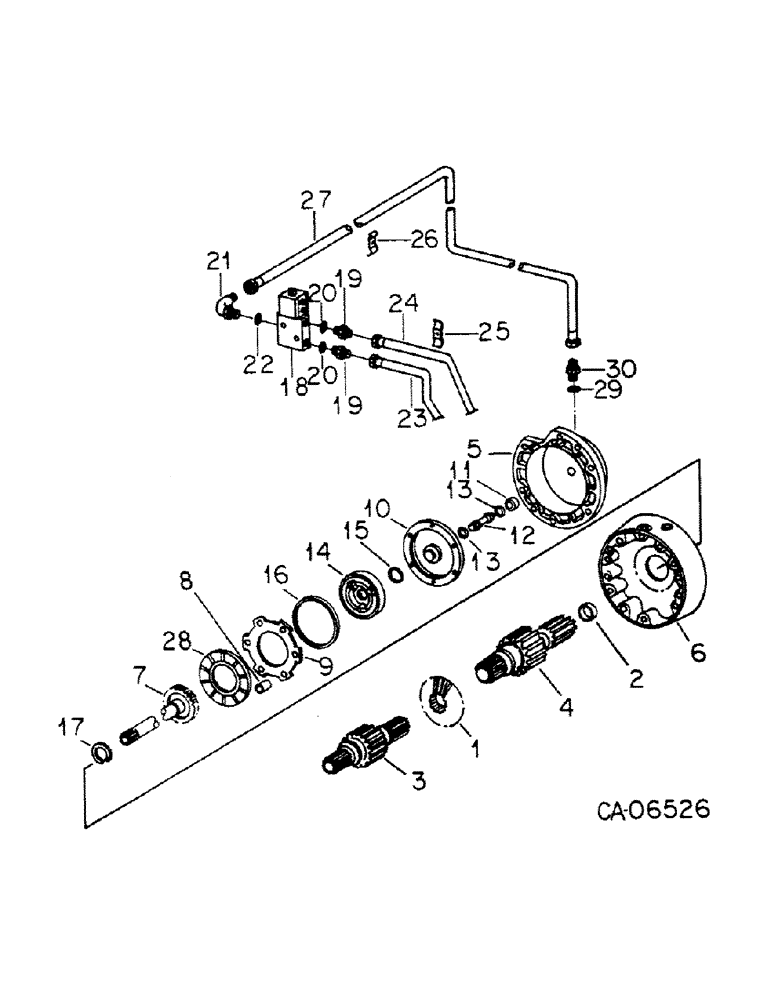

Запчасти Case IH 4386 (07-26) - DRIVE TRAIN, DIFFERENTIAL LOCK, 4386 TRACTORS WITH SERIAL NO. 1642 AND ABOVE (04) - Drive Train

1

529022R2

GEAR

differential bevel RH, 28T

1шт.

2

283375R91

NEEDLE BEARING

ASSY, needle

1шт.

3

104676C1

SHAFT

bull pinion & brake LH

1шт.

4

104680C1

SHAFT

bull pinion & brake RH

1шт.

5

104667C1

COVER

diff lock

1шт.

6

104668C2

HOUSING

RH brake diff lock

1шт.

104706C1

BOLT

BOLT, diff lock cover

4шт.

NLS

NO LONGER SERVICED

5/8 x 4 pln type 5

2шт.

7

104669C1

SHAFT

inner

1шт.

8

104670C1

BUSHING

diff lock stop

3шт.

9

104705C1

PLATE

diff lock clutch primary

1шт.

10

104671C91

HOUSING

ASSY, piston

1шт.

179806

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

1/4 x 2-1/4 pln type 5

6шт.

9409954

PLUG,Hex Soc, 1/16"-27

auto soc. hex-hd

1шт.

20040R1

DOWEL,1/4" x 3/4"

PIN, 1/4 x .750 pln hdn dowel

2шт.

11

104673C1

THRUST WASHER

thrust

2шт.

12

104714C1

SPOOL

diff lock feed

1шт.

13

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 x 5/8 x 3/32

2шт.

14

104674C1

PISTON

diff lock

1шт.

15

350818R1

O-RING,0.984" ID x 0.139" Width

1 x 1-1/4 x 1/8

1шт.

16

22412R1

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

-248, 70 Duro, 4.734" ID x .139" Thk

1шт.

17

269916R1

SNAP RING,#212, Ext

Ring, Snap, #212, Ext

1шт.

18

VALVE ASSY, differential lock, Consists of

1шт.

138173C1

BODY

block

1шт.

For use w/pow-r-oil hyds. valve #96200.

1шт.

138172C94

VALVE

ASSY, solenoid

1шт.

For use w/pow-r-oil hyds. valve #96200.

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

For use w/pow-r-oil hyds. valve #96200.

1шт.

391914R1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

7/16 x 9/16 x 1/16

1шт.

For use w/pow-r-oil hyds. valve #96200.

1шт.

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 x 1/16

1шт.

For use w/pow-r-oil hyds. valve #96200.

1шт.

224391C91

VALVE

ASSY, solenoid

1шт.

For use w/Gould inc. valve #SK2365B.

1шт.

224392C1

BODY

block

1шт.

For use w/Gould inc. valve #SK2365B.

1шт.

224393C1

PACKAGE

KIT, seal

1шт.

For use w/Gould inc. valve #SK2365B.

1шт.

19

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 OD tube

2шт.

20

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, diff lock valve

2шт.

21

156264C91

ELBOW,90º, 7/16"-20, 37º x 9/16"-18, O-Ring

3/8 to 1/4 tube 90 deg adj

1шт.

22

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, diff lock valve

1шт.

23

138657C1

HYD TUBE

TUBE ASSY, diff lock drain

1шт.

24

138822C1

HYD TUBE

TUBE ASSY, diff lock supply

1шт.

25

134786C1

CLAMP

3/8 OD tube

2шт.

273924

SNAP RING

NUT, 1/4 cad p/t lock type 5

2шт.

26

134788C1

CLAMP

3/8 OD tube

1шт.

231-4144

NUT,1/4"-20, GB

NUT, 1/4 cad p/t lock type 5

2шт.

27

138823C1

HYD TUBE

TUBE ASSY, diff lock

1шт.

28

71914C92

PACKAGE

diff lock service, Consists of

1шт.

NSS

NOT SOLD SEPARAT

DISC, clutch driven

6шт.

NSS

NOT SOLD SEPARAT

PLATE, clutch driven

7шт.

350818R1

O-RING,0.984" ID x 0.139" Width

clutch piston inner

1шт.

22412R1

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

-248, 70 Duro, 4.734" ID x .139" Thk, clutch piston outer

1шт.

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 x 5/8 x 3/32

2шт.

104673C1

THRUST WASHER

thrust

1шт.

474517C2

GASKET

TUBE, gasket eliminator, loctite, Use w/package, 71914C92

1шт.

30

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTORS, 7/16-20 37 deg hyd flared tube

1шт.

29

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.
