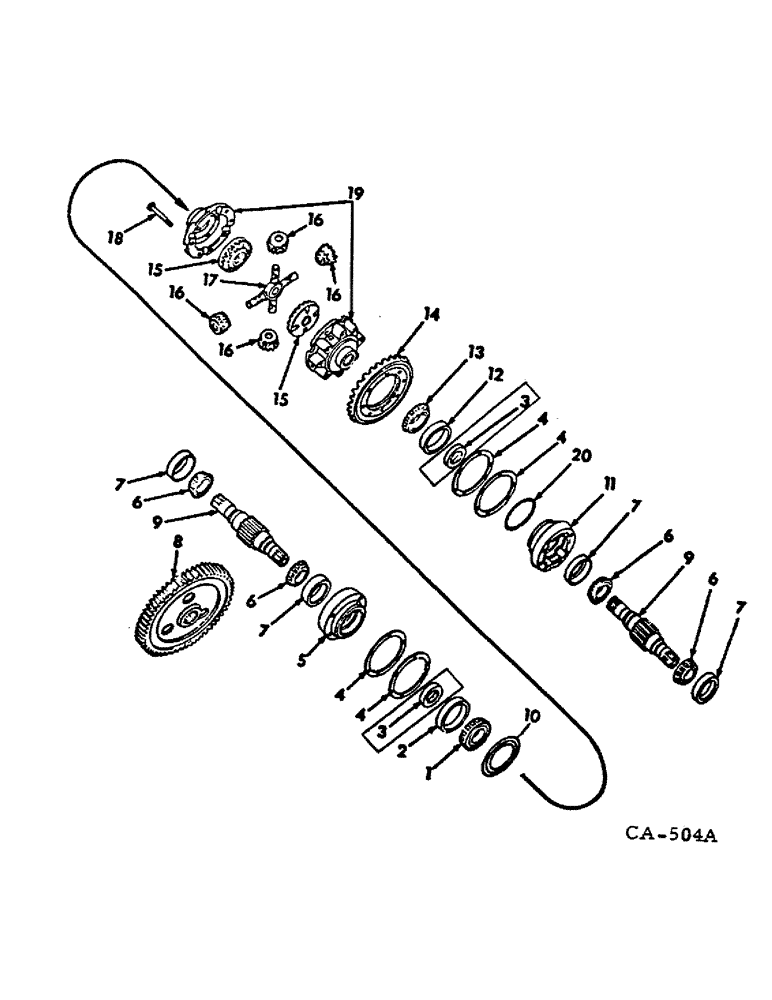

Запчасти Case IH 4386 (07-24) - DRIVE TRAIN, DIFFERENTIAL (04) - Drive Train

1

529452R91

ROLLER BEARING

ASSY, diff LH cone

1шт.

2

529453R1

BEARING, CUP

BEARING, diff LH cup

1шт.

3

NOT USED IN THIS APPLICATION

1шт.

4

380202R1

SHIM

diff brg retainer, .007, 3 or as required

1шт.

4

380203R1

SHIM

diff brg retainer, .012, 5 or as required

1шт.

4

380204R1

SHIM

diff brg retainer, .030

1шт.

4

380205R1

SHIM

diff brg retainer, .004

1шт.

4

385155R1

SHIM

diff brg retainer, .003

1шт.

5

67610C2

RETAINER

diff brg LH, 4366 tractors

1шт.

5

67595C2

RETAINER

diff brg LH, 4386 tractors

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

6

ST2018A

BEARING ASSY,66.67mm ID x 30.24mm W

bull pinion shaft roller cone

4шт.

7

ST967

BEARING, CUP,2.5" ID x 4.4385" OD x 1.1955"

BEARING, bull pinion shaft roller cup

4шт.

8

391691R1

GEAR

bull, 73T, 4366 tractors

2шт.

8

528712R1

GEAR

bull, 73T, 4386 tractors

2шт.

9

391690R1

SHAFT

bull pinion and brake, 13T, 4366 tractors, Used only w/cover, 527443R11, Serial Range: -9553

2шт.

9

110402C1

SHAFT

bull pinion and brake, 13T, 4366 tractors

2шт.

9

71868C1

SHAFT

bull pinion and brake, 13T, For front differential on 4386 tractors, For all rear differential, Serial Range: -1500

2шт.

9

104657C1

SHAFT

bull pinion and brake, 13T, For front differential on 4386 tractors, Start Serial: 1501

2шт.

10

67397C1

BAFFLE

LH diff brg lub oil

1шт.

11

67608C2

RETAINER

diff brg RH, 4366 tractors

1шт.

11

68683C1

RETAINER

diff brg RH, 4386 tractors

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

12

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

BEARING, diff RH cup

1шт.

13

622336C91

ROLLER BEARING

ASSY, diff RH cone

1шт.

14

67919C93

GEAR-SET

BEVEL GEARS, matched set, For front differential on 4366 tractors

1шт.

14

110462C92

GEAR

BEVEL GEAR, matched set, For front differential on 4386 tractors

1шт.

14

67927C93

GEAR-SET

BEVEL GEARS, matched set, For rear differential on 4366 tractors

1шт.

14

110469C92

GEAR-SET

BEVEL GEAR, matched set, For rear differential on 4386 tractors

1шт.

15

380190R2

GEAR

diff bevel, 28T

2шт.

16

361061R3

PINION

diff bevel, 15T

4шт.

17

393637R2

DIFF. SPIDER

SPIDER, diff

1шт.

18

55972DA

BOLT,1/2" - 20 x 4 1/2"

diff case

12шт.

381368R1

NUT,Hex, 1/2" - 20, Gr 8

case bolt

12шт.

19

528706R3

CASE

ASSY, differential

1шт.

20

NOT USED IN THIS APPLICATION

1шт.
