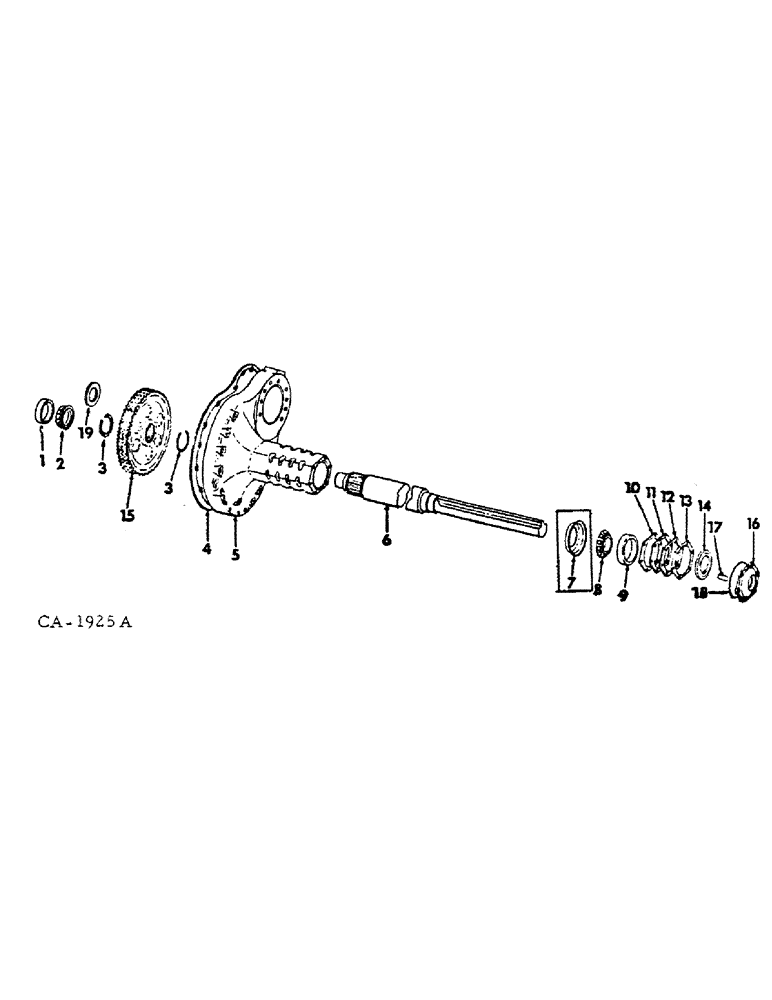

Запчасти Case IH 4386 (07-23) - DRIVE TRAIN, AXLES AND CARRIER (04) - Drive Train

1

ST985

CUP

BEARING, rear axle inner cup, For 4366 tractors

4шт.

1

ST985

CUP

BEARING, rear axle inner cup, 4386 tractors, Serial Range: -1500

4шт.

1

ST807

BEARING CUP,122.24mm OD x 36.51mm W

BEARING, rear axle inner cup, 4386 tractors, Start Serial: 1501

4шт.

2

ST2110

ROLLER BEARING,66.67mm ID x 38.35mm W

BEARING ASSY, axle inner cone, For 4366 tractors

4шт.

2

ST2110

ROLLER BEARING,66.67mm ID x 38.35mm W

BEARING ASSY, axle inner cone, 4386 tractors, Serial Range: -1500

4шт.

2

ST2170

TAPERED BEARING,2.5943" ID x 4.8135" OD x 1.7188"

BEARING ASSY, axle inner cone, 4386 tractors, Start Serial: 1501

4шт.

3

380220R1

SNAP RING,#362, 3.423, Ext

RING, bull gear retainer snap

2шт.

4

380225R2

GASKET

axle carrier

4шт.

5

380224R6

CARRIER

axle

4шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 3-1/2 hex-hd cap

56шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

5/8-11 x 4-1/4 hex-hd cap

16шт.

6

535663R2

AXLE

118 in., For 4366 tractors

4шт.

6

535663R2

AXLE

118 in., 4386 tractors, Serial Range: -1500

4шт.

6

529786R1

AXLE

118 in., 4386 tractors, Start Serial: 1501

4шт.

7

NOT USED IN THIS APPLICATION

1шт.

8

ST2107

TAPERED BEARING

BEARING ASSY, axle outer cone, For 4366 tractors

4шт.

8

ST2107

TAPERED BEARING

BEARING ASSY, axle outer cone, 4386 tractors, Serial Range: -1500

4шт.

8

13253DC

CONE

BEARING ASSY, axle outer cone, 4386 tractors, Start Serial: 1501

4шт.

9

ST810

ROLLER BEARING,92.075 mm ID x 150 mm OD x 35.966 mm

BEARING, axle outer cup

4шт.

10

380227R2

SHIM

axle carrier cap, .007

12шт.

11

380228R2

SHIM

axle carrier cap, .012, 8 or as required

1шт.

12

380229R2

SHIM

axle carrier cap, .030

1шт.

13

380230R2

SHIM

axle carrier cap, .004

1шт.

13

385158R2

SHIM

axle carrier cap, .003

1шт.

14

535667R91

OIL SEAL

axle carrier cap oil, For 4366 tractors

4шт.

14

535667R91

OIL SEAL

axle carrier cap oil, 4386 tractors, Serial Range: -1500

4шт.

14

144139C1

OIL SEAL

axle carrier cap oil, Replaces 529466R91, 4386 tractors, Start Serial: 1501

4шт.

15

GEAR, bull, Refer to differential listing

1шт.

16

536471R1

CAP

axle carrier, For 4366 tractors

4шт.

16

536471R1

CAP

axle carrier, 4386 tractors, Serial Range: -1500

4шт.

16

528716R1

COVER

CAP, axle carrier, 4386 tractors, Start Serial: 1501

4шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 hex-hd cap

24шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

24шт.

17

NOT USED IN THIS APPLICATION

1шт.

18

529133R1

RING

axle carrier cap sealing

4шт.

19

535666R1

SPACER

bull gear, For 4366 tractors

4шт.

19

535666R1

SPACER

bull gear, 4386 tractors, Serial Range: -1500

4шт.
