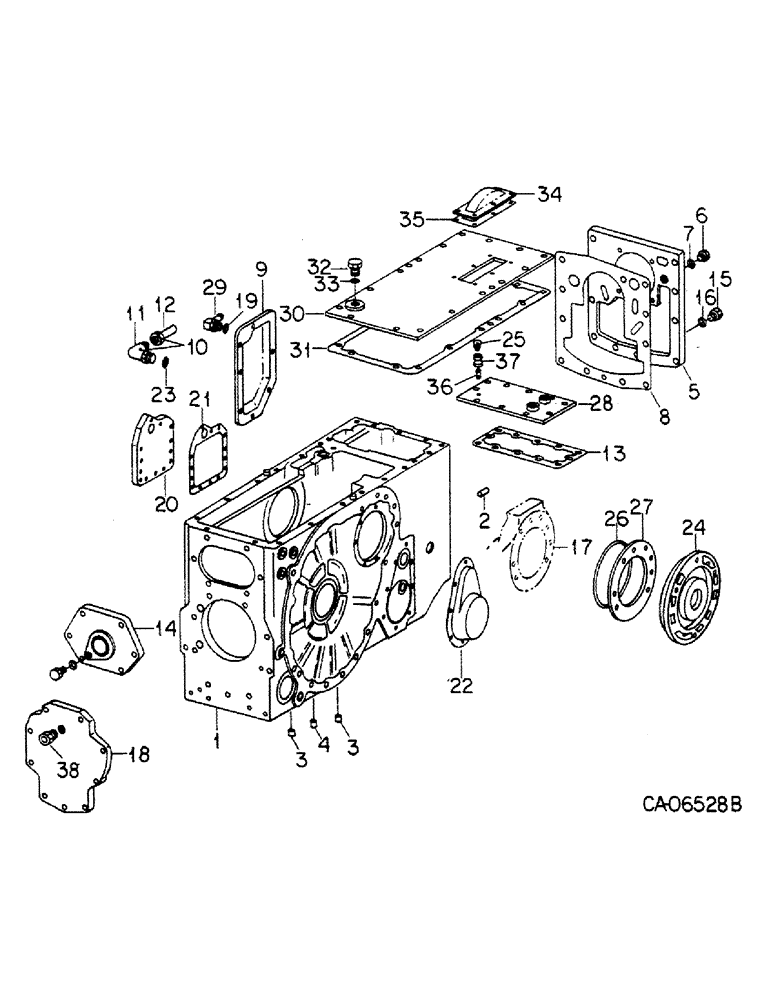

Запчасти Case IH 4386 (07-19) - DRIVE TRAIN, FRONT AXLE CENTER FRAME, 4386 TRACTOR (04) - Drive Train

1

67890C91

FRAME ASSY

rear, Includes ref. nos. 2, 3 and 4

1шт.

383331R1

PLUG,Cup, 4.26"

torsion bar cup

1шт.

2

19846R1

DOWEL,1/2" x 1 1/4"

PIN, 1/2 x 1-1/4 dowel

1шт.

3

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG, 1/2-14 auto sq-soc-hd drain

2шт.

4

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG, 3/4-14 auto sq-soc-hd pipe

1шт.

5

67892C2

COVER, input

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 pln type 5

10шт.

6

9410362

PLUG,Hex Hd, 1 3/16"-12 ORB

1-3/16-12 C-Z str-thd o-ring boss, oil level 31 gallon

1шт.

7

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube

1шт.

8

71902C1

GASKET

GASKET, input cover

1шт.

9

114272C1

COVER, drive attach opening

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

8шт.

474517C2

GASKET

TUBE, gasket eliminator

1шт.

124955C1

ELBOW, hose adapter transfer case return

1шт.

10

114267C1

ELBOW,90 Degree, 1 1/2" Hose x 1 7/8"-12 ORB Beaded

hose adapter, front or

1шт.

10

71406C91

ELBOW ASSY, hose adapter front, Consists of ref. nos. 11 & 12

1шт.

11

9410983

ELBOW,90 Degree, 1 7/8"-12, 37 Degree x 1 7/8"-12, O-Ring

1-7/8-12 37 deg hyd flared tube adj str thd 90 deg

1шт.

12

114375C1

TUBE ASSY, 1-1/2 hose adapter

1шт.

13

67905C1

GASKET

diff top small cover

1шт.

14

67893C1

COVER

draft control adj opening

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 hex-hd cap

6шт.

474517C2

GASKET

TUBE, gasket eliminator

1шт.

15

9410356

PLUG

7/16-20 C-Z str thd o-ring boss

2шт.

17

CARRIER, axle, Refer to axle listing this group

1шт.

18

142329C1

COVER, IPTO opening, Replaces 64530C1

1шт.

179888

LEVER

BOLT, 1/2 x 1-7/8 pln type 5

9шт.

474517C2

GASKET

TUBE, gasket eliminator

1шт.

19

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

1шт.

20

118848C1

COVER

pump opening

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

12шт.

21

382244R4

GASKET

pump opening cover

1шт.

22

382256R1

COVER ASSY

COVER, oil filter

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

8шт.

474517C2

GASKET

TUBE, gasket eliminator

1шт.

23

301016R1

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1.72 OD x .118

2шт.

24

71865C91

HOUSING

ASSY, bull pinion bearing and oil seal, retainer, tractors w/serial no. 1500 and below

2шт.

21280R1

PLUG,Cup, 3"

3 in. OD cup

2шт.

21371R1

SCREW

5/8-11 x 2 hex-hd cap

8шт.

25

152127H1

BREATHER,1/8"-27, Short

1/8-27 axle

1шт.

26

530789R1

O-RING,6.712" ID x 0.139" Width

O-RING, bull pinion bearing and oil seal retainer

2шт.

27

391816R1

SHIM

retainer housing, .035, 2 or as required

1шт.

27

391817R1

SHIM

retainer housing, .012, 4 or as required

1шт.

27

391818R1

SHIM

retainer housing, .007, 6 or as required

1шт.

27

391819R1

SHIM

retainer housing, .004

1шт.

27

391820R1

SHIM

retainer housing, .003

1шт.

28

67922C1

COVER

diff top small, Serial Range: -1500

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

28

132728C2

COVER

ASSY, front diff top small, Start Serial: 1501

1шт.

9410358

PLUG

9/16-18

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 tube

1шт.

29

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

1-1/16-12 37 deg hyd flared tube adj str thd 90 deg

1шт.

30

109833C1

COVER ASSY, diff top main

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap

16шт.

377028R1

O-RING,0.989" ID x 0.07" Width

1 x 1-1/8 class 5

1шт.

31

GASKET, diff top main cover, For service use

1шт.

474517C2

GASKET

TUBE, gasket eliminator

1шт.

32

9410362

PLUG,Hex Hd, 1 3/16"-12 ORB

1-3/16-12 str thd o-ring boss, oil filler

1шт.

33

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube

1шт.

34

67903C2

COVER, diff bevel gear

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

35

GASKET, diff bevel gear cover, For service use

1шт.

474517C2

GASKET

TUBE, gasket eliminator

1шт.

36

114794

NIPPLE,Nipple, 1/8" NPT x 2"

PIPE, 1/8-27 x 2.00 pln

1шт.

37

105408

COUPLING,1/8" NPT

1/8-27 pipe pln

1шт.

38

124949C2

CAGE

GAGE, oil level sight, 4386 tractors, Serial Range: -1809

1шт.

38

142288C1

PLUG

GAGE, oil level sight, Start Serial: 1810

1шт.

444642

PLUG

1-11-1/2 hex-hd pipe

1шт.

142023C1

PLUG

oil level sight

1шт.

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube

1шт.

142104C92

PACKAGE

front axle tilt field service, 4386 tractors, Consists of, Start Serial: 1811

1шт.

141962C1

TUBE

transmission drain

1шт.

142005C1

HOSE

1шт.

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG or

1шт.

217-469

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG, 3/4-14 auto sq-soc pipe stl

1шт.

142102C1

SHIM

8шт.

28148R1

HARDWARE

BOLT, 7/8 x 11-1/2 pln type 8

8шт.

9413984

NUT,7/8"-9, GC

NUT, 7/8 phc p/t lock type 8

8шт.

138978C1

SHIM

5шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8 x 2-3/4 type 5

2шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3 type 5

2шт.

271728

SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5

5/8 x 3-1/4 type 5

2шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

WASHER, LOCK, 5/8"

2шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

2шт.

146695C1

CAM

LEVER ASSY

1шт.

216341

LUBE NIPPLE

NIPPLE

1шт.

134934C1

ELBOW

1шт.

20971R1

PLUG

2шт.

142023C1

PLUG

GAGE

1шт.

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

91916R91

BREATHER,3/8"-18 NPT, Short, w/washer

FITTING

1шт.

111316

ELBOW

1шт.

19968R1

DOWEL,3/4" x 1 3/4"

3/4 x 1/4

1шт.

3/4 x 2-1/4

1шт.

16

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.
