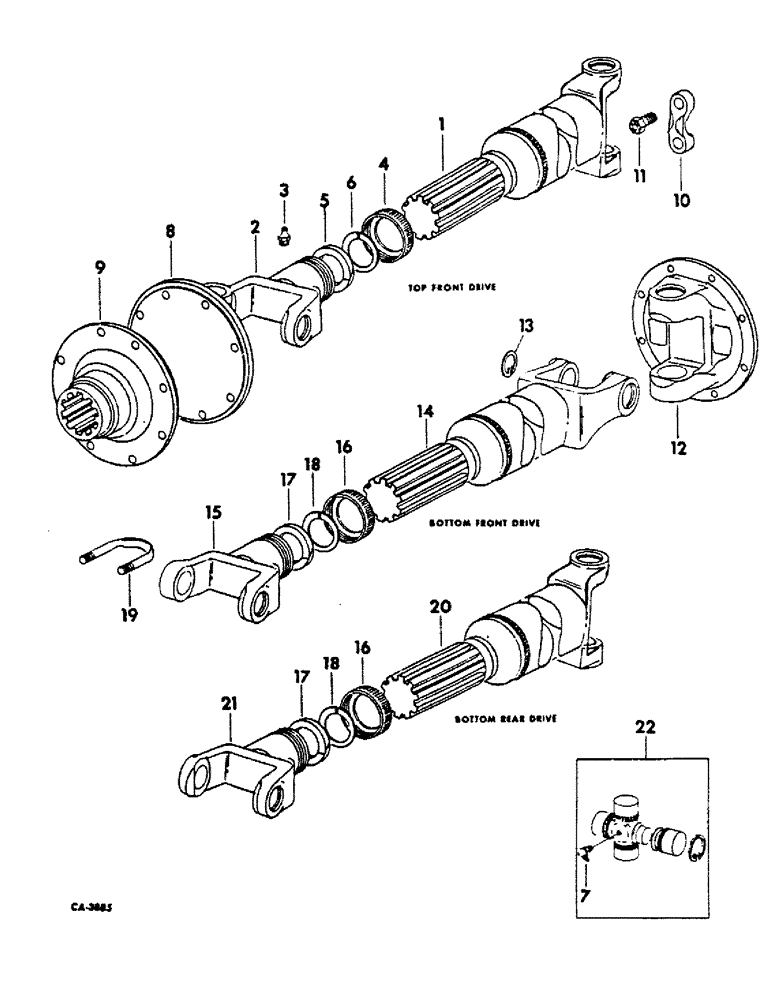

Запчасти Case IH 4386 (07-15) - DRIVE TRAIN, PROPELLER SHAFT, SHAFT ASSEMBLIES, TOP FRONT DRIVE (04) - Drive Train

1

69767C1

SHAFT

ASSY, tube, Top Front Drive

1шт.

2

69768C1

FORK

YOKE, sleeve

1шт.

3

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, 1 per shaft 1/8"-27 x .66 lg

1шт.

4

869858R1

CAP, dust

1шт.

5

869860R1

SEAL ASSY.

WASHER, cork (NLF Disconned but still good with Dana.)

1шт.

6

869859R1

WASHER

steel

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight, 2 per shaft 1/4"-28 NPT x .54" lg

1шт.

8

69769C1

FLANGE, companion, Use w/flange, 761160C1

1шт.

9

761160C1

FLANGE, trans companion, 4366 tractor, Serial Range: -8189

1шт.

80297R1

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 8

SCREW, 3/8-24 x 1-1/2 znd hex-hd cap type 8 (replaces 24956R1)

8шт.

225854

DISC

NUT, 3/8-24 znd hex. type 8

8шт.

9

71498C1

FORK

YOKE, transmission, 4366 tractor, Start Serial: 8190

1шт.

9

71498C1

FORK

YOKE, transmission, all 4386 tractors

1шт.

10

603599C1

CAP

brg race

4шт.

11

273260C1

LOCK BOLT

BOLT, brg race cap

8шт.

12

69764C1

YOKE

brake flange, Shaft Assembly, Bottom Front Drive

1шт.

25934R1

JAM NUT,Jam, 3/8"-24, G8

3/8-NF phc jam type 8, Shaft Assembly, Bottom Front Drive

8шт.

13

913713R1

RING, SNAP

RING, retaining, Shaft Assembly, Bottom Front Drive

2шт.

14

69770C1

SHAFT

ASSY, tube, Assembly, Bottom Front Drive

1шт.

15

213885R11

FORK

YOKE, sleeve, Shaft Assembly, Bottom Front Drive

1шт.

16

69882C1

CYLINDER END CAP

dust, 1 per bottom front & rear shaft, Assembly, Drive

1шт.

17

211272R1

WASHER

cork, 1 per bottom front & rear shaft, Assembly, Drive

1шт.

18

53890V

WASHER

steel, 1 per bottom front & rear shaft, Assembly, Drive

1шт.

19

204138R1

BOLT,7/16" - 20 x 2 1/4"

U-, 2 per bottom front, 4 per bottom rear, Assembly, Drive

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, , Shaft Assembly, Bottom Front Drive 7/16"

12шт.

271505

BODY

7/16-20 hex, Shaft Assembly, Bottom Front Drive

12шт.

20

69771C2

COUPLING

SHAFT ASSY, tube, Bottom Rear Drive

1шт.

21

877127R11

YOKE

sleeve, shaft assy, bottom rear drive

1шт.

22

751762C91

JOURNAL

KIT, journal & brg, top front shaft, assy, bottom rear drive

2шт.

22

213882R91

U-JOINT SPIDER

KIT, journal & brg, 2 per bottom front shaft, 2 per bottom rear shaft

1шт.
