Запчасти Case IH 4386 (07-10) - DRIVE TRAIN, TRANSMISSION HI-LO RANGE CONTROLS, 4386 TRACTOR (04) - Drive Train

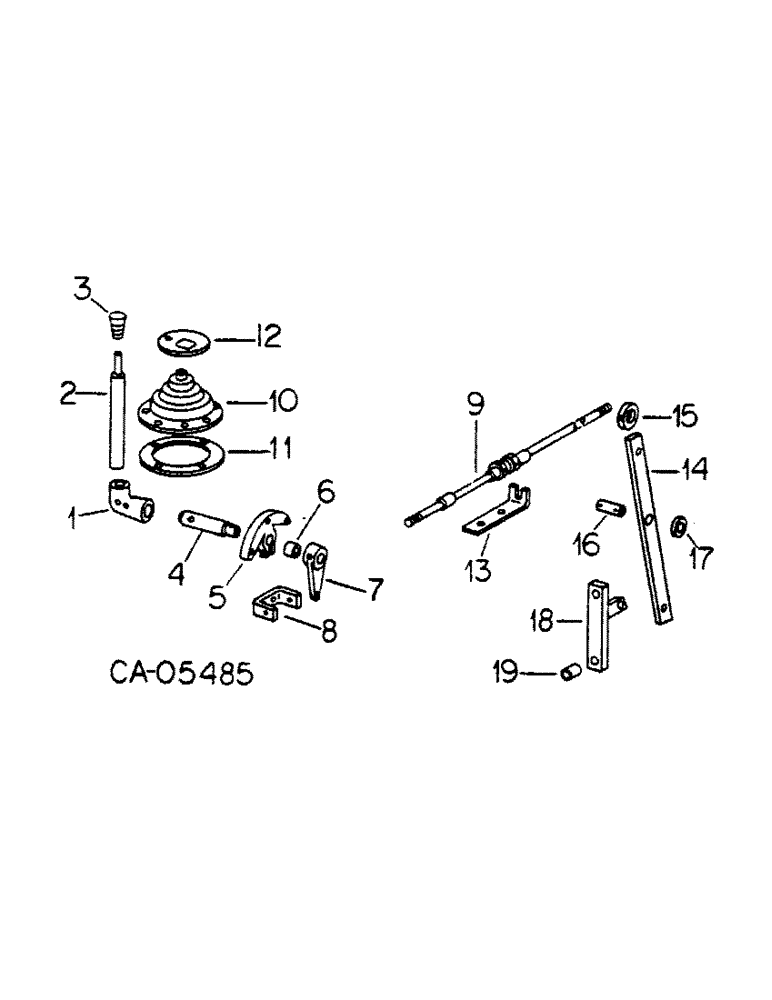

Схема запчастей Case IH 4386 - (07-10) - DRIVE TRAIN, TRANSMISSION HI-LO RANGE CONTROLS, 4386 TRACTOR (04) - Drive Train
4
16
5
11
19
10
1
3
15
7
6
17
8
18
2
9
14
13
12

Артикул

Название

Примечание

Количество

1

399031R1

PIVOT

HUB, hi-lo rod

1шт.

2

124918C1

PIN

hi-lo, rod

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

1шт.

3

397931R2

GRIP

KNOB, hi-lo

1шт.

3

397931R2GV

SPRING

Value, Knob

1шт.

1250289C1

FASTENER

knob

1шт.

4

124919C2

PIN

hi-lo pivot, shaft

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

1шт.

15162E

SEALING WASHER

WASHER, .812 x 2.00 x .125 flat

1шт.

5

532521R1

SUPPORT

control

1шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

120376

NUT,5/16"-18, G5

1шт.

6

533210R1

BUSHING,19.07mm ID x 20.79mm OD x 17.02mm L

BEARING, nylon friction

1шт.

7

399010R1

LEVER

control

1шт.

25155R1

PIN,1/4" x 1 1/4", Coiled

1/4" x 1 1/4", Coiled

1шт.

8

124920C1

CHANNEL

hi-lo adj stop, bracket

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

2шт.

120376

NUT,5/16"-18, G5

2шт.

9

124739C1

CABLE PULLING GRIP

CABLE ASSY, hi-lo range control

1шт.

116383

CLEVIS

1/4-28 x 2 C-Z lt adj

1шт.

138083

PIN

1/4 x .770 clevis

1шт.

103362

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-NF type 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

299408C1

CLAMP

closed

1шт.

10

778053C1

BOOT

shift lever

1шт.

11

114285C1

LARGE PLATE

PLATE, shift boot hold down

1шт.

12

132513C1

PLATE

ASSY, gear shift

1шт.

26095R1

SCREW, 1/4 x 1-1/2 phc h/hd tap

8шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 znd

8шт.

13

127674C1

SUPPORT

hi-lo cable, bracket

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

14

127673C1

BAR

shift lever, arm

2шт.

15

127647C1

COLLAR

set

1шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, CLEVIS, 1/2" x 1.360"

2шт.

495-11053

WASHER,1/2", SAE

1/2 znd flat

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

16

127387C1

PIN

pivot

1шт.

17

NLS

NO LONGER SERVICED

.594 x .074 thk

2шт.

18

127669C1

ANCHOR

BRACKET ASSY, hi-lo shift

1шт.

19

127672C1

SPACER

hi-lo shift

2шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 hex-hd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

Выбрано товаров: 48
