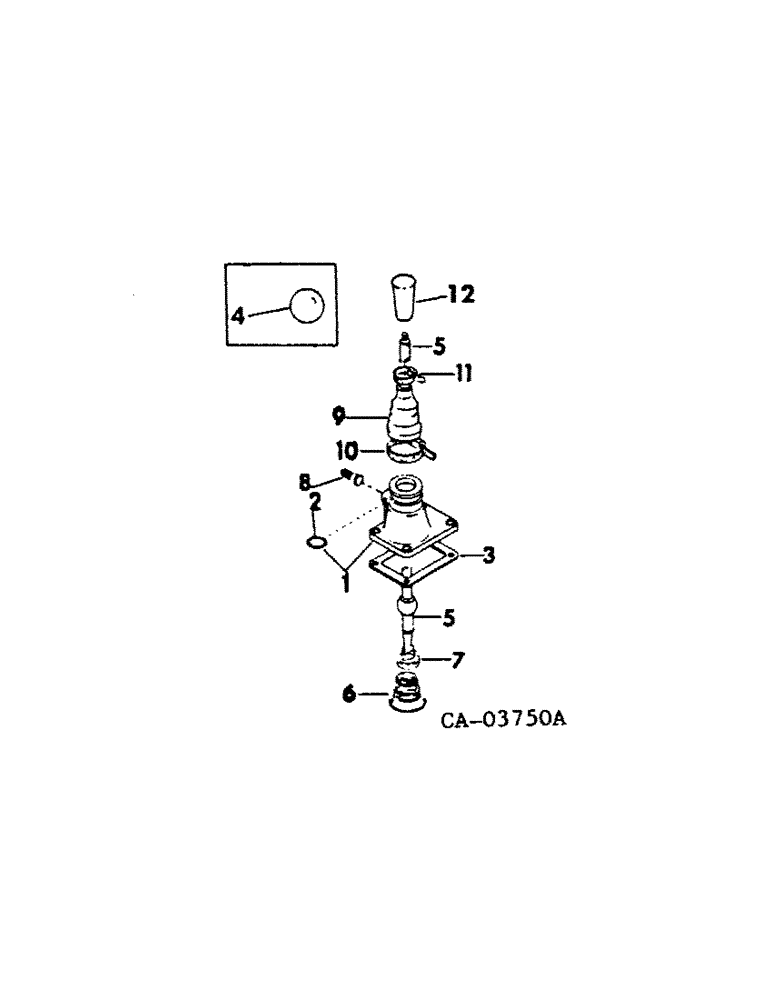

Запчасти Case IH 4386 (07-08) - DRIVE TRAIN, TRANSMISSION CONTROLS, EXTERNAL (04) - Drive Train

1

69144C91

HOUSING ASSY.

HOUSING ASSY, shift lever, Includes ref. 2 and 3

1шт.

2

443386C1

O-RING,1.485" ID x 0.284" Width

shift lever

1шт.

3

41054V

GASKET, shift lever hsg

1шт.

4

69359C1

KNOB

shift lever, 1/2 in. thread, 4386 tractors, Serial Range: -2500

1шт.

4

69359C1

KNOB

shift lever, 1/2 in. thread, all 4366 tractors

1шт.

4

41032V

KNOB, shift lever, 5/8 in. thread w/5/8 inch thread

1шт.

5

69360C1

HANDLE

LEVER, speed shift, 1/2 in. thread, Replaces lever w/5/8 in. thread, 69358C1

1шт.

6

44028HA

VALVE SPRING

SPRING, shift lever

1шт.

7

41084V

RETAINER

spring

1шт.

8

347903R1

PIN, gear shift lever pivot

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 znd

1шт.

144418H

LOCK NUT,5/16"-24, GB

NUT, LOCK, 5/16"-24, GB

1шт.

9

603857C1

BOOT

shift lever

1шт.

10

122322R91

HOSE CLAMP,#44, 2.31/3.25 Type F Worm

CLAMP, 2-7/8 hose, boot lower

1шт.

11

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP, 1-1/4 hose, boot upper

1шт.

12

397978R2

GRIP

control handle, rubber, 4386 tractors, Start Serial: 2501

1шт.

265071C92

PUMP

ASSY, oil, Consists of ref. nos. 1 thru 15

1шт.
