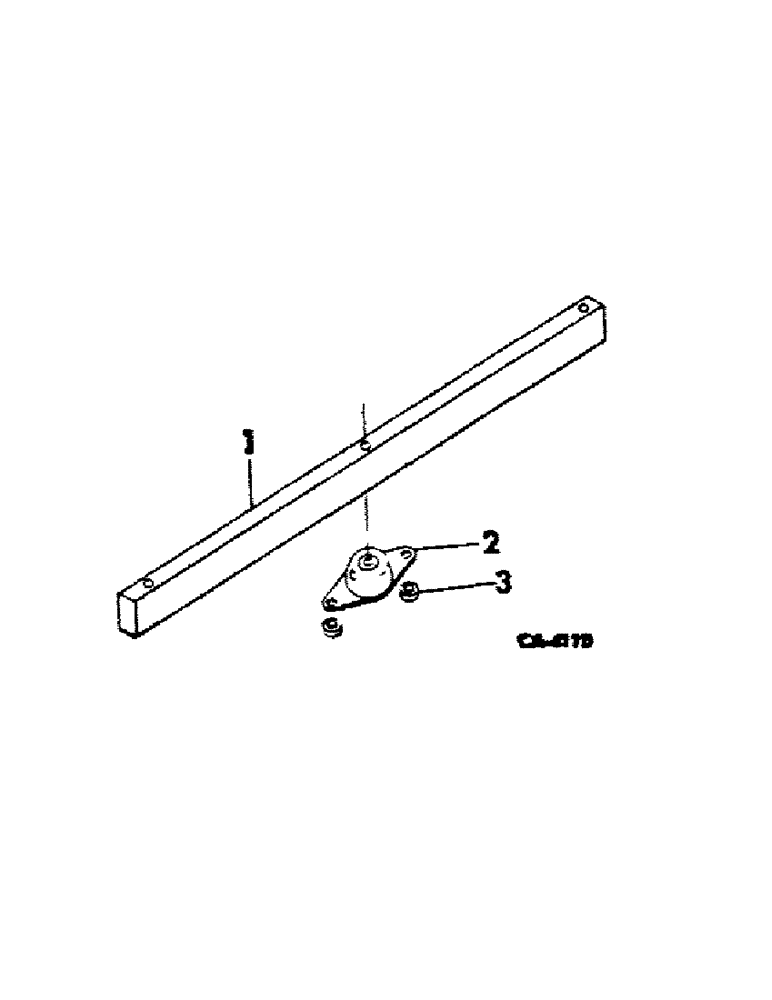

Запчасти Case IH 4386 (07-07) - DRIVE TRAIN, TRANSMISSION MOUNTING BRACKET (04) - Drive Train

1

70698C1

BAR

transmission mtg

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 znd hex-hd cap

2шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

.656 x 1.312 x .095 an-zhd

2шт.

9413969

NUT,5/8"-11, GB

5/8-11 cad prevailing torque hex. lock

2шт.

2

70759C1

INSULATOR

transmission

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

495-11081

WASHER,3/4", SAE

.812 x 1.469 x .134 zn-znd

1шт.

9413971

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 cad prevailing torque hex. lock

1шт.

3

894078H1

SPACER

transmission insulator

2шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

.656 x 1.312 x .095 an-znd

2шт.

9413969

NUT,5/8"-11, GB

5/8-11 cad prevailing torque hex. lock

2шт.
