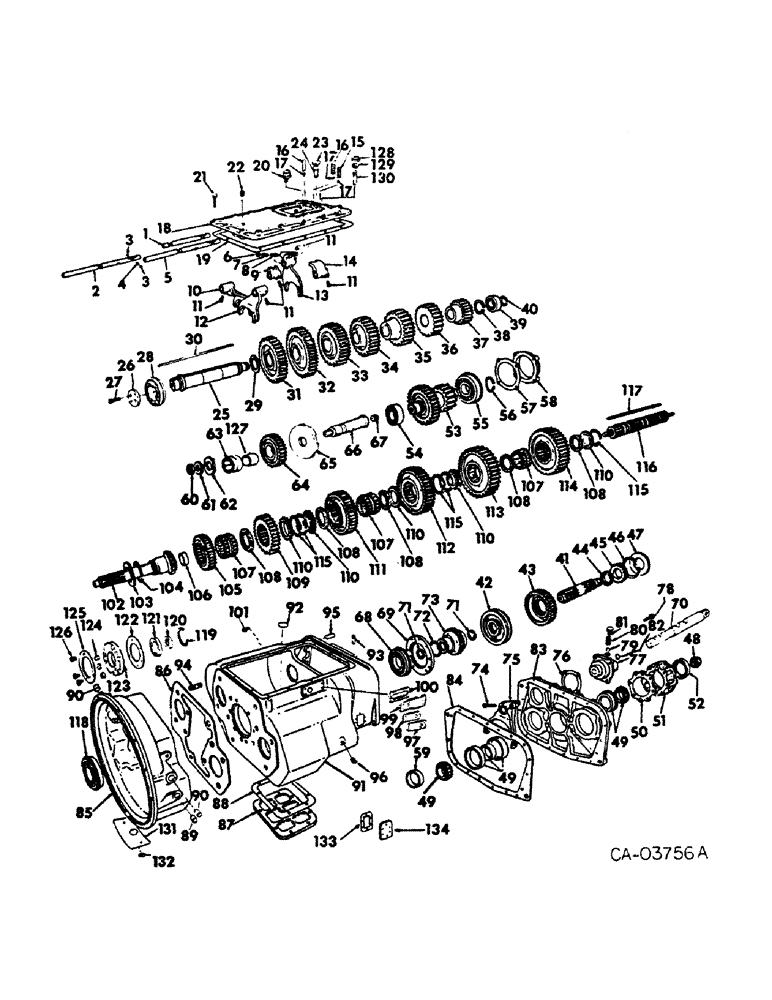

Запчасти Case IH 4386 (07-04) - DRIVE TRAIN, TRANSMISSION ASSY, CLUTCH HOUSING, INTERNAL TRANSMISSION CONTROLS (04) - Drive Train

69142C93

ASSEMBLY

TRANSMISSION ASSY, 4366 tractors, Consists of all reference numbers below and gear shift lever housing, transmission oil pump and oil pump hoses

1шт.

129247C92

CASE

TRANSMISSION ASSY, 4386 tractors, Consists of all reference numbers below and gear shift lever housing

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

12шт.

1

292742C2

BAR

first and rev speed shift

1шт.

2

292743C1

BAR

second and third speed shift

1шт.

3

16024R1

BALL

3/4 cr-stl shift bar interlock

2шт.

4

41052V

PIN, shift bar interlock

1шт.

5

292744C1

BAR

fourth and fifth speed shift

1шт.

6

697426R1

PLUG

reverse stop plunger spring

1шт.

7

87919H

SPRING

reverse stop plunger

1шт.

8

972561R1

PLUNGER

reverse stop

1шт.

9

292748C1

BLOCK

second and third speed shift

1шт.

10

349842C1

SHIFTER FORK

FORK, second and third speed shift

1шт.

11

44042H

SCREW

shift fork lock

5шт.

12

349843C1

SHIFTER FORK

FORK, fourth and fifth speed shift

1шт.

13

349841C1

FORK

first and rev. speed shift

1шт.

14

292749C1

BLOCK

fourth and fifth speed shift

1шт.

15

94317H

SPRING

fourth and fifth speed shift bar

1шт.

16

66286H

VALVE SPRING

SPRING, first, second and rev. shift bar

2шт.

17

16016R1

BALL

1/2 cr-stl shift bar

3шт.

18

1257923C1

HOUSING, shift bar, Replaces 69121C1

1шт.

144043

ADAPTER,3/8" NPT Male x 1/4" NPT Fem

3/8 to 1/4 pln out/h/hd pipe

1шт.

19

292751C1

GASKET

shift brg hsg

1шт.

20

321364C91

BREATHER

shift bar hsg

1шт.

21

60001R91

BOLT (SPREADER)

BOLT W/LOCKWASHER

16шт.

22

444578

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF, Brass

PLUG, 1/4-18 brs auto. sq-hd pipe shift bar hsg

1шт.

23

69122C1

GASKET

reverse switch plug

1шт.

24

373763C1

AXLE PIN

PIN, switch actuating

1шт.

25

292733C1

SHAFT

COUNTERSHAFT, main

2шт.

26

448788C1

RETAINER, countershaft brg

2шт.

27

60229R1

BOLT (SPREADER)

BOLT, brg retainer

4шт.

28

292828C91

BEARING

ASSY, countershaft ball

2шт.

29

292737C1

WASHER

main countershaft gear thrust

2шт.

30

407760C1

KEY

countershaft gear

2шт.

31

292734C1

GEAR, main countershaft drive, 40T

2шт.

32

292736C1

GEAR

countershaft PTO left, 47T

1шт.

32

292740C1

GEAR

countershaft PTO right, 45T

1шт.

33

292732C1

GEAR

countershaft fourth speed, 37T

2шт.

34

292731C1

GEAR

countershaft third speed, 33T

2шт.

35

292730C1

GEAR, countershaft second speed, 29T

2шт.

36

292729C1

GEAR WHEEL

GEAR, countershaft first speed, 25T

2шт.

37

292735C1

GEAR

countershaft reverse, 22T

2шт.

38

53601H

RING

reverse gear snap

2шт.

39

292819C91

ROLLER BEARING,1.5748" ID x 3.5433" OD x 0.9055"

ASSY, countershaft rear roller

2шт.

40

555570R1

SNAP RING

RING, countershaft brg snap

2шт.

41

69128C1

SHAFT

MAINSHAFT, auxiliary

1шт.

42

292780C2

COUPLING, BREAK AWAY

CLUTCH, hi-low range sliding

1шт.

43

292785C1

GEAR WHEEL

GEAR, auxiliary mainshaft reduction

1шт.

44

292788C1

WASHER

aux. mainshaft gear

1шт.

45

292787C1

SPACER

aux. mainshaft gear

1шт.

46

327361R1

RING

reduction gear snap

1шт.

47

292786C1

WASHER

aux. mainshaft gear

1шт.

48

19858R1

NUT

2-16 nylon insert

1шт.

49

381100C91

BEARING ASSY,2.5005" ID x 4.3317" OD x 2.7152"

ASSY, aux. mainshaft roller

1шт.

50

349852C1

GASKET

aux. mainshaft brg retainer

1шт.

51

308642C21

KIT

aux. mainshaft brg, retainer, Replaces 308642C1

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 type 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

26325R1

BOLT, 3/8 x 2-3/4 phc p/t type 8

1шт.

442540C1

WASHER, brg retainer bolt

1шт.

69577C1

PLUG

speedometer opening

1шт.

52

292807C91

OIL SEAL

retainer oil

1шт.

53

435214C1

SHAFT

COUNTERSHAFT AUXILIARY, 4386 tractors, Serial Range: -1508

2шт.

53

435214C1

SHAFT

COUNTERSHAFT AUXILIARY, For 4366 tractors w/transmission 69142C92

2шт.

53

138894C1

COUNTERSHAFT

COUNTERSHAFT AUXILIARY, 4386 tractors, Start Serial: 1509

1шт.

53

138894C1

COUNTERSHAFT

COUNTERSHAFT AUXILIARY, For 4366 tractors w/transmission 69142C93

1шт.

54

972848R91

BEARING ASSY,1.378" ID x 3.1496" OD x 0.8268"

ASSY, auxiliary, countershaft front roller

2шт.

55

ST359

BEARING ASSY

auxiliary, countershaft rear ball

2шт.

56

327068R1

RING, SNAP

RING, rear brg snap

2шт.

57

443439C1

GASKET

rear brg cover

2шт.

58

422166C1

COVER

aux. countershaft rear brg

2шт.

60000R91

BOLT

W/LOCKWASHER

8шт.

59

288869C1

SPACER

REPLACEMENT, speedometer gear

1шт.

60

19263R1

LOCK NUT,Hex, 5/8" - 18

NUT, 5/8-18 nylon insert reverse idler shaft

2шт.

61

292805C1

WASHER

reverse idler shaft

2шт.

62

292804C1

THRUST WASHER

reverse idler gear thrust

2шт.

63

299325C91

BEARING ASSY

ASSY

2шт.

64

292802C1

GEAR

reverse idler, 27T

2шт.

65

401570C1

OIL SEAL

WASHER, reverse idler cup

2шт.

66

349851C2

SHAFT, reverse idler

2шт.

67

77156H

PLUG

shaft

2шт.

68

292829C91

BEARING

ASSY, auxiliary drive gear

1шт.

69

292772C1

RETAINER

mainshaft rear brg, 4366 tractor only

1шт.

10959D

BOLT, brg retainer

6шт.

70

69129C1

BAR

range shift

1шт.

71

327068R1

RING, SNAP

RING, auxiliary drive gear snap

2шт.

72

327103R1

RING

rear brg snap

1шт.

73

435217C1

GEAR WHEEL

GEAR, auxiliary main drive, 28T, 4386 tractors, Serial Range: -1508

1шт.

73

435217C1

GEAR WHEEL

GEAR, auxiliary main drive, 28T, For 4366 tractors w/transmission 69142C92

1шт.

73

138893C1

GEAR

aux main drive, 28T, 4386 tractors, Start Serial: 1509

1шт.

73

138893C1

GEAR

aux main drive, 28T, For 4366 tractors w/transmission 69142C92

1шт.

74

292815C1

SCREW, shift fork lock

2шт.

75

432648C1

FORK TEDDER

FORK, range shift

1шт.

76

292793C1

GASKET

shift bar hsg

1шт.

77

69124C1

HOUSING

range shift bar

1шт.

78

60001R91

BOLT (SPREADER)

BOLT W/LOCKWASHER

4шт.

79

16016R1

BALL

1/2 cr-stl range shift bar

2шт.

80

66286H

VALVE SPRING

SPRING, range shift bar

2шт.

81

69135C1

PLUG

shift bar spring

2шт.

82

546283R1

WIPER SEAL

range shift bar oil

1шт.

83

138891C2

COVER

trans hsg rear, Replaces 69123C1

1шт.

181120

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 phc hex-hd cap

15шт.

181126

BOLT,Hex, 3/8"-16 x 2", G5

3/8 x 2 phc type 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

84

292792C1

GASKET

trans hsg rear cover

1шт.

85

69143C91

HOUSING ASSY.

HOUSING ASSY, clutch, Consists of ref. nos. 89 and 90

1шт.

181175

HANDLE

SCREW, 1/2-13 x 3-1/2 phc hex-hd cap

2шт.

181165

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 phc hex-hd cap

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

86

292806C1

GASKET

clutch hsg

1шт.

87

430359C1

COVER, PTO opening

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16-14 x 1 znd hex-hd cap

8шт.

88

430360C1

GASKET

PTO opening cover

1шт.

89

270730C1

BUSHING

clutch release shaft

1шт.

90

268339C1

BUSHING

clutch release fork

2шт.

444687

PLUG,Hex Soc, 1/8"-27

Pipe Hex Soc, 1/8"-27

1шт.

91

292728C11

BOX

CASE ASSY, transmission, Includes ref. no. 92

1шт.

75454H

SCREW, 7-19 x 5/16 self tap, serial no. plate

1шт.

92

321954C1

MAGNET

transmission case

3шт.

93

94322H

STUD

rear mounting

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

425-1110

NUT,5/8"-18, G5

5/8-18 znd hex.

2шт.

94

190942R1

STUD

clutch hsg

6шт.

223371R1

WASHER, clutch hsg stud

6шт.

19830R1

LOCK NUT,5/8"-18, GB

NUT, 5/8-18 znd nylon insert

6шт.

95

292811C1

AXLE PIN

PIN, trans hsg rear dowel

2шт.

96

20953R1

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG, 1-1/4-11-1/2 auto. sq-hd pipe fill level

1шт.

97

69147C1

LARGE PLATE

PLATE, shift valve

1шт.

181061

SHEET

1/4 x 5/8 phc type 5

4шт.

115109

WASHER,1/4"

1/4"

4шт.

98

398961C1

GASKET

shift valve plate

1шт.

99

298906C1

PLATE, shift valve adapter

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 x 7/8 hex-hd cap

2шт.

115109

WASHER,1/4"

1/4"

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

100

292727C1

GASKET

valve adapter plate

1шт.

101

NOT USED IN THIS APPLICATION

1шт.

102

71428C91

SHAFT ASSY.

SHAFT ASSY, main drive, with bushing, 422135C1

1шт.

103

292755C1

SPACER

main drive gear

1шт.

104

292752C1

RING

mainshaft gear snap

1шт.

105

292753C1

GEAR WHEEL

GEAR, drive, 28T

1шт.

106

422135C1

BUSHING

main drive gear

1шт.

107

381621C1

GEAR

mainshaft sliding

3шт.

108

292758C1

WASHER

mainshaft first, third & reverse gear

3шт.

108

292758C1

WASHER

mainshaft second & fourth gear, .250

2шт.

108

292759C1

WASHER

mainshaft second & fourth gear, .255

2шт.

108

292760C1

WASHER

mainshaft second & fourth gear, .260

2шт.

108

292761C1

WASHER

mainshaft second & fourth gear, .265

2шт.

108

292762C1

WASHER

mainshaft second & fourth gear, .270

2шт.

108

292763C1

WASHER

mainshaft second & fourth gear, .275

2шт.

109

292766C1

GEAR WHEEL

GEAR, mainshaft fourth speed, 32T

1шт.

110

292757C1

SPACER

mainshaft

5шт.

111

292767C1

GEAR WHEEL

GEAR, mainshaft third speed, 36T

1шт.

112

292771C1

GEAR WHEEL

GEAR, mainshaft second speed, 40T

1шт.

113

292770C1

GEAR WHEEL

GEAR, mainshaft first speed, 44T

1шт.

114

292768C2

GEAR WHEEL

GEAR, mainshaft reverse, 42T

1шт.

115

292752C1

RING

mainshaft gear snap

5шт.

116

422140C11

SHAFT

ASSY, main, Includes pin 17172R1

1шт.

17172R1

LOCK PIN,1/8" x 7/16", Slotted

Pin, 1/8" x 7/16", Slotted

1шт.

117

422141C2

KEY, IGNITION

KEY, mainshaft gear washer

1шт.

118

292827C91

BEARING

ASSY, mainshaft drive gear ball

1шт.

119

357194R1

RING

mainshaft brg snap

1шт.

120

69126C1

SLEEVE CYLINDER

SLEEVE, drive shaft wear

1шт.

121

69139C1

OIL SEAL

front oil

1шт.

122

292775C1

GASKET

brg retainer

1шт.

123

69127C1

RETAINER, drive gear brg, 4386 tractors, Serial Range: -1508

1шт.

123

69127C1

RETAINER, drive gear brg, For 4366 tractors w/transmission 69142C92

1шт.

123

138892C1

RETAINER

drive gear bearing, 4386 tractors, Start Serial: 1509

1шт.

123

138892C1

RETAINER

drive gear bearing, For 4366 tractors w/transmission 69142C93

1шт.

60001R91

BOLT (SPREADER)

BOLT W/LOCKWASHER

6шт.

124

422701C1

SPRING

brake plate, 4386 tractors, Serial Range: -1508

3шт.

124

422701C1

SPRING

brake plate, For 4366 tractors w/transmission 69142C92

3шт.

125

422698C1

LARGE PLATE

PLATE, trans. brake, 4386 tractors, Serial Range: -1508

1шт.

125

422698C1

LARGE PLATE

PLATE, trans. brake, For 4366 tractors w/transmission 69142C92

1шт.

181420R1

SCREW,Hex, 3/8" - 16 x 1", w/ Nylon Pellet

BOLT, 3/8 x 1 n/p type 5

3шт.

126

422702C1

SLEEVE

brake plate spring, 4386 tractors, Serial Range: -1508

1шт.

126

422702C1

SLEEVE

brake plate spring, For 4366 tractors w/transmission 69142C92

1шт.

127

299326C1

BEARING ASSY

ASSY

2шт.

128

144419H

LOCK NUT,3/8"-24, GB

NUT, 3/8-24 cad nylon insert, shift lever hsg

4шт.

129

324031R1

WASHER

shift lever hsg

4шт.

130

230043R1

STUD, shift lever hsg

4шт.

131

132972C1

COVER

clutch hsg hand hole

1шт.

113859

BOLT (SPREADER),Rd Hd, 5/16" - 18 x 1/2"

SCREW, 5/16 x 1/2 pln r/hds mach

2шт.

69917C1

GASKET

hand hole cover

1шт.

132

69918C1

GROMMET

hand hole cover, Not part of trans assy

1шт.

133

10705V

GASKET

oil pump cover, 4386 tractors only

1шт.

134

13156H

COVER

lub pump opening, 4386 tractors only

1шт.

181420R1

SCREW,Hex, 3/8" - 16 x 1", w/ Nylon Pellet

3/8-16 x 1 hex-hd cap with nylon pellet

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

444588

PLUG,Sq Hd, 1/2"-14 NPTF

1/2-14 auto sq-hd pipe, trans front sump

1шт.

16845R1

PLUG,Sq Hd, 3/4"-14 NPTF

3/4-14 auto sq-hd drain

1шт.

71900C91

PACKAGE, trans lube hose service, 4366 tractors, Consists of

1шт.

71308C1

STRAINER ASSY.

STRAINER, oil

1шт.

192470

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE

1шт.

179553

GUARD

ELBOW

1шт.

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

2шт.

132697C1

HOSE

1шт.

138105

TEE,1/2" NPT, Fem

1шт.

132696C1

HOSE

2шт.

442161C1

U-BOLT

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

115109

WASHER,1/4"

1/4"

4шт.

181126

BOLT,Hex, 3/8"-16 x 2", G5

3/8 x 2 phc type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

132700C1

BRACKET

1шт.

62760C1

ELBOW

1шт.

132699C1

HOSE

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

4шт.

132698C1

STRAP

1шт.
