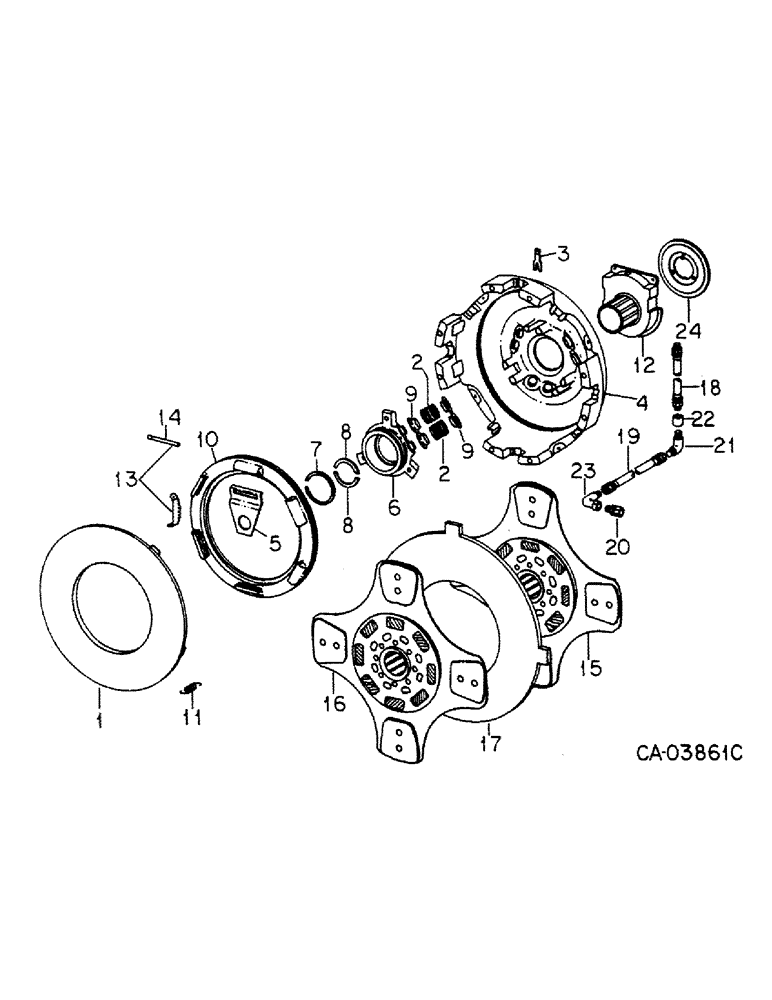

Запчасти Case IH 4386 (07-01) - DRIVE TRAIN, CLUTCH (04) - Drive Train

1257902C91

CLUTCH ASSEMBLY

SPARE PART CLUTCH ASSY, Consists of ref. no. 1 thru 12, 15, 16, 17

1шт.

1997779C1R

REMAN-CLUTCH PLATE

Remanufactured, Clutch Kit - 14 in., 1.75 in. hub diameter, AS, 3 paddle

1шт.

1997779C1C

CORE-CLUTCH PLATE

Return Part Number

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

BOLT, 3/8 x 2-1/2 type 5

8шт.

67886C1

CLUTCH ASSEMBLY

COVER ASSY, clutch pressure, Consists of ref. nos. 1 thru 12

1шт.

1

138953C1

PLATE

PLATE, clutch pressure, Replaces 399788C1

1шт.

2

399781C1

SPRING

SPRING, clutch pressure

6шт.

3

264474C1

STRIP

STRAP, lock

1шт.

28162R1

SPARE PART Heyhead machine screw 3/8 x 16T. 3/4" long with lock washer.(replaces 443608)

1шт.

4

138776C1

OIL SEAL

RING, flywheel, Replaces 69198C1

1шт.

5

134930C1

LEVER

LEVER, clutch, Replaces 443331C1

6шт.

6

132690C1

RETAINER

RETAINER, clutch release, Replaces 399786C1

1шт.

7

400495C1

RING

RING, snap

1шт.

8

697951R1

RING

RING, clutch release

2шт.

9

399782C1

PIVOT

PIVOT, clutch spring

6шт.

10

134931C1

OIL SEAL

RING, adjusting, Replaces 399783C1

1шт.

11

444809C1

VALVE SPRING

SPRING, clutch return, Replaces 399784C1

4шт.

12

69199C91

BEARING ASSY

BEARING AND SLEEVE ASSY RELEASE

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

13

443644C91

KIT

PACKAGE, pin clip and pivot pin, For use w/clutch lever, 443331C1

1шт.

14

PIN, pivot, Not serviced separately, Order 443644C91 package

1шт.

15

134888C91

DISC

DISC ASSY, front clutch driven

1шт.

16

134889C91

DISC

DISC ASSY, rear clutch driven

1шт.

17

67889C1

PLATE ASSY.

PLATE, intermediate clutch

1шт.

18

580260R91

HOSE,0.19" ID x 6.00"

Clutch Lub, Replaces 69541C1

1шт.

19

138961C1

HOSE

HOSE, clutch brg lube

1шт.

20

138962C1

FITTING

FITTING, lube adapter

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING, 1/8 ptf x/short lub, 4386 tractors, Serial Range: -2760

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 ptf short 90D lub, 4386 tractors, Start Serial: 2761

1шт.

21

9402862

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF

ELBOW, clutch brg lube

1шт.

22

192086

COUPLING,1/8" NPT, Fem

COUPLING, 1/8 zn pipe

1шт.

23

9410278

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

ELBOW, 7/16-20 37 deg hyd

1шт.

24

69883C1

DISC

DISC ASSY, brake

1шт.
